7
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.31

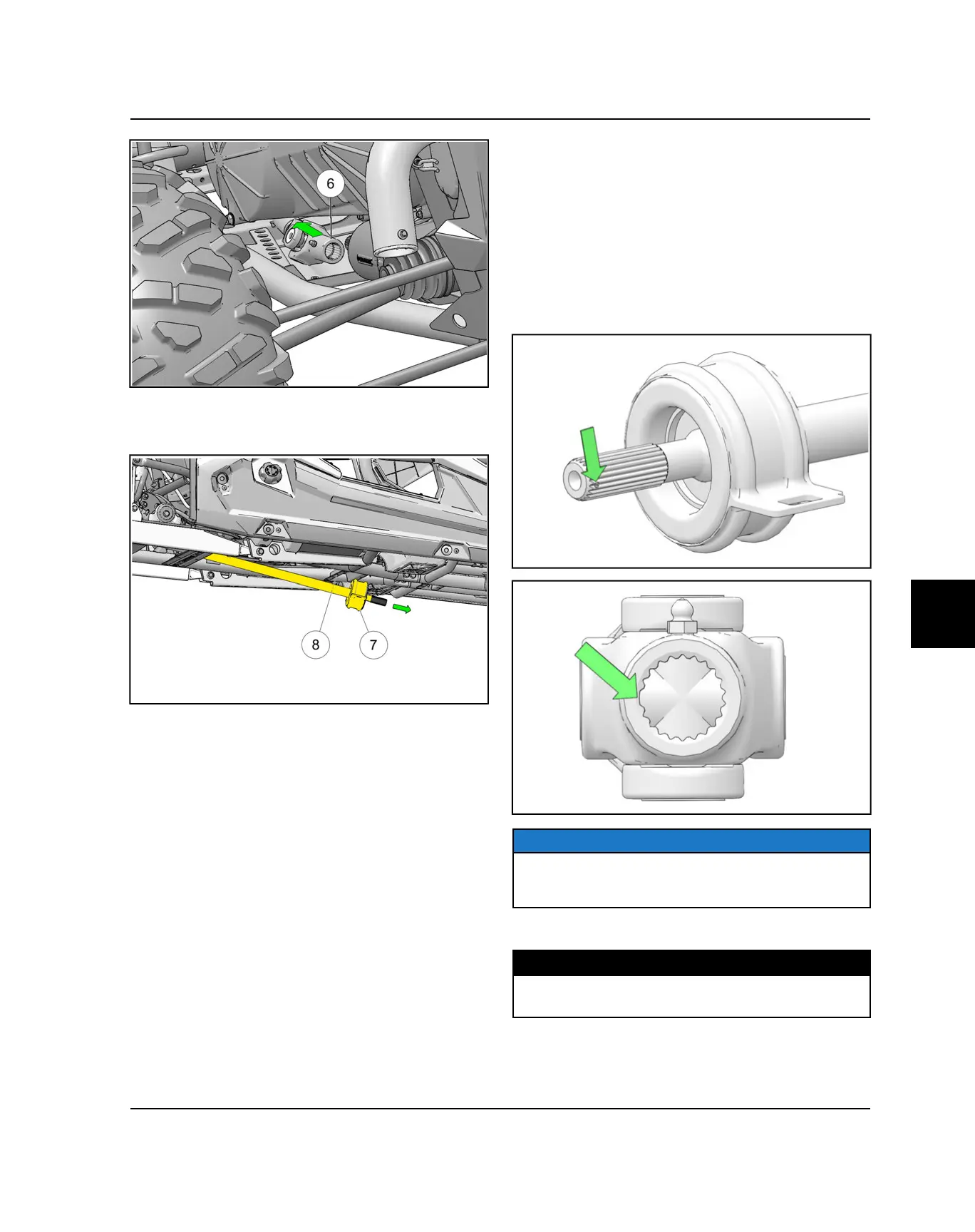

7. Slide the prop shaft to the rear of the vehicle until the
front of the shaft clears the frame support and slide
the prop shaft forward out of the vehicle.
REAR PROP SHAFT INSTALLATION XP 4
1. Reverse the appropriate Rear Prop Shaft Removal
XP 4, page 7.30 procedure to reinstall the rear prop
shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Align the front and rear prop shafts and slide them
together.
NOTE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
5. Torque the support bearing fasteners to specification.
TORQUE
Support Bearing Fasteners:
35 ft-lb (47 Nm)
FINAL DRIVE
To Next Page
