7.36
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

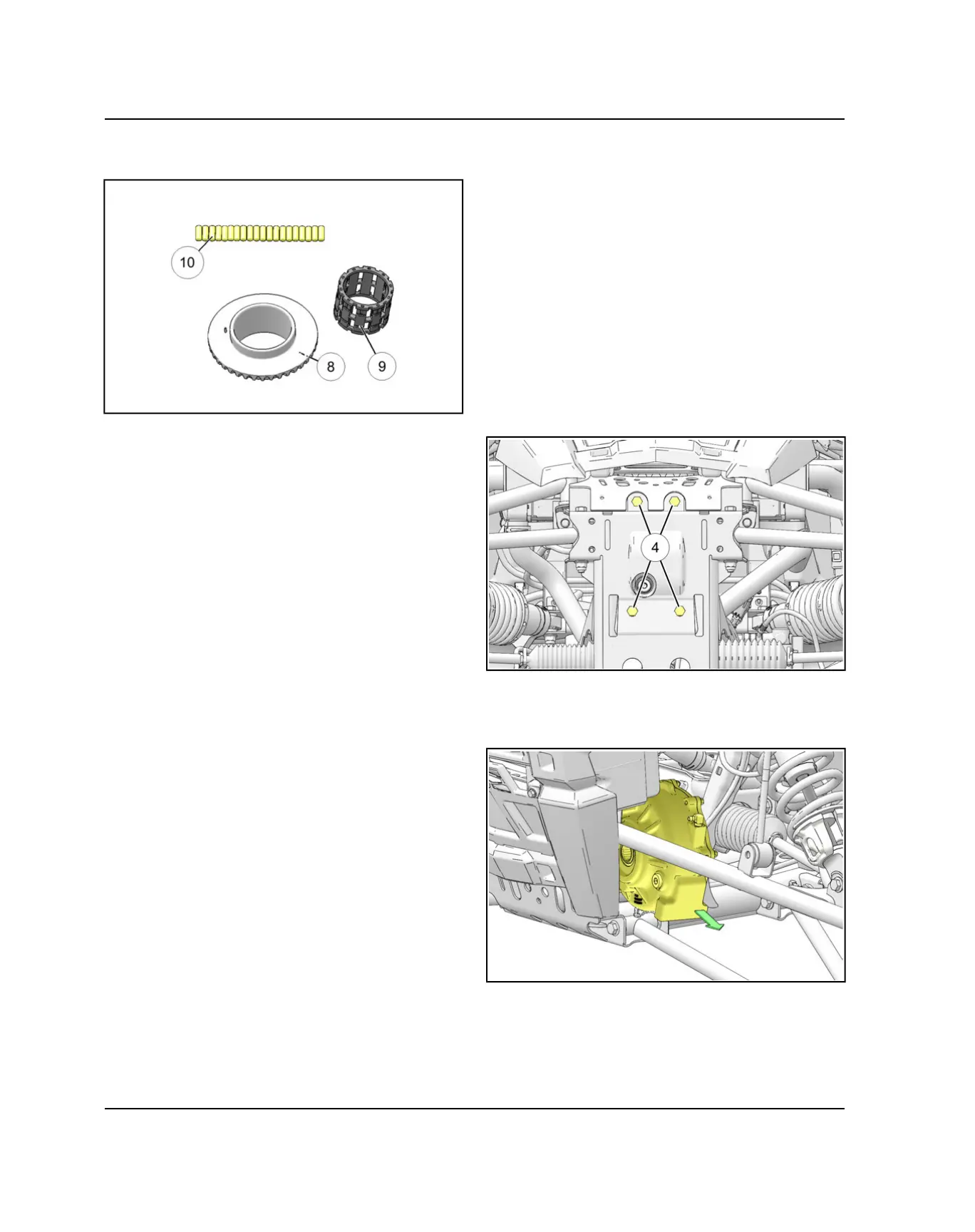

6. Inspect the roller surface on the inside of the ring
gear for gouging/rough spots.
7. Inspect the roll cage
o
assembly for cracks or
excessive wear. If damaged, replace the roll cage
assembly.
8. Inspect the rollers
a
for nicks and scratches. The
rollers must slide up, down, in and out freely within
the roll cage sliding surfaces and H-springs.
FRONT GEARCASE REMOVAL
1. Raise and support vehicle
2. Place gear selector in neutral.
3. Refer to FRONT DRIVE SHAFT, page and
remove both front drive shafts from the front
gearcase.
4. Remove the front section of the prop shaft (see
Chapter 7 – FRONT PROPSHAFT SERVICE,
page ).
5. Disconnect the wire harness for the front gearcase
and remove the harness from the retaining dart.
6. Remove the vent line from the front gearcase and
plug vent line fitting.
7. Remove the four bolts
r
securing the front gearcase
to the frame.
8. Rotate front of gearcase up so the input shaft is
facing down. Lift and remove the gearcase from the
front LH wheel well area and slide it out of the vehicle
above the upper A-arm.
FINAL DRIVE
