7
9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.7
10. Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
11. Rotate wheel and check for smooth operation.
REAR BEARING CARRIER INSPECTION /
REMOVAL
1. Elevate rear of vehicle and safely support machine
under the frame area.
CAUTION
Serious injury may result if machine tips or falls. Be
sure machine is secure before beginning this service
procedure. Wear eye protection when removing
bearings and seals.
2. Check bearings for side play by grasping the top and
bottom of the tire firmly and checking for movement.
The tire should rotate smoothly without binding or
rough spots.
3. Remove the four wheel nuts and rear wheel.

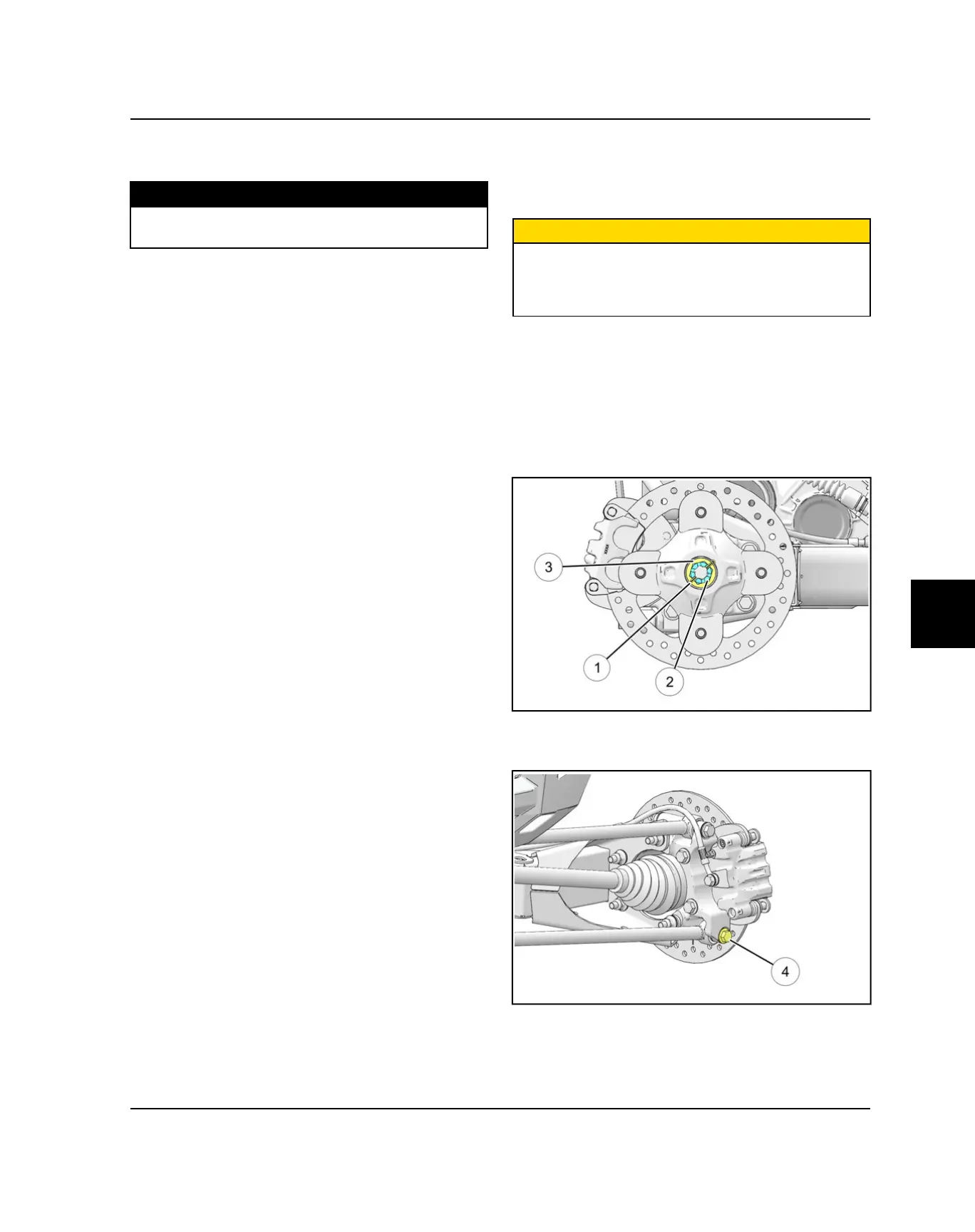

4. Remove the cotter pin
q
and loosen the rear wheel
hub castle nut
w
. Remove the nut, and two cone
washers
e
from the rear wheel hub assembly.
5. Remove the lower radius rod outer mounting bolt
r
,
nut and washer from the bearing carrier. Swing
radius rod down. Discard the nut.
FINAL DRIVE
