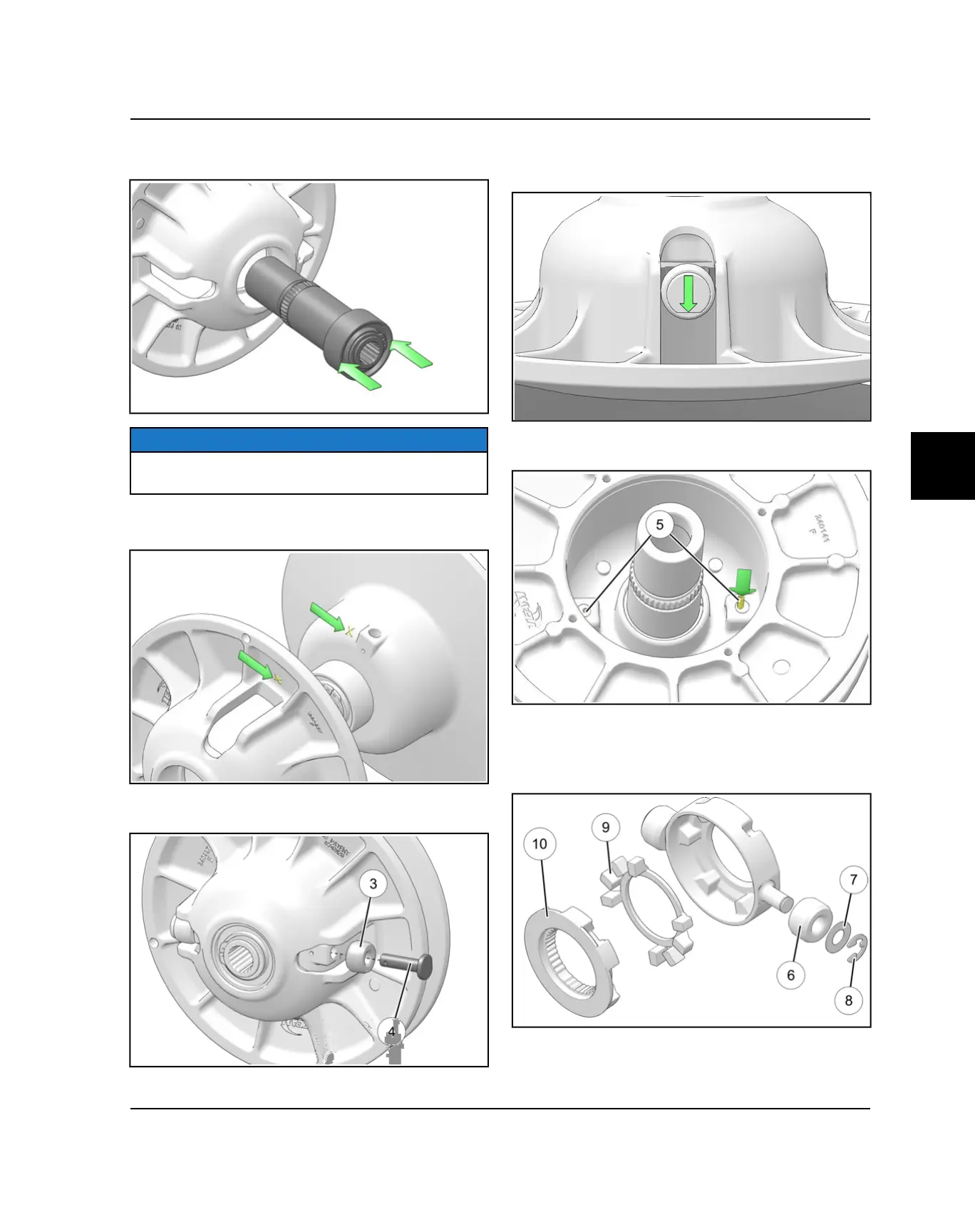

2. Install the shaft and bearing assembly into the outer
sheave using an arbor press.
NOTE
Press only on the outer race of the bearing during
installation to prevent damaging the bearing.
3. Line up the X on the moveable sheave with the X on
the stationary sheave. Put the sheaves together.
4. Install the rollers
e
onto the roller pins
r
and install
on the clutch.
5. Install the roller pin into the sheave assembly on both
sides. The flat side of the roller pin faces towards the
sheaves.
6. Install the spring pins
t
to secure the roller pins.
Install until flush with sheave surface.
7. Install the spring over the shaft.
8. Install the clutch rollers
y
onto each side of the
spider. Install the washers
u
and E-clips
i
to secure
the rollers. The rollers should spin freely.
9. Install the spider dampener
o
inside the spider and
install the inside spider plate
a
.
PVT SYSTEM
