9926816 R07 - 2014-2016 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
8.19

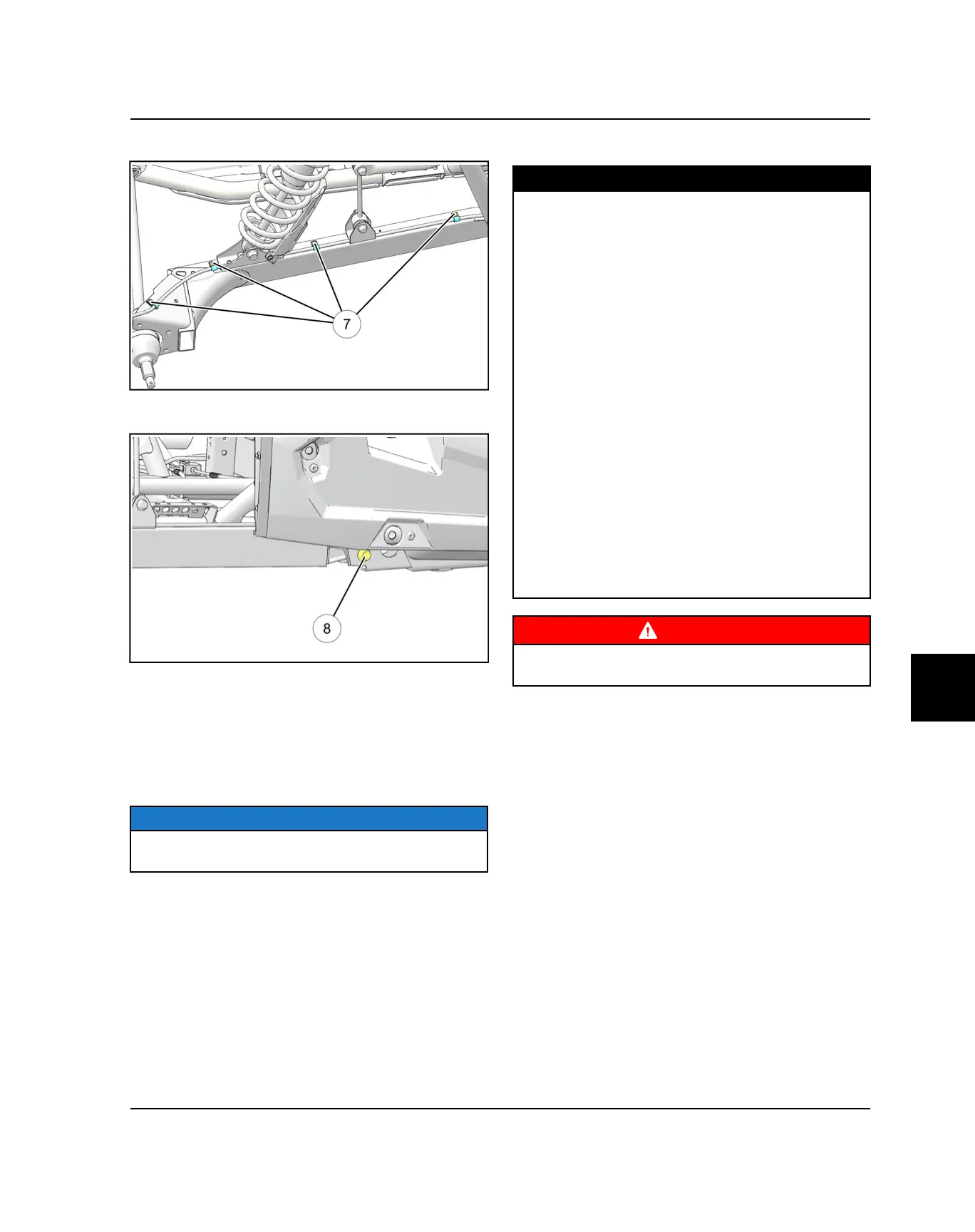

13. Remove the lower shock bolt. Discard the nut.
14. Remove the front trailing arm bolt
i
. Discard the
nut.
15. Remove trailing arm from vehicle. Visually inspect
trailing arm, bushings, o-rings and spherical bearing
for wear. If bearing requires replacement, refer to
Trailing Arm Spherical Bearing Replacement, page
8.20.
16. Replace trailing arm if physically damaged.
17. Reverse this procedure to reinstall rear trailing arm.
NOTE
Use new fastener nuts upon installation of the rear
trailing arm and bearing carrier.
18. Torque all fasteners to specification.
TORQUE
Trailing Arm to Main Frame:
(Trailing arm spherical bearing bolt)
70 ft-lb (95 Nm)
Rear Shock Mounting Bolts:
70 ft-lbs (95 Nm)
Rear Stabilizer Bar Linkage:
40 ft-lbs (54 Nm)
Radius Rod Mounting Bolts:
40 ft-lb (54 Nm)
Bearing Carrier to Trailing Arm Bolts:
42 ft-lb (54 Nm)
Rear Brake Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
Rear Wheel Hub Castle Nut:
110 ft-lbs (149 Nm)
Wheel Nuts:
120 ft-lbs (163 Nm)
WARNING
Upon rear trailing arm installation, test vehicle at low
speeds before putting into service.
STEERING / SUSPENSION
