OIL PRESSURE TEST
1. Depending on the Oil Gallery Plug type, attach either
the Oil Pressure Gauge Adapter (PU-50565) or (PU-
52492) to the Oil Pressure Gauge (PV-43531).
Oil Pressure Gauge: PV-43531
Oil Pressure Gauge Adapter: PU-50565 or PU-52492
2. Remove the seats, engine service panel, and divider
panel heat shield.

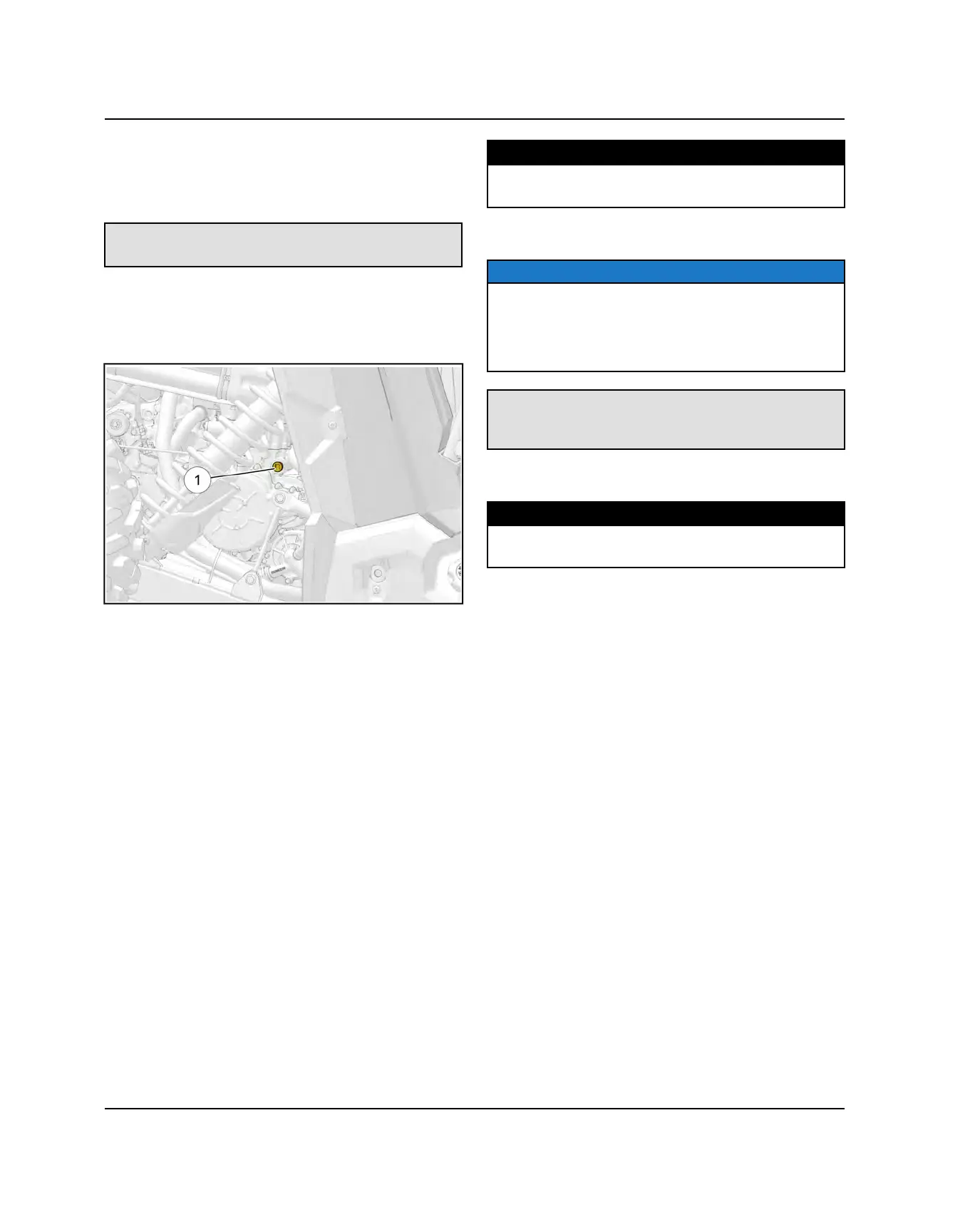

3. Clean the area around the main oil gallery plug
q
,
located in the upper crankcase on the MAG side of
the engine.
4. Remove the plug and insert the oil pressure adapter.
Torque the adapter to specification.
TORQUE
PU-50565: 16 ft-lbs (22 Nm)
PU-52492: 22 ft-lbs (30 Nm)
5. Start engine and allow it to reach operating
temperature, monitoring gauge indication.
NOTE
Test results are based on the use of the recommended
engine oil (Polaris PS-4 or PS-4 Extreme Duty) at
operating temperature, and may vary considerably if
any other oil is used or if engine is not up to
temperature.
Oil Pressure Specification (Engine Hot):
Minimum @ 1200 RPM: 10 PSI
Minimum @ 7000 RPM: 40 PSI
6. Upon assembly, torque the crankcase gallery plug to
specification.
TORQUE
Crankcase Oil Gallery Plug (M20):
22 ft-lbs (30 Nm)
