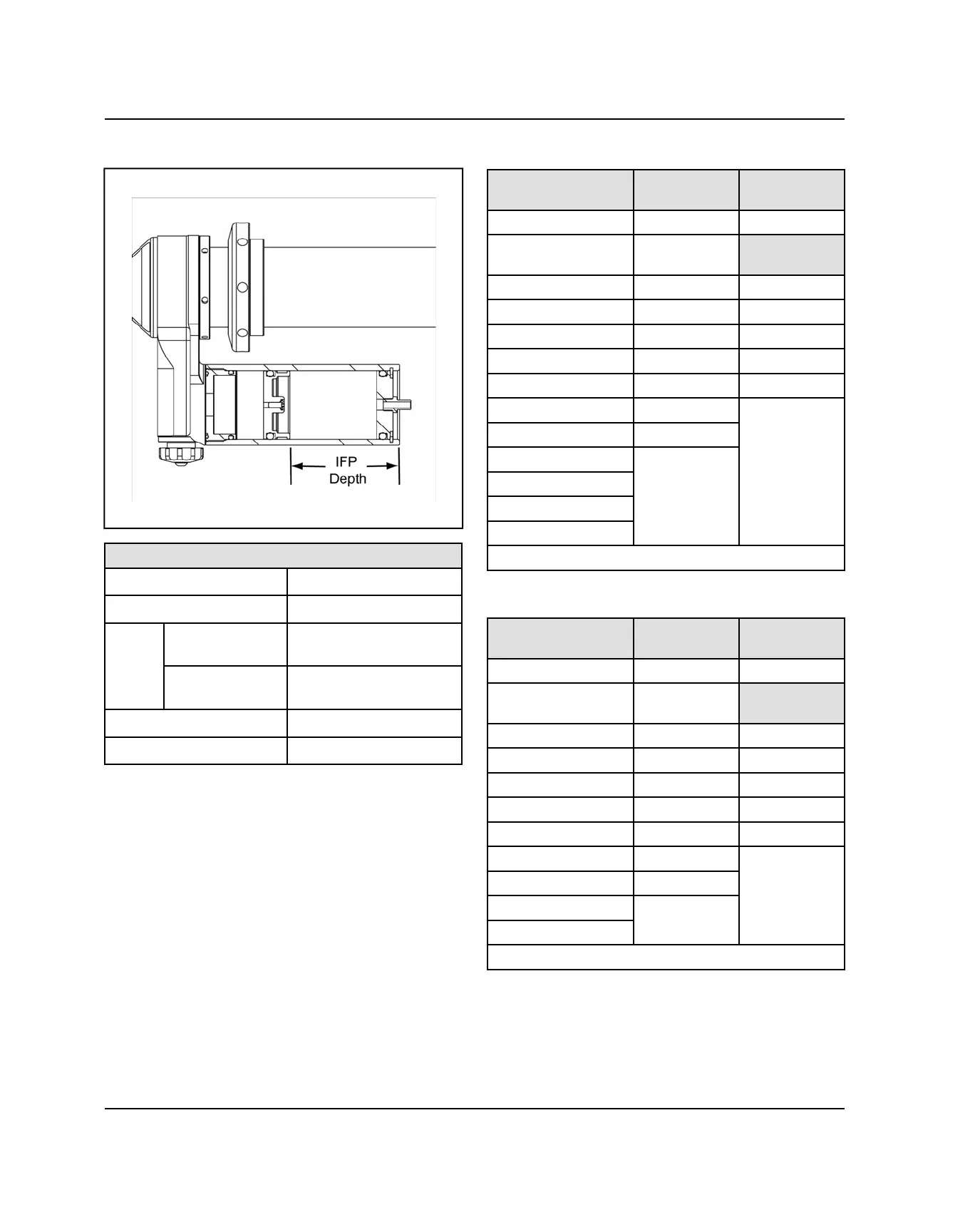

REAR SHOCK SERVICE INFORMATION
REAR SHOCK DESIGN DETAILS
Travel
12.09″ (30.71 cm)
Extended Length 34.36″ (87.27 cm)
IFP
Loca-
tion
RZR XP 1000 /
High Lifter
6.25″ (158.8 cm)
RZR XP 4 1000 /
High Lifter
7.25″ (184.15 cm)
Nitrogen Pressure 125 psi (862 kPa) +/- 5%
Gas Shock Oil P/N
2874124 (qt.)
Shock Valving RZR XP 1000 / LE
COMPRESSION REBOUND
CLICKER
ASSEMBLY
1.550 x 0.010 1.500 x 0.008 0.700 x 0.010
1.200 x 0.008 0.900 x 0.008
CLICKER
PISTON
1.550 x 0.010 1.450 x 0.008 1.000 x 0.015
1.200 x 0.008 1.300 x 0.008 1.000 x 0.015
1.550 x 0.008 1.200 x 0.008 0.900 x 0.015
1.500 x 0.010 1.100 x 0.010 0.600 x 0.015
1.450 x 0.010 1.000 x 0.010 0.600 x 0.015
1.300 x 0.010 0.900 x 0.010
1.200 x 0.010 0.750 x 0.065
1.100 x 0.012
0.900 x 0.012
0.800 x 0.012
1.500 x 0.125
No Piston Bleed Orifice
Shock Valving RZR XP4 1000
COMPRESSION REBOUND
CLICKER
ASSEMBLY
1.550 x 0.010 1.500 x 0.010 0.700 x 0.010
1.000 x 0.010 1.450 x 0.010
CLICKER
PISTON
1.550 x 0.008 1.300 x 0.010 1.000 x 0.015
1.550 x 0.008 1.200 x 0.010 1.000 x 0.015
1.550 x 0.008 1.100 x 0.010 0.900 x 0.015
1.550 x 0.008 1.000 x 0.010 0.600 x 0.015
1.550 x 0.008 0.900 x 0.010 0.600 x 0.015
1.450 x 0.010 0.800 x 0.010
1.100 x 0.012 0.750 x 0.065
1.000 x 0.012
1.500 x 0.125
No Piston Bleed Orifice
