9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7. Torque the support bearing fasteners to
specification.
TORQUE
Support Bearing Fasteners:
35 ft-lb (47 Nm)

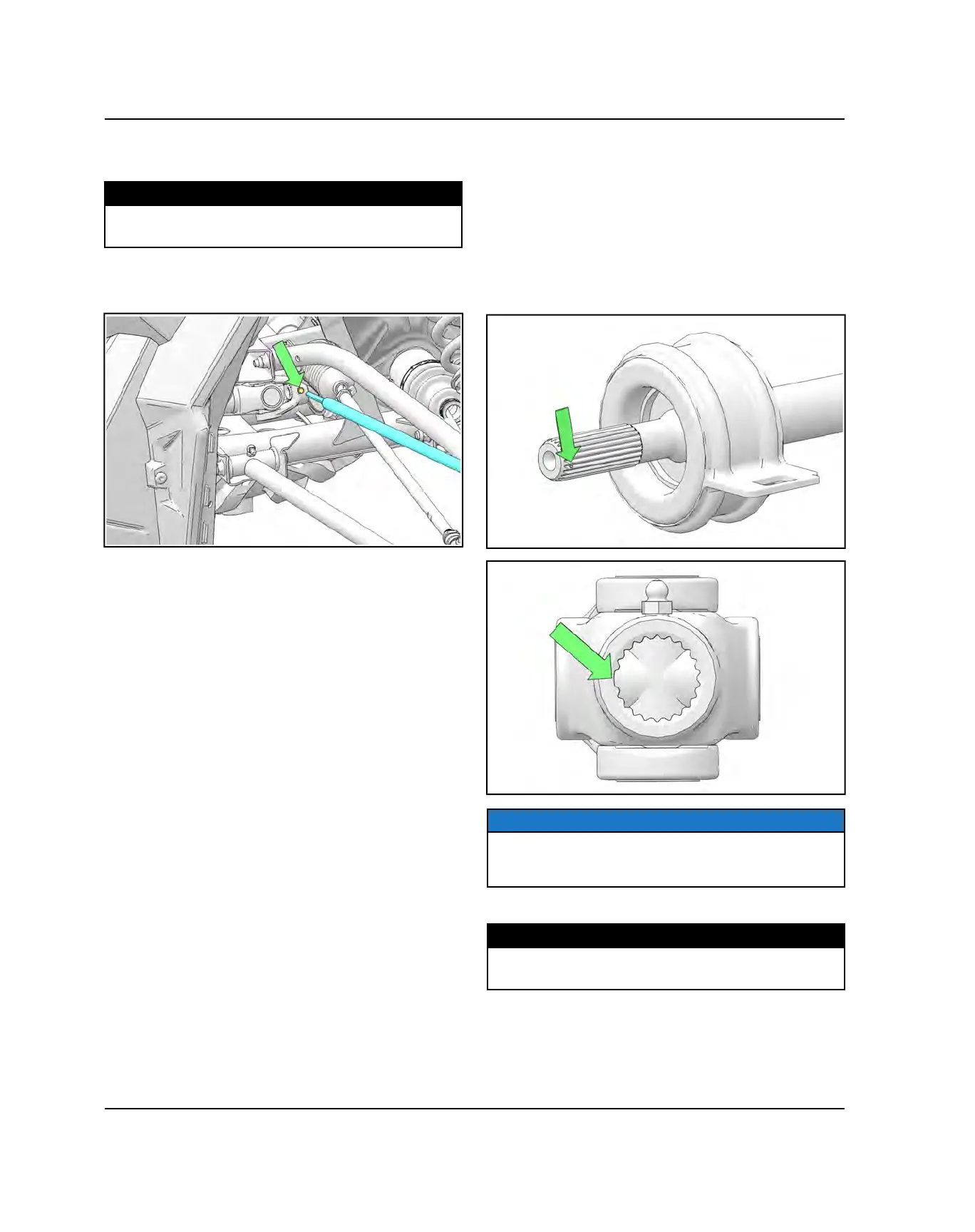

8. Align the front prop shaft paint mark with the front
gearcase input shaft mark so the pin holes align.
Install a new roll pin.
REAR PROP SHAFT INSTALLATION XP 4
1. Reverse the appropriate Rear Prop Shaft Removal
XP 4, page 7.22 procedure to reinstall the rear prop
shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Align the front and rear prop shafts and slide them
together.
NOTE
Paint marks are applied to the front and rear prop shafts
to aid shaft alignment. Reference these marks during
installation if still visible.
5. Torque the support bearing fasteners to specification.
TORQUE
Support Bearing Fasteners:
35 ft-lb (47 Nm)
FINAL DRIVE
