9.26
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

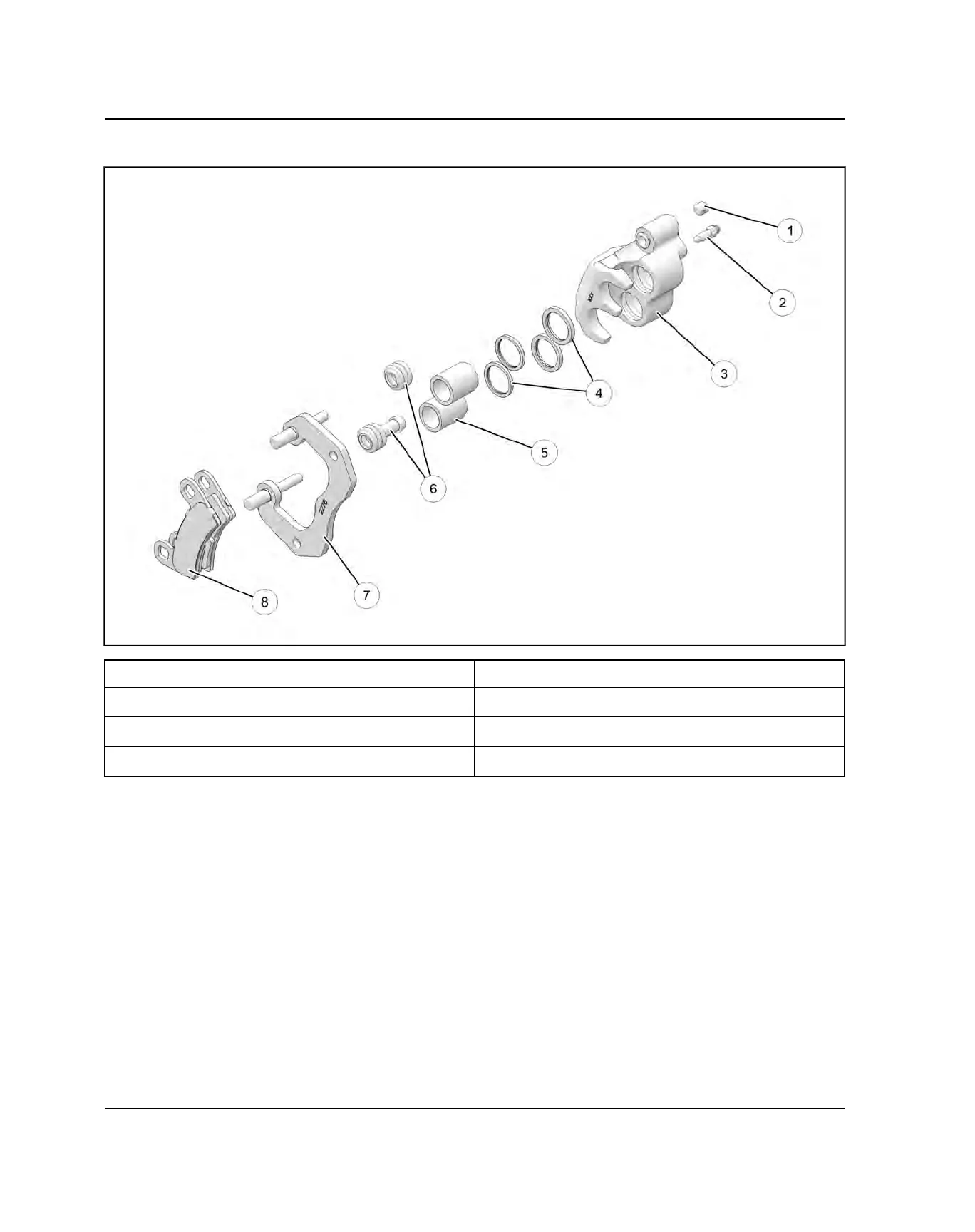

REAR CALIPER ASSEMBLY VIEW
q
Socket Set Screw
t
Pistons
w
Bleeder Screw 48 in-lb (5 Nm)
y
Boots
e
Caliper Assembly
u
Caliper Mount
r
Square O-Rings
i
Brake Pad
BRAKE SYSTEM
