9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

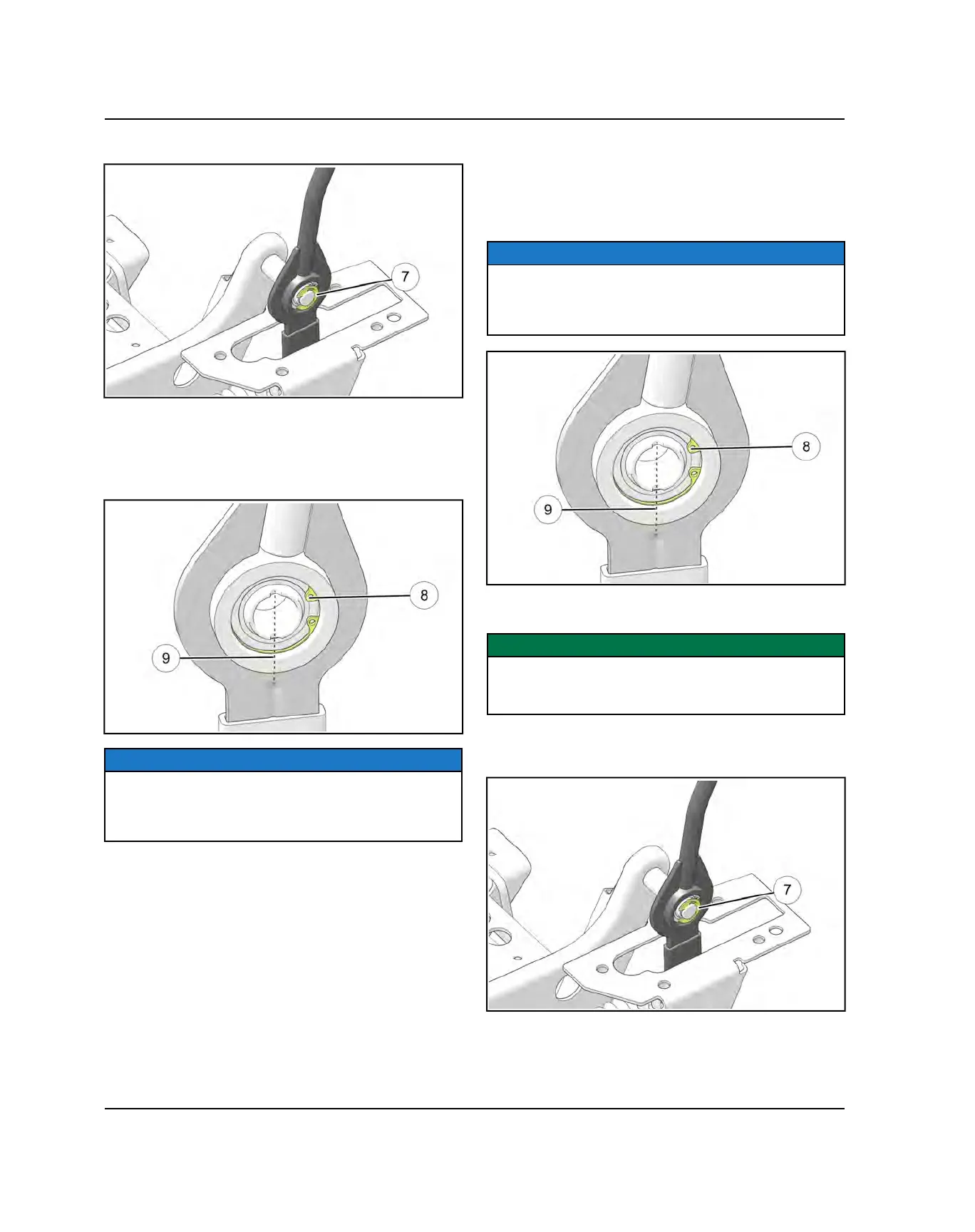

4. Remove the retaining clip
u
from the shifter.
5. Disconnect the shift cable from the shifter.
6. Remove the shifter from the vehicle.
SPHERICAL BEARING REMOVAL
1. Remove the snap ring
i
retaining the spherical
bearing.
NOTE
The spherical bearing orientation inside the shift lever is
important for proper function. Note the alignment
o
of
the marks in the spherical bearing with the marking on
the shift lever
2. Remove the spherical bearing from the shift lever.
SHIFT LEVER INSTALLATION (GOLD
METALLIC LE)
1. Add Loctite 603 on completely around the outer
surface of the spherical bearing. Install the spherical
bearing into the shift lever.
NOTE
The spherical bearing orientation inside the shift lever is
important for proper function. Note the alignment
o
of
the marks in the spherical bearing with the marking on
the shift lever
2. Once the spherical bearing marks are aligned with
the mark on the shift lever
o
, install the snap ring
i
.
IMPORTANT
After the snap ring is installed, you should be able to
move the spherical bearing with your finger tip. If the
bearing will not move, it should be replaced.
3. Install the shifter to the mounting bracket.
4. Install the retaining clip
u
securing the shift lever to
the bracket.
5. Install the shift cable to the shift lever.
TRANSMISSION
