Polaris RZR XP4 1000 2017 User Manual

3.48
9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.

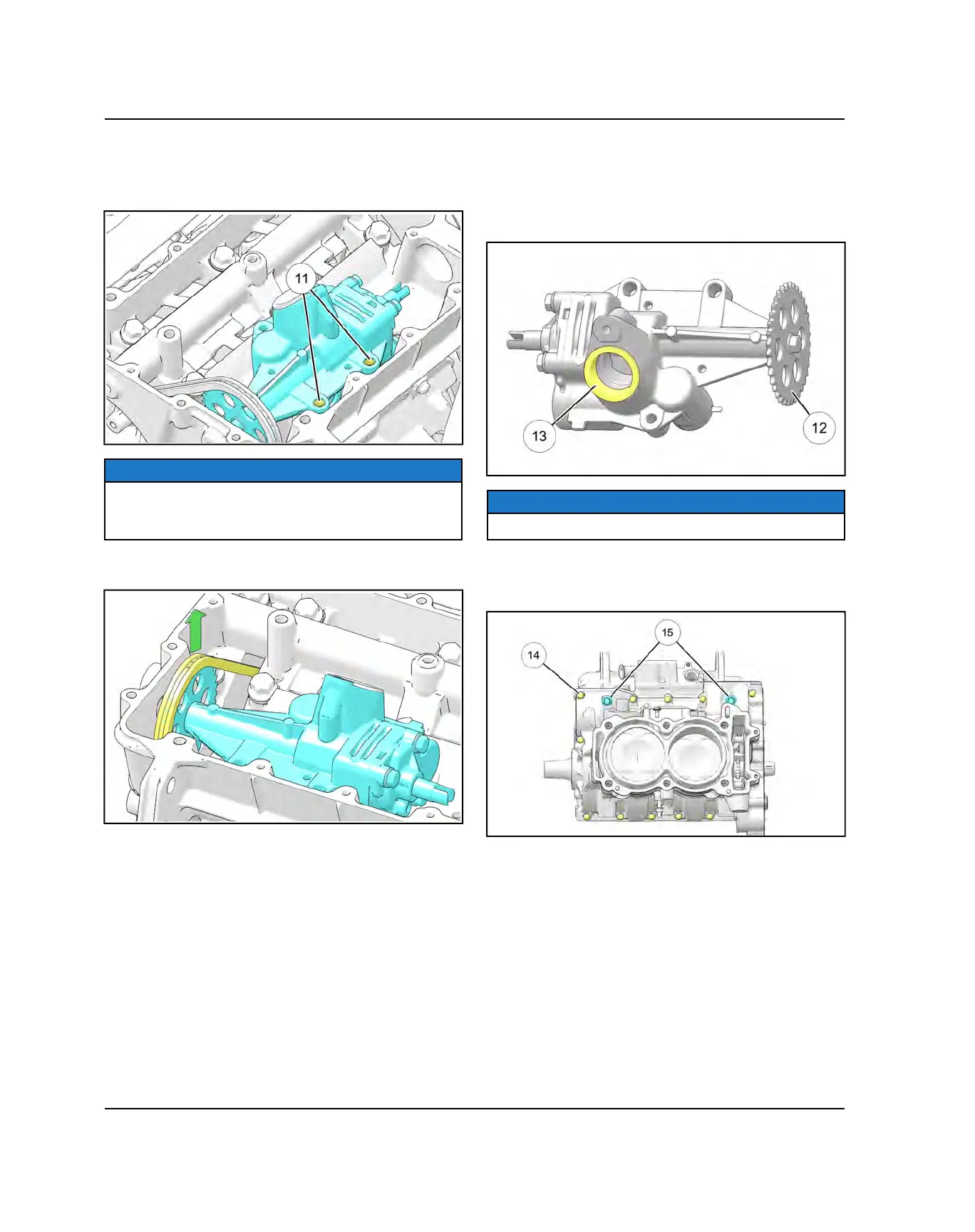

10. Use one of the oil pump retaining bolts or a pen
magnet to extract the dowel pins
s
from the oil
pump. Doing so allows for oil pump removal without
having to remove the pump drive sprocket.
NOTE
If unable to extract the dowel pins from the oil pump,
the oil pump sprocket must be removed. Access the
sprocket bolt by removing the case plug.
11. Lift the oil pump drive chain and remove the oil
pump.
12. Visually inspect the oil pump and drive sprocket
d
for wear or damage. Replace oil pump drive chain
and sprocket if worn or damaged. If any part of the oil
pump is damaged, the entire assembly must be
replaced. Replace the oil pump seal
f
during
crankcase assembly.
NOTE
Oil pump assembly is non-serviceable
13. Rotate the engine so the cylinder is facing up.
14. Remove the eleven M6
g
and two M8
h
upper
crankcase bolts.
15. Rotate the engine so the cylinder is facing down.
ENGINE / COOLING SYSTEM
