9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
7.15

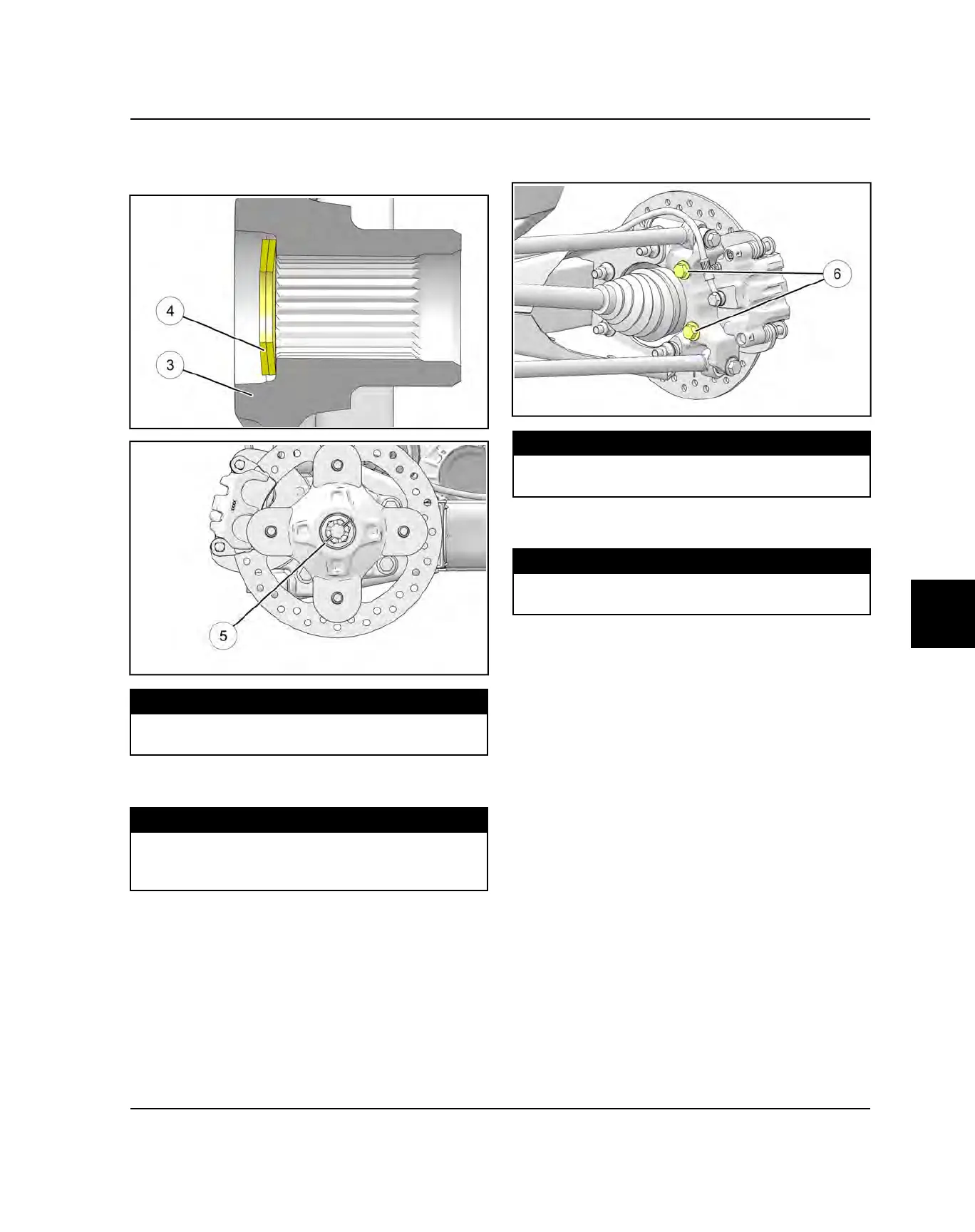

7. Install rear wheel hub assembly
e
. Install the cone
washer (s)
r
and castle nut. Torque castle nut to
specification. Install new cotter pin
t
.
TORQUE
Rear Hub Castle Nut:
180 ft-lbs (244 Nm)
8. Install the radius rod bolts, washers and new nuts.
Torque fasteners to specification.
TORQUE
Radius Rods to Bearing Carrier:
M10: 40 ft-lb (54 Nm)
M12 (outer): 50 ft-lb + 90° (68 Nm + 90°)
9. Install the rear brake caliper assembly and new bolts
y
. Torque to specification.
TORQUE
Rear Caliper Mounting Bolts:
40 ft-lbs (54 Nm)
10. Install wheel and four wheel nuts. Torque wheel nuts
to specification.
TORQUE
Wheel Nuts:
120 ft-lbs (163 Nm)
