3. RCIllOVl' Illl' rhrl'c St:n:ws holdil11! the slide
bllh:k ;:ov~'r ~nd n:mow and Jisl.'ard the
C'OV~T. Also discard any w'lsh\.~1'$ or shims
whh;h llUIY be unJ<r the cover.
4. RI.'I1lOVl· fh~ cd#l! ;:ontrol bar ;)S instructed in
the "Slide Block Replacement+> procedure,
()ilii:ard Ih~ 1.'onrroJ bar.
Replacement
I. InstaU it new edge control bar as instructed in
the "Slide Block Replacement" procedure.
InstaH a new slide block cover and secure it
with three $Crews whkh held the old one In
place.
Be sure the edge control bar shaft is
not
jammed under the rover,
3<
Install a new tab strip bar on the camera body
body and secure it with the two retaining
screws.
4. Transfer the original serial
number to the
new tab strip bar as instructed in the next
procedure.
SERIAL NUMBER TRANSFER
If it is nel"Cssary to replace the tab strip bar on
m~taJ-body cameras or the entire body assembly
on plastic-body cameras. ALWAYS TRANSFER
THE ORIGINAL SERIAL NUMBER TO THE
NEW PART. Usc white DCO,I-Dry tram.fer
symbols to t~ •.msfer the numbc-r.
REAR DOOR (BACK COVER) REPLACEMENT
RemoV21
1, Remove the timer ussembly {if prl.'Scnt).
Refer to procedure "Electronic Timer
Replacement
n
or HMechanicuJ Timer
Repillcernenl.~·
Remove tne rear door from the spider by
removing the four rear door rivets using a
f)e..StaCo tooJ
with anvil Br 13S7-pan I and
head Bi 13S7.part 2. Remove the rear door
and roll latch.
Replacement
1. Position the roU latch (and electronic timer
jf applicable) in the spider and secure the
new rear door to the spider by replacing the
four rivets. Use a De-Staeo tool with anvil
B113S7-part 3 and head BJ 13S7-part 4.
2. Assemble the timer assembly (if applicable) to
the rear door.

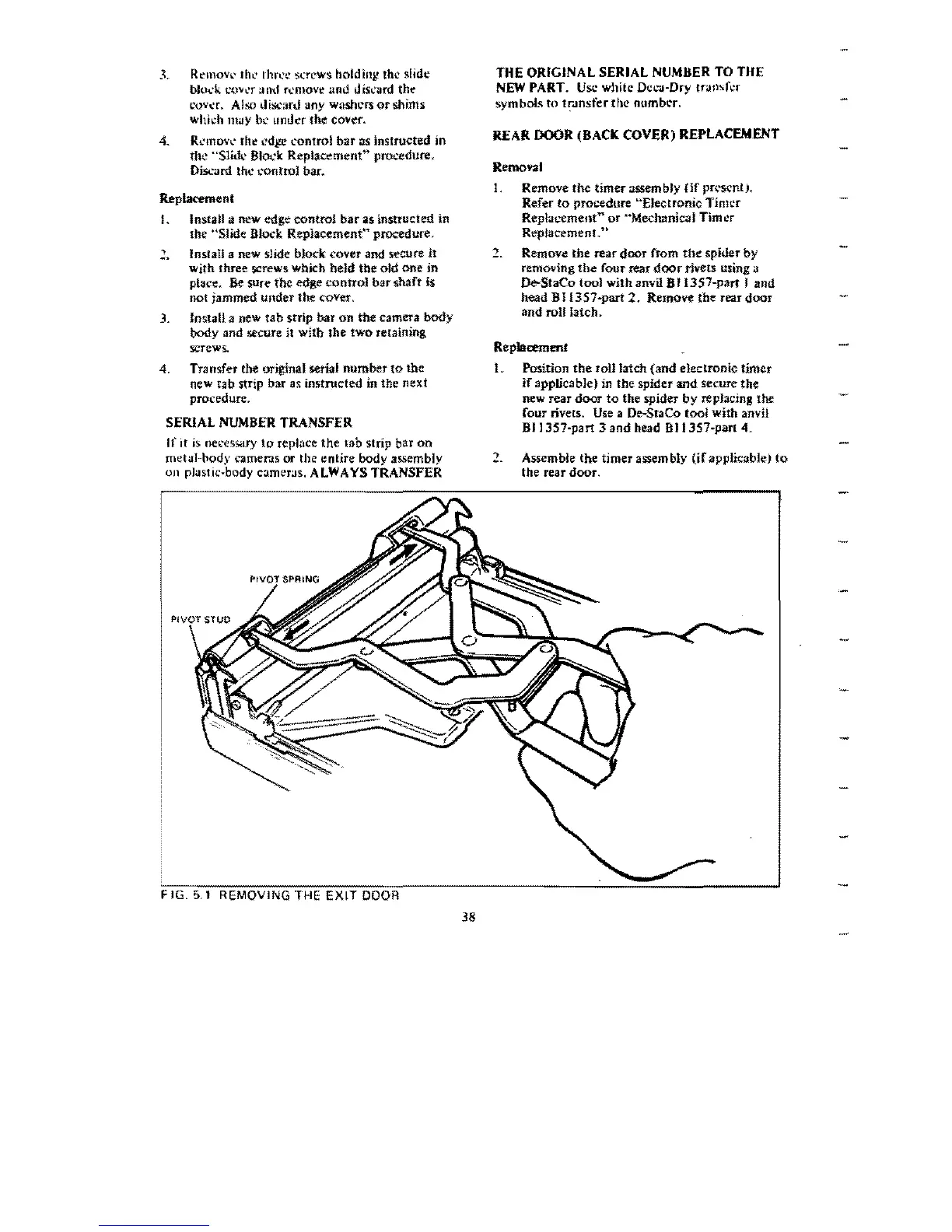

FIG. 0.1 REMOVING THE EXIT DOOR
38
