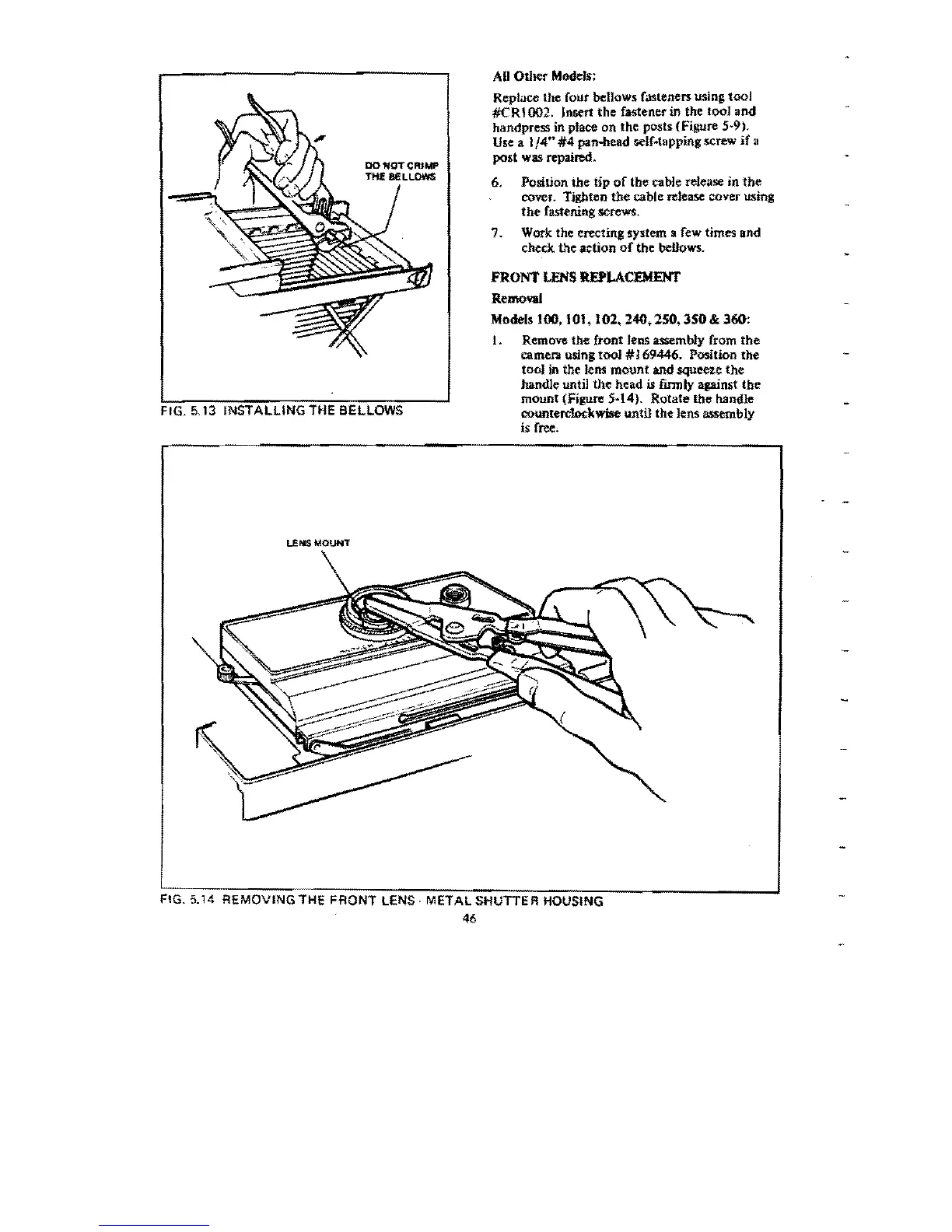

FIG. 5.13 INSTALLING THE BELLOWS
LENS MOUNT
All Otlier Models;
Replace the four bellows fasteners using tool
#CR 1002. Insert the fastener in the tooJ and
handpress in place on the posts (Figure S~9).
Use a 1/4" #4 pan-bead self4:apping screw if a
post wa<> repaired.
6. Position the tip of the t3ble release in the
rover. Tighten the cable release cover usins
the fastening screws.
7. Work the erecting system a few times and
check the ,ction of the beDows.
FRONT LENS REPLACEMENT
RemoYBI
Models 100, 101,102,240,250,350& 360;
1. Remove the front lens assembly from the
cament using tool #169446. Position the
too) in the lens mount and squeeze the
handle until the head is fmnly against the
mount (Figure 5·14). Rotate the handle
counterclockwise until
the lens assembly
is free.
F'G. 5.14 REMOVING THE FRONT LENS· METAL SHUTTER HOUSING
46
