EXIT
DOOR
REPLACEMENT
Replacemenl
RemoVal
I,
Align the exit door
in
the
framl".'
&1.11<.1
in:o;t:rI
-
the
pivot spring llnd pivot
slUd!<i.
1.
Open the fear
door.
Position tool
#169455
against the pivot
-
studs as shown
in
Figure
S~I).
Squeeze the
tool handle until
the
pivot studs pop Joose.
).
Remove the pivot studs using pliers, Save
rhe Pivot studs and
pivot
sprrng
for
reuse.
-
-
-
-
-
""

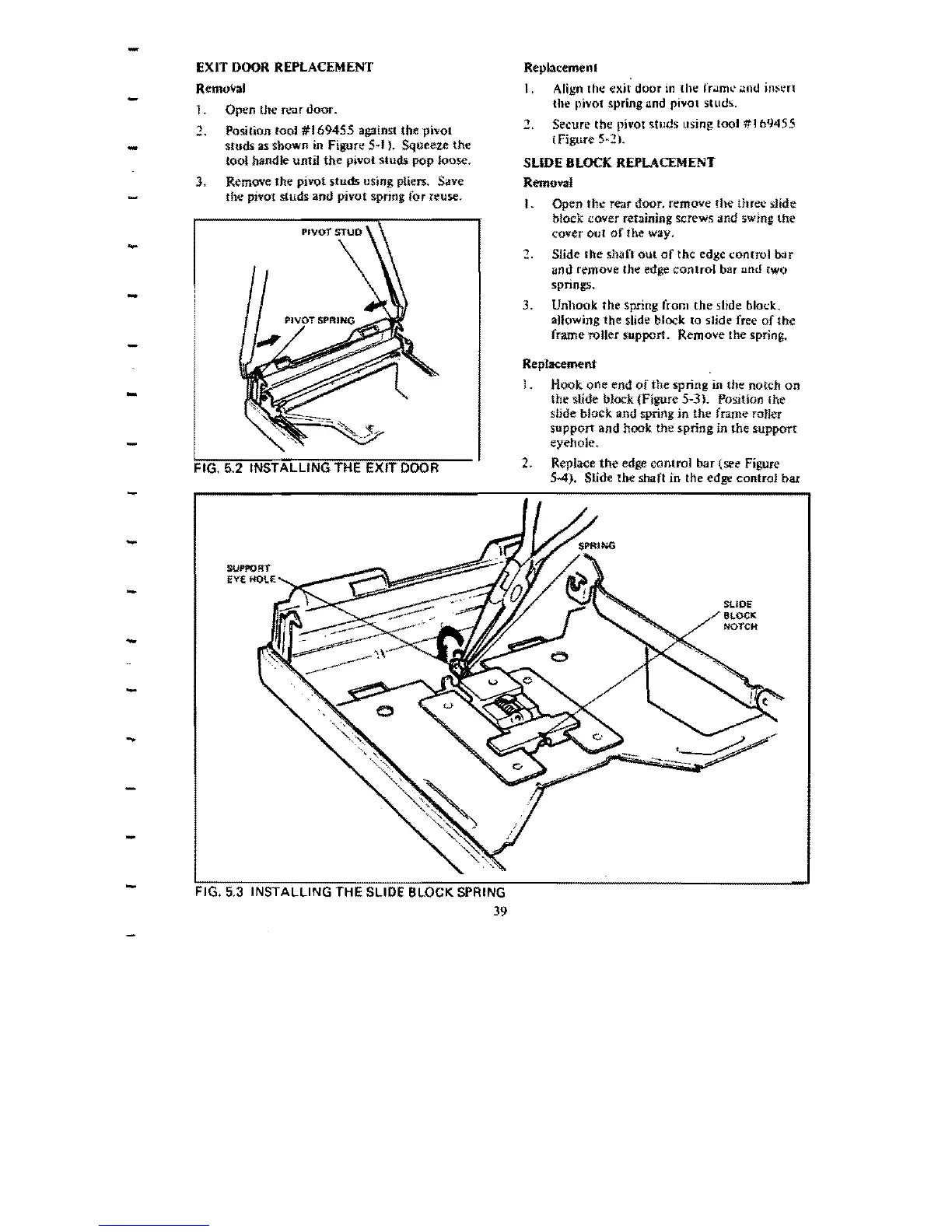

FIG.
5.2
INSTALLING
THE
EXIT
DOOR
'1
Secure the pivot stllds using tool
#169455
(Figure 5·2),
SLIDE
BLOCK
REPLACEMENT
Removal
I. Open
the
Te'dr
door, remove rhe three slide
block cover retaining screws and swing the
cover out
of
the way,
,
Slide
the
shuft
out
of
the edge
,onfrol
btlr
and remove the edge
control
bar and [WO'
spnngs.
3.
Unhook the spring from
the
slide block.
allowing
the
slide block
10
slide free
of
the
frame roller support. Remove the spring.
Replacement
l.
Hook
one
end
of
the spring in the notch
on
the slide block {FIgure 5-3). Position Ihe
slide
block and spring
in
the frarne roiler
support and hook the spring in the suppoTt
eyehole.
2. Replace
the
edge control bar (see Figure
5-4). Slide the shaft in the edge control har
-
-
-
-
-
-
-
FIG.
5.3
I
SLIOE
SLOCK.
NOTCH
39
