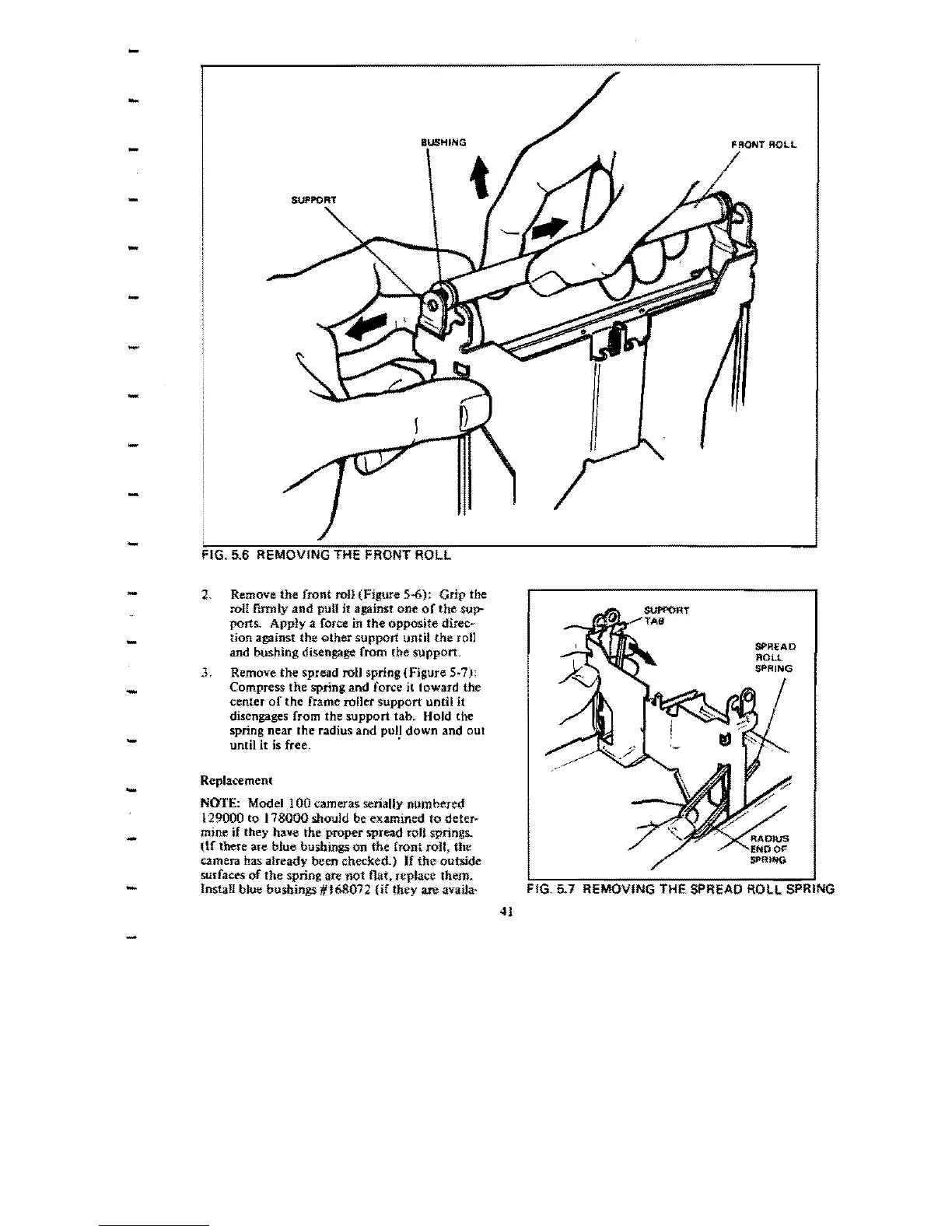

FIG. 5.6 REMOVING THE FRONT ROLL
-
2. Remove the front ron (Figure 5-6): Grip the
roH firmly and pull it against one of the sup-
ports. App)y a force in the opposite direc~
tion agajnst the Qlher support until the roll
-
and bushing disengage from the support.
3. Remove the spread roU spring (Figure 5
w
7):
Compress the spring and force it toward the
-
center of the frame roller support until it
disengages from the support tab. Hold the
-
spring near the radius and pull down and out
until it is free. '
Replacement
-
NOTE: Modell 00 cameras serially numbered
129000 to 178000 should be examined to deter~
mine if they have the proper spread roll springs.
-
(if tbere are blue bushings on the front ron, the
camera has already been checked.) If the outside
surfaces of the spring are not flat. replace them.
-
Instan blue bushings 11168072 {if they are availa·
41
SUPPORT
FRONT ROl.l.
FIG. 5.7 REMOVING THE SPREAD ROLL SPRING
