Pyronix Matrix 832 Installation Manual

Matrix 424, 832, 832+ Installation Manual
Page 14 RINS918-6

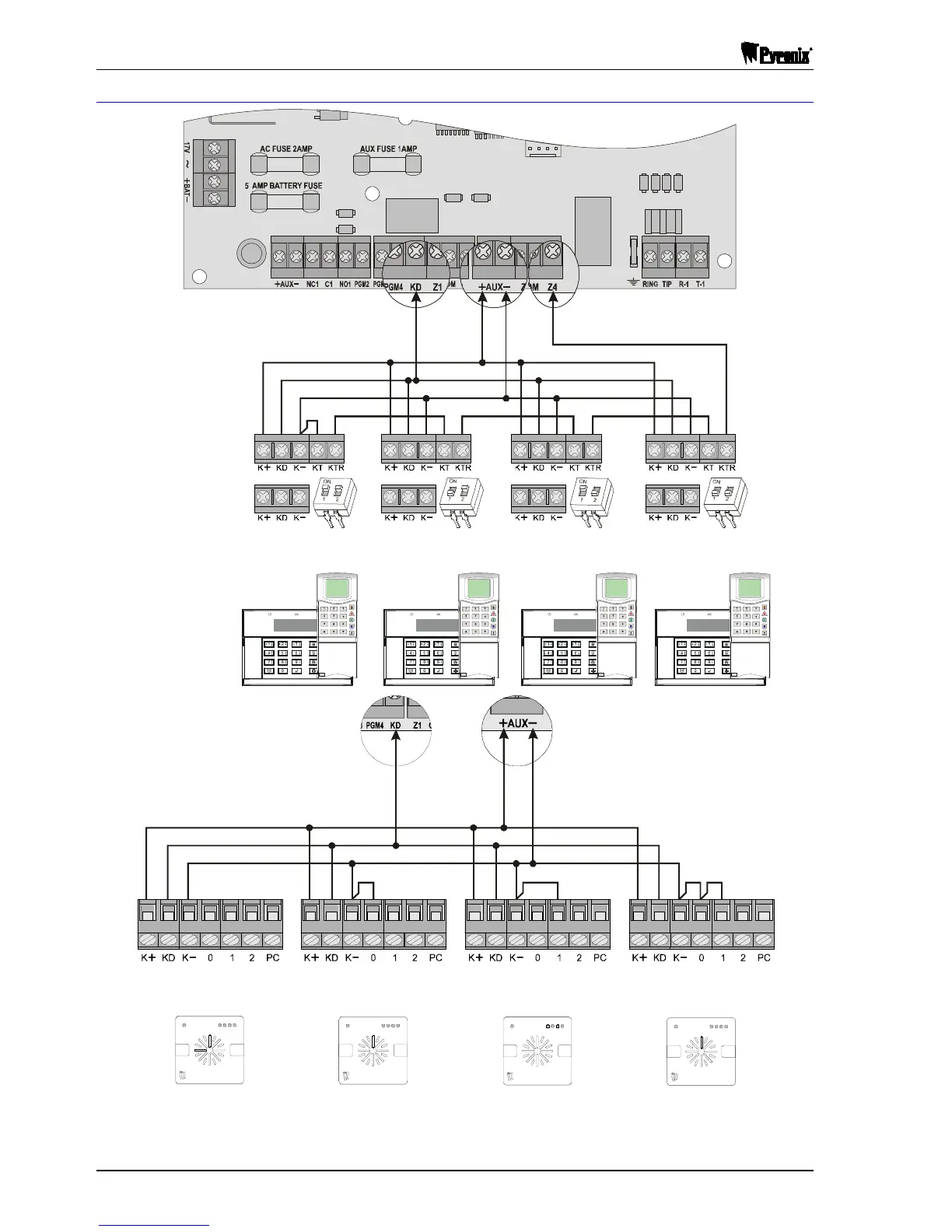

2.6.4 Connecting Multiple Keypads / Proximity Readers to a Matrix 424
MATRIX
MATRIX MATRIX MATRIX
ICON
Keypad
LCD
Keypad
KEYPAD 1
(ID 1)
READER 1
(ID 1)
KEYPAD 2
(ID 2)
KEYPAD 3
(ID 3)
KEYPAD 4
(ID 4)
READER 2
(ID 2)
READER 3
(ID 3)
READER 4
(ID 4)
NOTE: Tamper connections must go to a zone programmed as Tamper.
NOTE: After adding or removing equipment from the system, use engineers function 754 to scan for
all devices on the Matrix bus.
