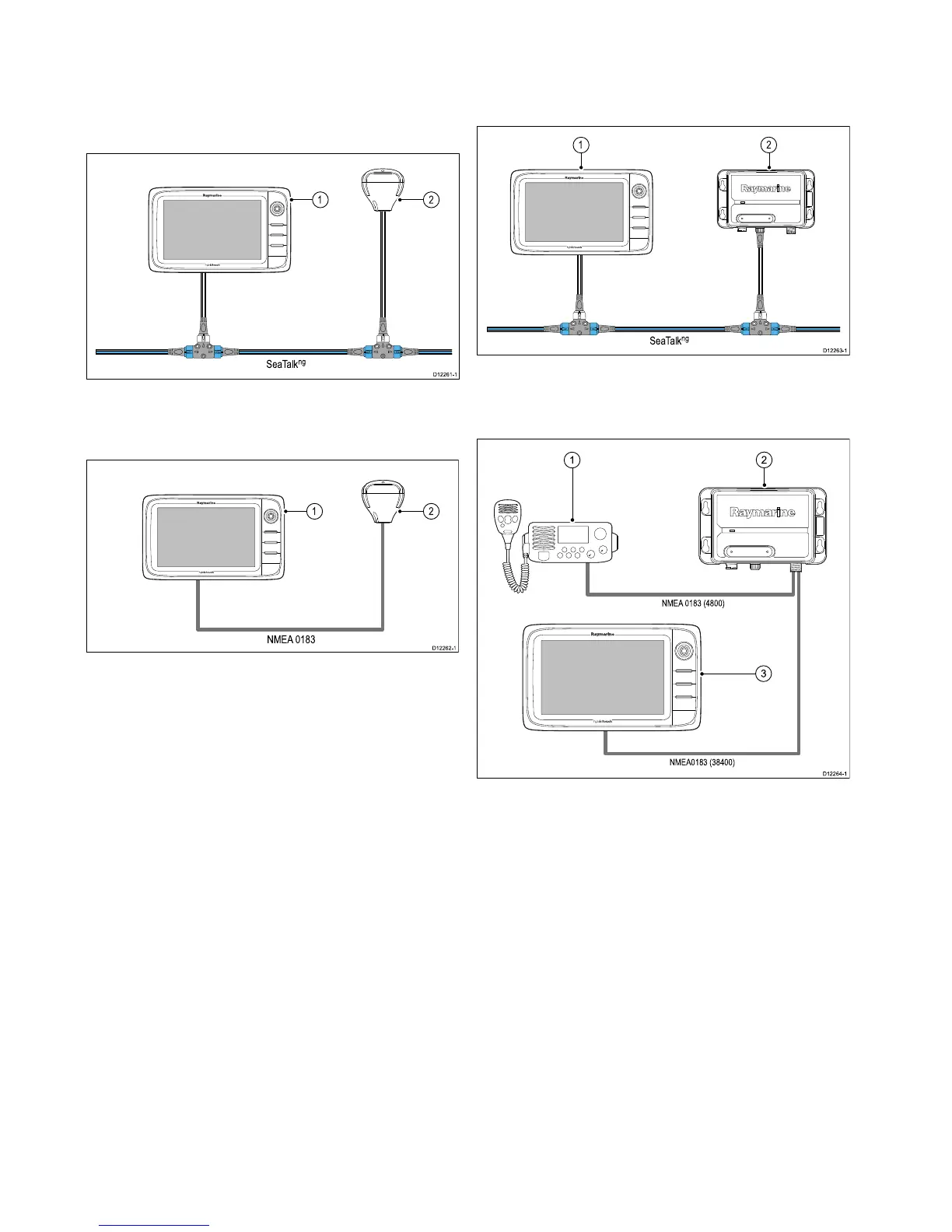

4.6GPSconnection

Dependingondisplayvariant,yourmultifunctiondisplaymay

includeaninternalGPSreceiver.Ifrequiredthemultifunction

displaycanalsobeconnectedtoanexternalGPSreceiver,

usingSeaT alk

orNMEA0183.

GPSconnection—SeaTalk

D12 26 1-1

SeaTalk

1.Multifunctiondisplay.

2.SeaTalk

GPSreceiver.

GPSconnection—NMEA0183

D12 26 2-1

NMEA 0183

1 2

1.Multifunctiondisplay.

2.NMEA0183GPSreceiver.

4.7AISconnection

AcompatibleAIScanbeconnectedusingSeaT alk

orNMEA

0183.

ConnectionusingSeaTalk

D12 26 3-1

SeaTalk

1.Multifunctiondisplay.

2.SeaTalk

AISreceiver/transceiver.

ConnectionusingNMEA0183

NMEA0183 (38400)

NMEA 0183 (4800)

D12 26 4-1

1.VHFradio.

2.AISunit.

3.Multifunctiondisplay.

50NewaSeries/NewcSeries/NeweSeries
