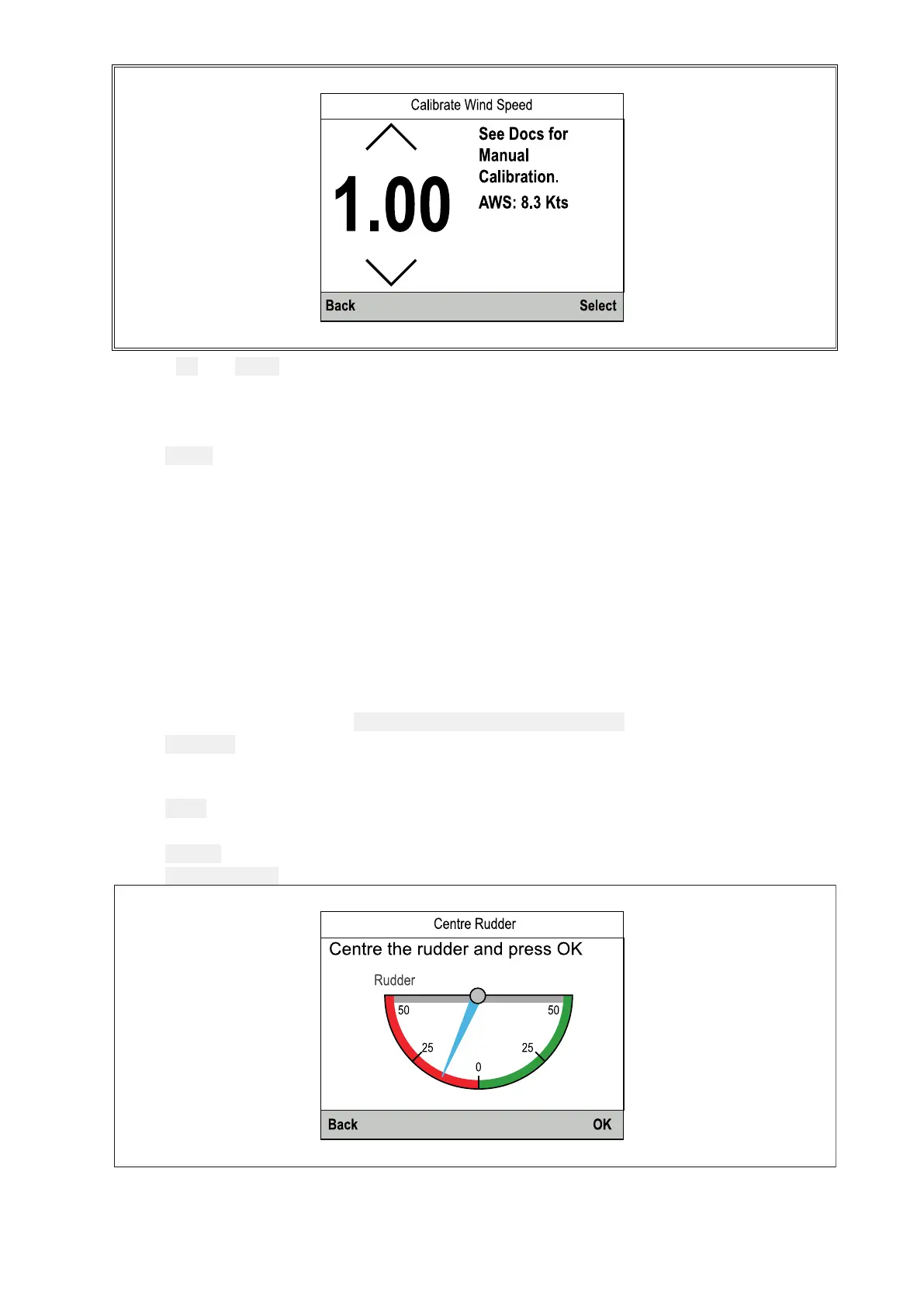

4.Usethe Upand DownbuttonstoadjustthecalibrationfactoruntiltheAWSreadingmatchesyour
referencedsourceofAWS.
TheCalibrationFactordefaultis1.00theCalibrationFactorcanbeadjustedfrom0.25to2.00.
5.Select SelecttosavetheCalibrationfactor.
4.5Rudderreferencecalibration
Y oucancalibratearudderreferencetransducerthatisconnectedtoaniTC-5.
TherudderreferencetransducermustbeconnectedtotherudderreferenceconnectionoftheiTC-5.
Rudderreferencetransducersconnectedtoanautopilotmustbecalibratedusingthepilotcontroller.
CenteringtheRudder
Tocalibraterudderpositionfollowthestepsbelow.
CenteringtheRudderrequiresamethodofknowingtheRudder’sactualposition.
FromtheTransducerSet-upmenu(
Menu>Set-up>TransducerSet-up:
1.Select
Continue.
Thedisplaywillsearchforanddisplayalistofconnecteddevices.(i.e.iTC-5,DSTortransducer
pod)
2.Select iTC-5.
Alistofavailabletransducerdataisdisplayed,
3.Select Rudder.
4.SelectCentreRudder.
5.T urnthesteeringuntilyourRudderiscentred.
TheRudderreferencetransducerhasindicatorsonitsbaseandontherudderarm,ensure
thesemarksarelinedup.
38

Raymarine i70 Specifications

General

Display Type	LCD
Resolution	320 x 240 pixels
Waterproof Rating	IPX6
Interface	SeaTalkng / NMEA 2000
Weight	0.3 kg
Display Size	4.1 inches
Backlighting	LED
Power Supply	12V DC
