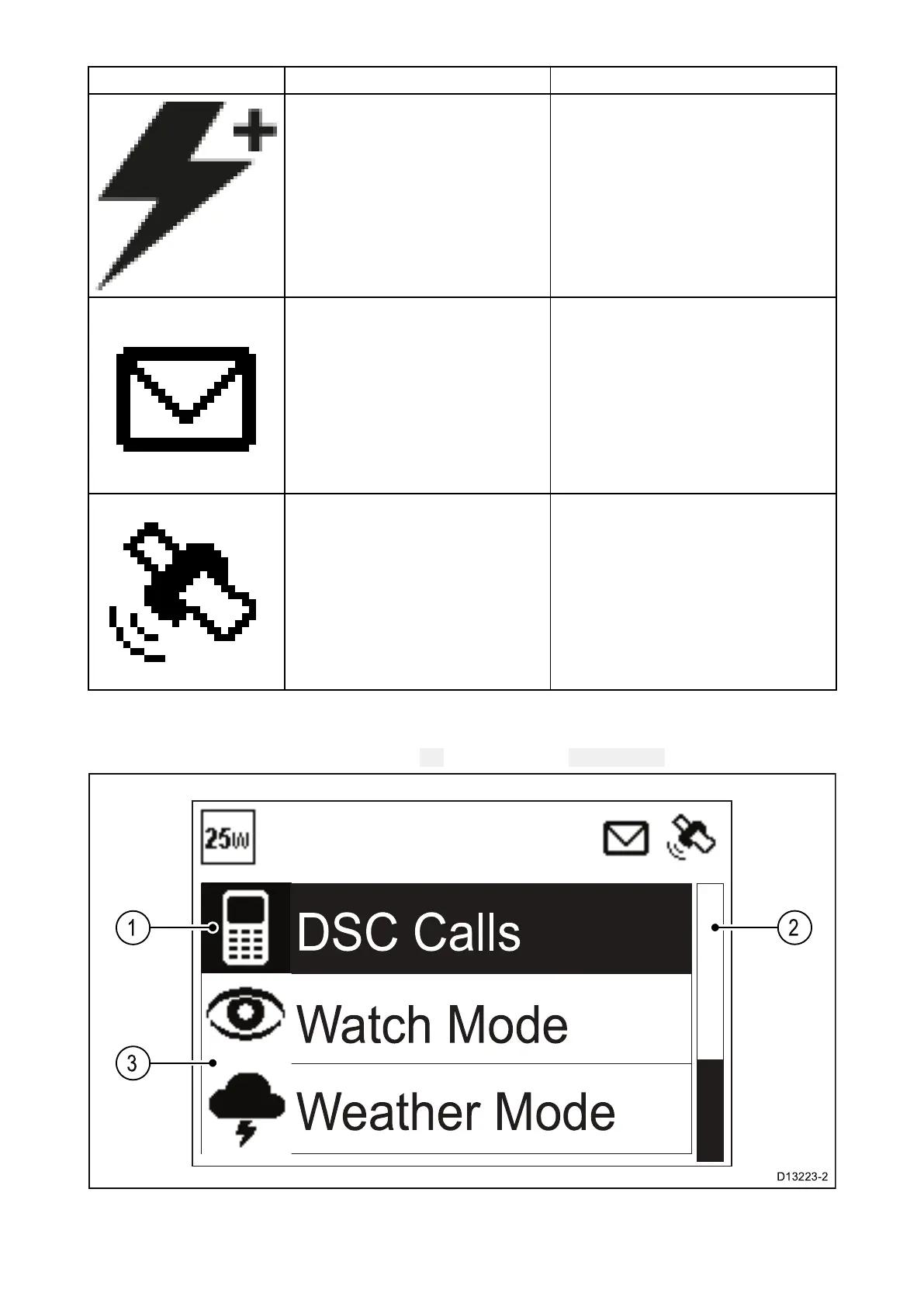

S
ymbol
Name
Description
P
ower
supply
voltage
too
high
Indicates
the
power
supply
to
the
radio
is
above
the
specified
operating
voltage.
DSC
Indicates
that
a
DSC
call
has
been
received
GPS
Fix
Indicates
if
the
radio
has
a
GPS/GNSS
fix.
Main
menu
overview
The
main
menu
is
accessed
by
Pressing
the
OK
button
from
the
Homescreen
.
1.
Currently
selected
menu
item
2.
Scroll
bar
Getting
started
101
100
102
