TheFistmicmustNO

Tbeusedtocreateasecondstation,astheoperatorwillnothaveaccesstoall

RadiofunctionsortheinformationdisplayedontheRadio’sLCDscreen.

8.6Secondaryhandsetstation(Ray63/Ray73only)

TheRaymichandsetaccessorycanbeconnectedtotheSecondarystationconnectorlocatedonthe

rearoftheradio,thiswillcreateasecondfullyfunctionalstation.

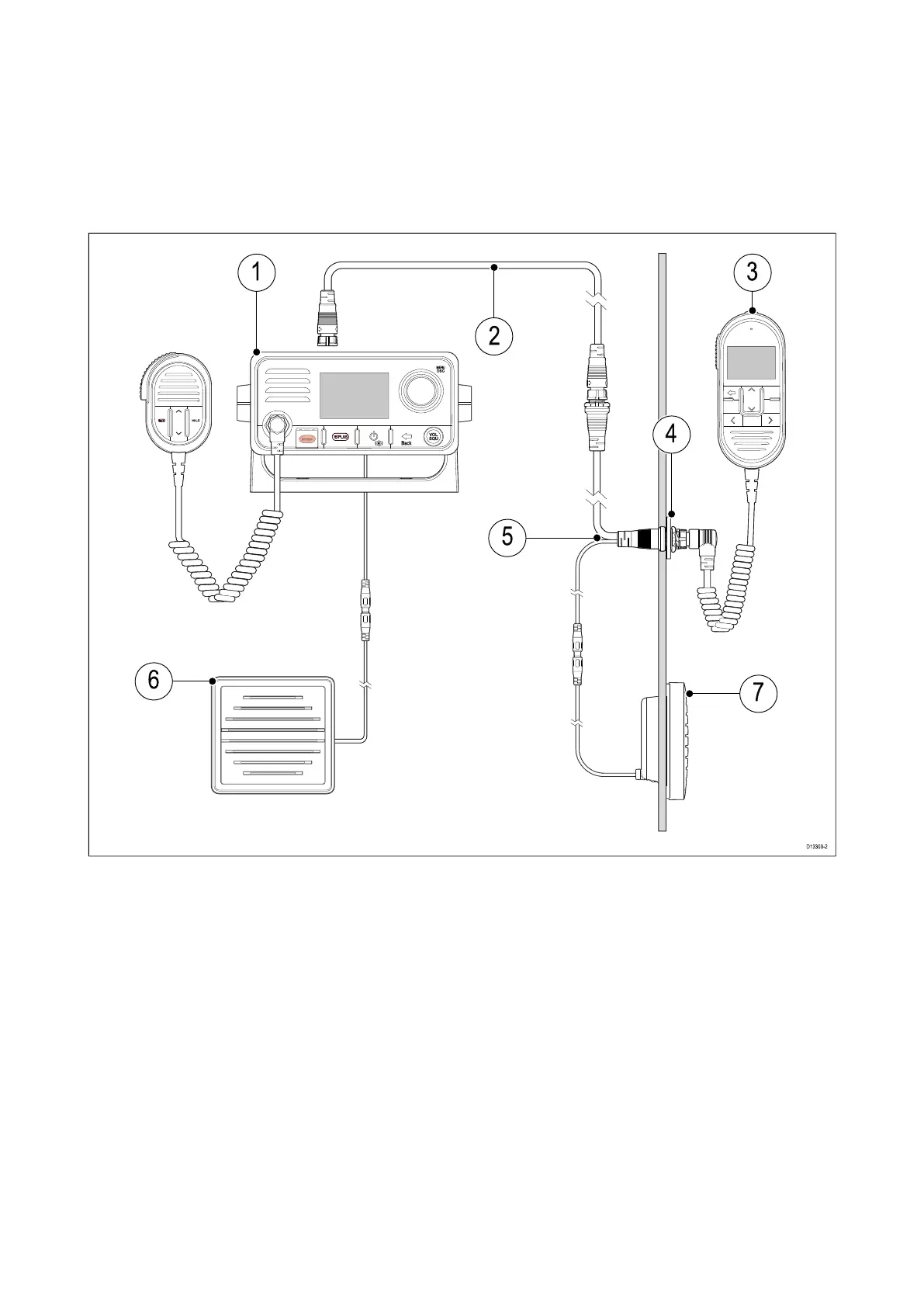

1.Primarystation(R adiobasestation)

2.Handsetextensioncable(A80290,A80291orA80292)

3.Secondarystationhandset(A80289)

4.Panelmountﬁxingskit(R70438)

5.HandsetadaptorcablewithRCAaudio(A80297)

6.Primarystationpassivespeaker(A80542)

7.Secondarystationpassivespeaker(A80542)

TheFistmicmustNOTbeusedtocreateasecondstation,astheoperatorwillnothaveaccesstoall

RadiofunctionsortheinformationdisplayedontheRadio’sLCDscreen.

Wiredhandsetextensioncables

Handsetstationcablingcanbeextendedusingapprovedextensioncables.

ThemaximumlengthofcablefromtheHandsettotheBasestationshouldnotexceed50m(164ft)

Cablesandconnections83
