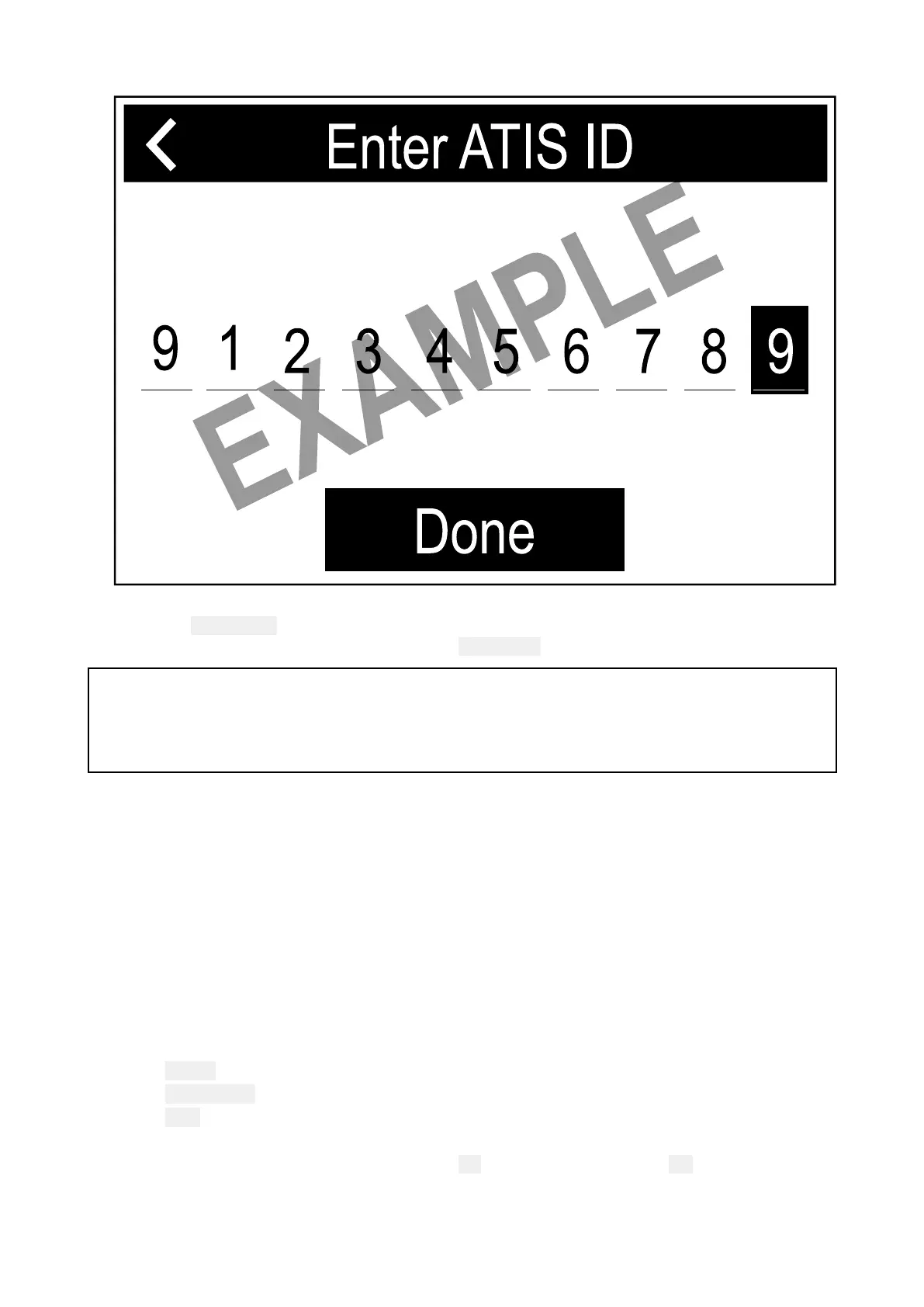

Example

9 .TheATISIDisdisplayedonscreen,checkthatitiscorrect,then:

i.Select Yes–Save,or

ii.ifthenumberenteredisnotcorrectselect No–Retry.

Caution:MMSIandATISIDentry

YoucanonlyentertheMMSInumberandATISIDonce!

IfyoustoreanincorrectMMSInumberorATISIDinyourproduct,itwillhavetobe

resetbyanauthorizedRaymarine

dealer.

EnablinganddisablingA TISmode

ATISisaEuropeansystemusedonsomeinlandwaterways.AuniqueATISIDmustbeentered

beforeATISmodecanbeenabled.

WithATISmodeenabledtheradio’sregionwillbeﬁxedtotheINT(international)frequencybandand

thefollowingfunctionsaredisabled:

•DSCfunctions

•WatchMode

•ScanMode

•High/lowpowerisrestrictedoncertainchannels

FromtheMainmenu.

1.Select

Set-up.

2.Select

ATISset-up.

3.Select ATIS.

IfnoATISIDhasbeensetthenyouwillberequestedtoenteronebeforeATISmodeisenabled.

4.IfanATISIDhasalreadybeensetthenselect

OntoenableATISmodeor OfftodisableATIS

mode.

Gettingstarted

111
