Chapter 8: Installation 141
Chapter 8: Installation
8.1 Introduction

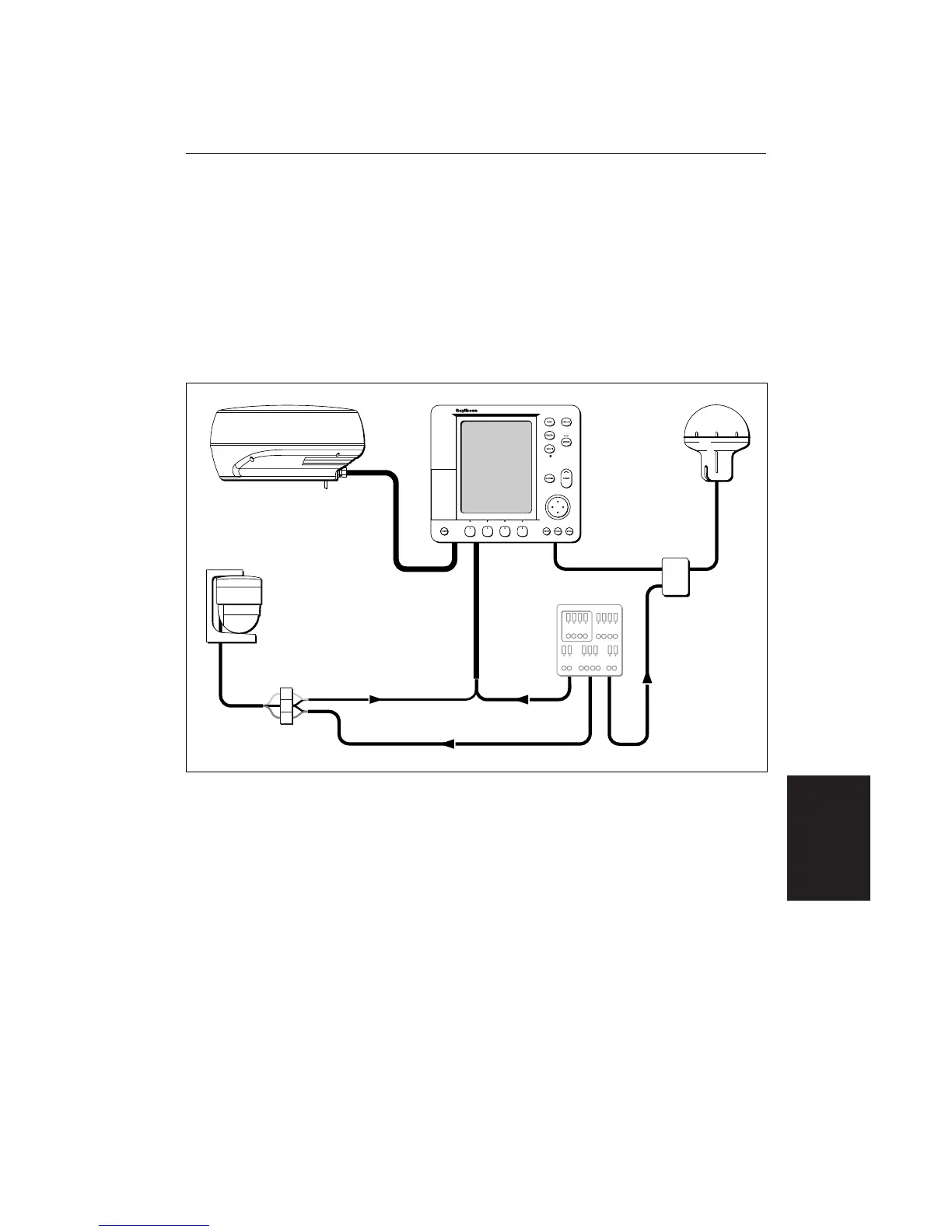

This chapter provides instructions to assist you in the installation of the HSB
Series LCD Display aboard your vessel, whether you are installing a simple
system such as that shown below, or an integrated system such as those shown
in Section 8.8 Integrated Systems.
NMEA
SeaTalk
HSB Series Display
Distribution Panel
D4288-1
Scanner
12/24V Supply
12V Supply
12V Supply
Junction
Box
GPS
Compass
Note: If you wish to practice using the display before installation, you can set it
up by connecting a 12V or 24V DC power supply (connecting the red core from
the power lead via a 6.3A quick blow fuse to positive and the black core to
negative) and using the simulator mode, as described in Chapter 2 Getting
Started.
If you are connecting your display to other equipment (including another HSB
series display unit) it is strongly recommended that you install, test and align the
master radar display as described in Sections 8.2 to 8.7. Details on installing
the scanner are provided in the Pathfinder Radar Scanner Owner’s
Handbook. Once this display is installed and operating correctly, you can
connect it to other equipment as described in Section 8.8, taking particular care
to ensure the correct polarity of the SeaTalk supply. Section 8.8 includes
descriptions of the HSB, SeaTalk and NMEA interfaces, and defines data that
can be transferred.
Chapter 8
Installation
