Chapter 8: Installation 149
8.5 Mounting the Display Unit
The display unit can be mounted using the trunnion (yoke) bracket already
fitted, or console mounted using the optional flush-mounting kit (see
Section 8.2).
Trunnion (Yoke) Mounting

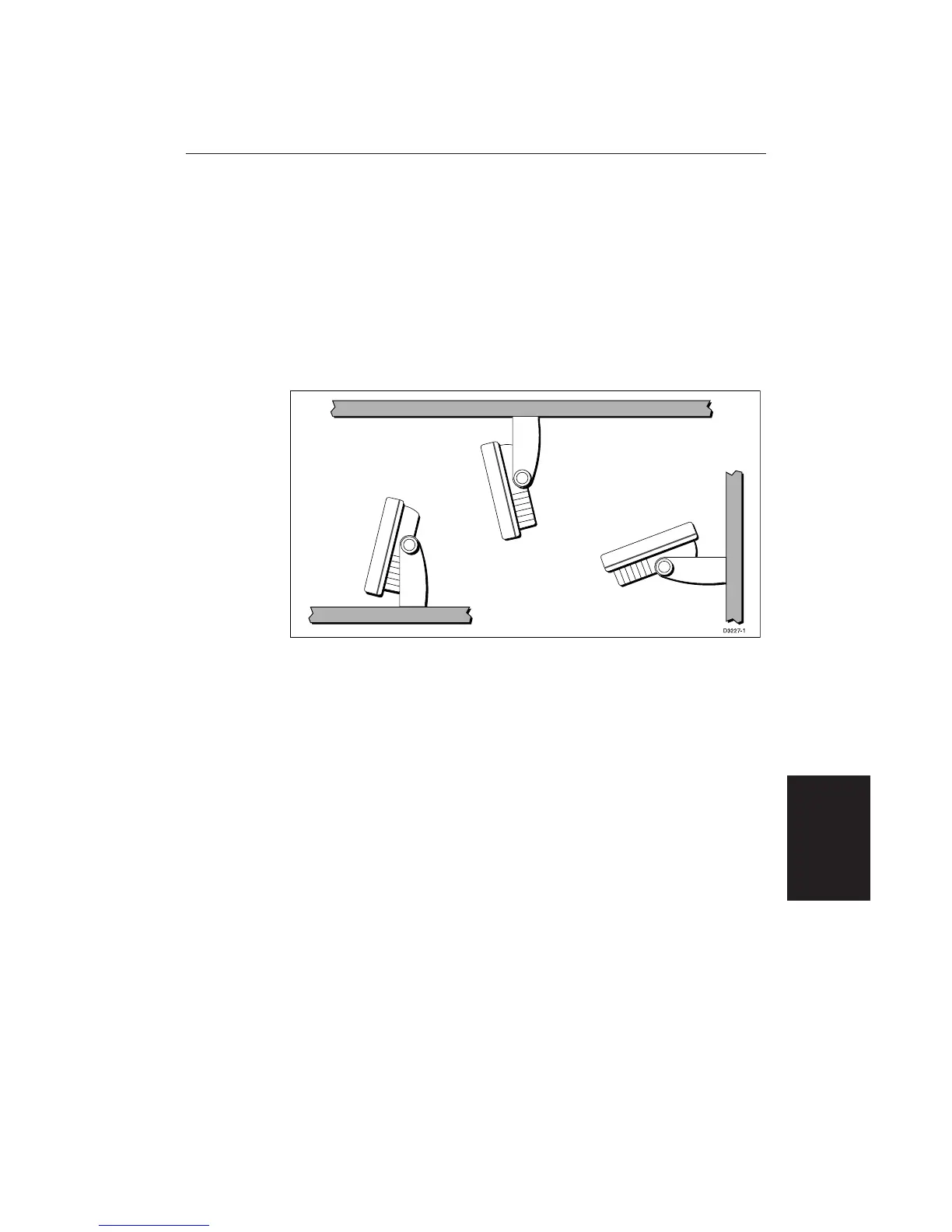

The display unit can be conveniently mounted on a dash area, chart table,
bulkhead or deckhead, as shown in the following diagram.
1. Loosen the trunnion knobs and remove the trunnion from the display unit.
2. Mark the locations of the trunnion screw holes on the mounting surface.
3. Use the screws supplied to fix the trunnion at the marked locations.
4. Fit the display unit to the trunnion, adjust the display angle and tighten the
knobs.
Mounting the
Display Unit
To Next Page
