Chapter 2: Getting Started
45
GOTO
WAYPOINT
FOLLOW
ROUTE
GOTO
CURSOR
GOTO
CURSOR
RESTART
XTE
WAYPOINT
ADVANCE
STOP
FOLLOW
GOTO
SCREEN
ROUTE
FIND SHIP
7
5
6
8

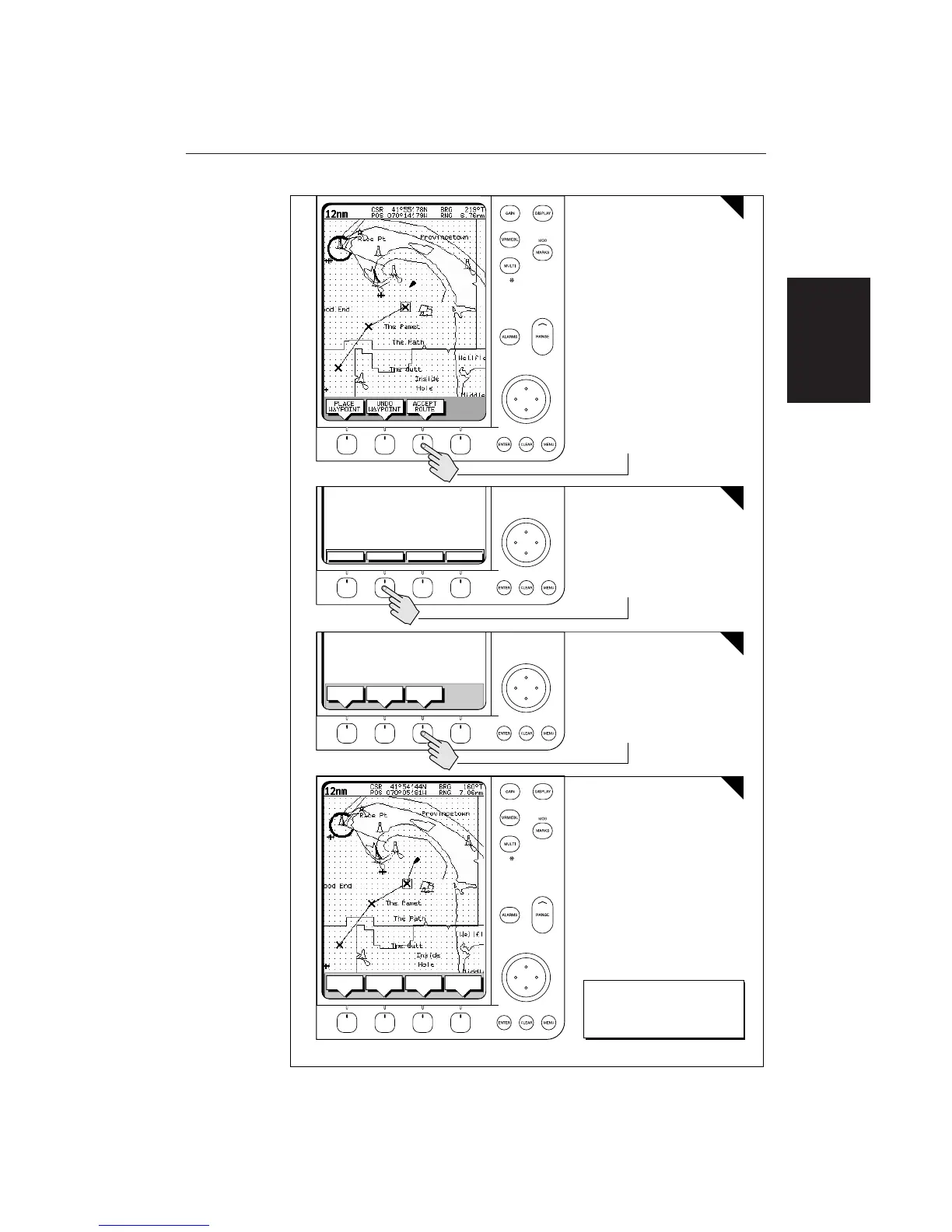

Press the soft key
D
4268-1
a
Press the soft key
Press the soft key. The route becomes
the current route.
The vessel starts to navigate to the
first (target) waypoint in the route.
See:
5.4 Working wth routes,
Follow a route, page 102.
Other Follow Options, page 103.
Make and Follow
a Route
58
60
Table of Contents
