Thermalert GP Series Operator’s Manual 19
2.4.5 4-20mA Analog Output
Complete the following for setting a temperature to correspond to the
4-20mA analog output:
Note: The 4-20mA analog output is disabled when the thermocouple output is active.
(Refer to Section 2.4.10.)
1. Press the button until the 4 mA output display (Figure 12) displays.
2. Press the button again, and the current 4mA temperature displays.
3. Press the and buttons to adjust the temperature value.
4. Pressing the button again brings up the 20mA display (Figure 13).
5. Press the and buttons to adjust the temperature value.
6. Press the button until the temperature mode is displayed.
O
N
L
C
F
Thermalert GP

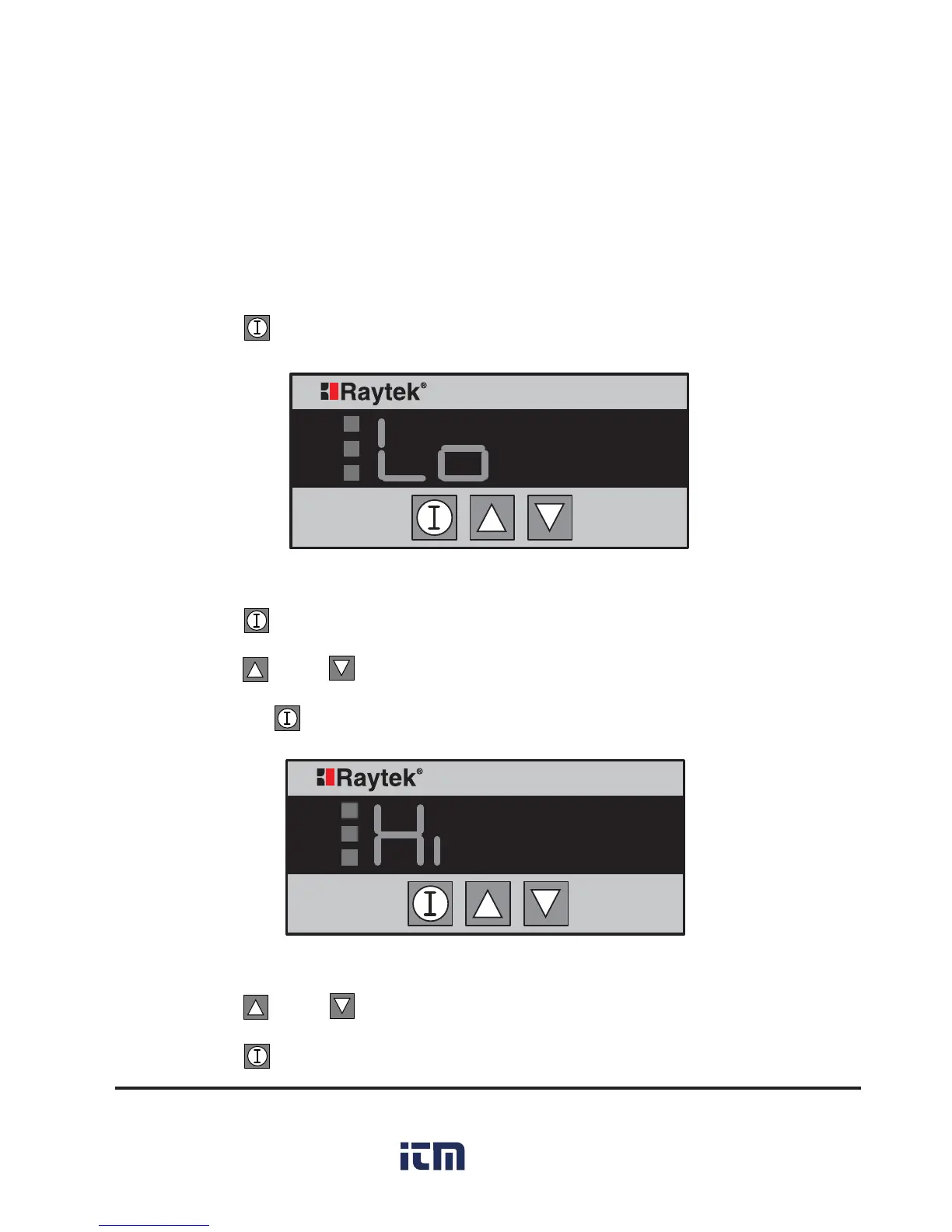

Figure 12: 4mA Analog Output Display
O
N
L
C
F
Thermalert GP
Figure 13: 20mA Analog Output Display
