50 Thermalert GP Series Operator’s Manual
B.6.2 Adjustable Mounting Bracket
If you need more more than one measuring position for the sensing head,
use the adjustable mounting bracket accessory.
B.6.3 GPM Head with Air Cooling System
The air cooling option allows the sensor to be used in ambient temperatures
up to 200°C (392°F). The T-fitting allows the air cooling hose to be installed
without interupting the connections to the electronics. The air-cooling jacket
may be combined with the air purging jacket (Section B.6.4) or with the right
angle mirror (Section B.6.5).

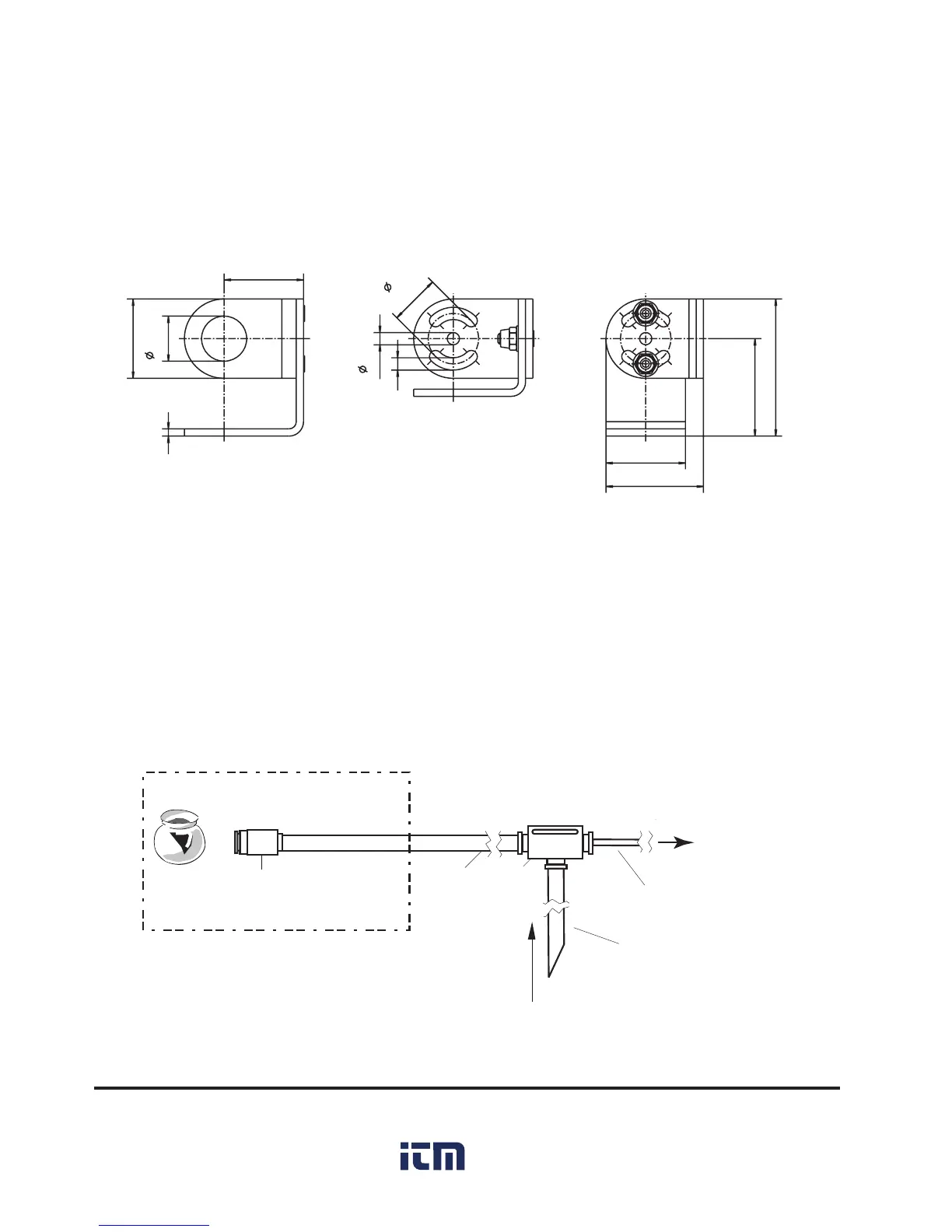

Figure B-18: Adjustable Mounting Bracket Accessory
22 (.75)
14
(.51)
3 (.12)
3
(.12)
22
(.75)
2
(.08)
13 (.5)
22 (.75)
27 (1.05)
27
(1.05)
38
(1.5)
mm (inches)
Ambient temperature
up to 200°C
Ambient temperature max. 50°C
To terminals
T-FittingHose
Air cooling (max. 35°C)
Sensing head
Cable
Air hose
Figure B-19: Air Cooling System
