Thermalert GP Series Operator’s Manual 49
B.6 GP MINIATURE HEAD INFORMATION
The GPM has models available with 2:1 and 10:1 optical resolution. Use the
following measurements when determining space requirements for installa-
tion.
B.6.1 GPM Head
The sensor can be mounted using the fixed or adjustable mounting bracket
accessory or with a customer-supplied bracket or pipe adapter. (Other acces-
sories and options are listed at the end of this section.)
17 (.67)
28 (1.1)
M 12x1
φ 14 (.55)
11 (.43)
mm (in)
preinstalled cable
standard cable length 1 m ( 3 ft.)
φ 5 (.2)

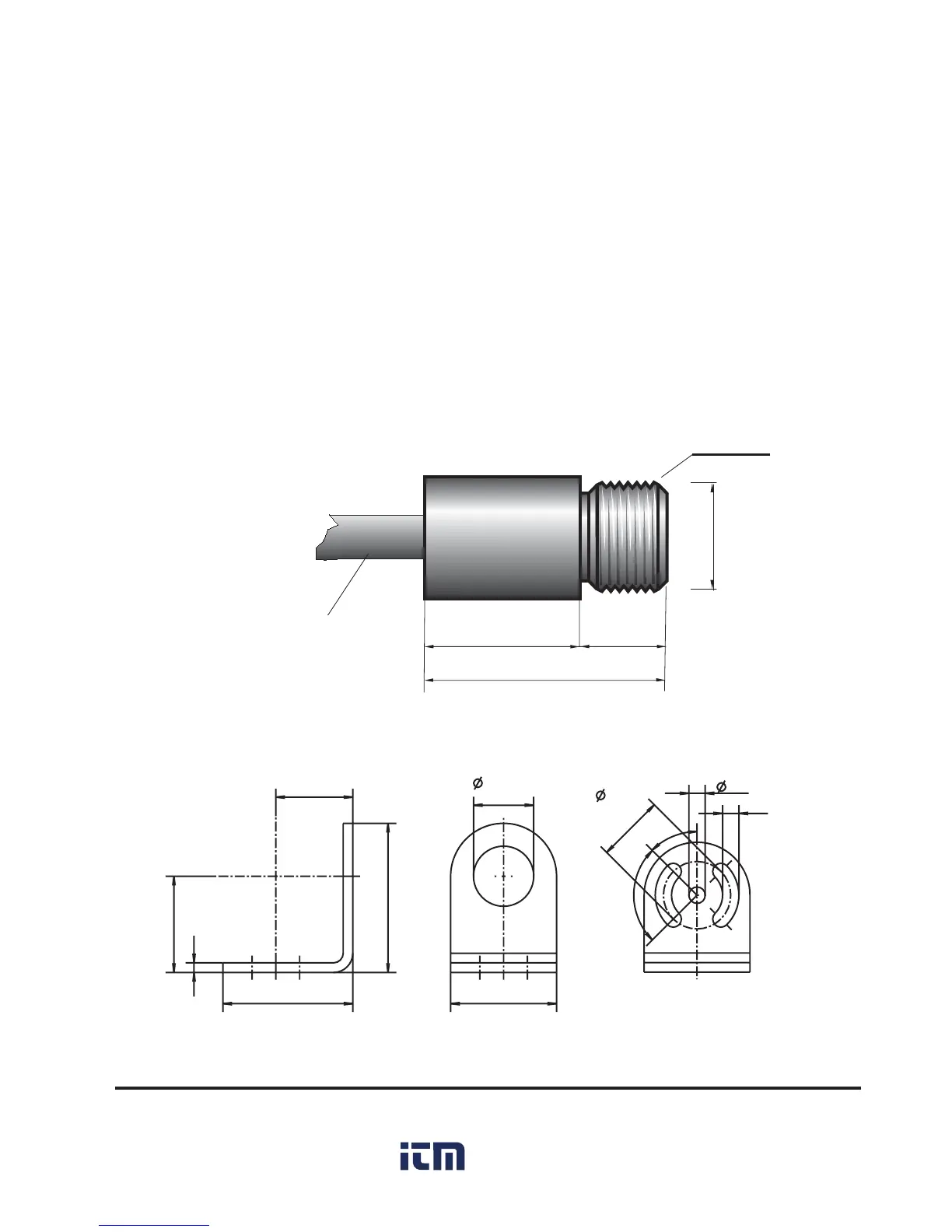

Figure B-16: The GPM Sensing Head
16 (.63)
20
(.8)
27
(1.05)
2 (.08)
31 (1.2)
22
(.75)
90
14
(.51)
45
3.4 (.13)
3.4 (.13)
13 (.5)
mm (inches)
Figure B-17: Fixed Mounting Bracket
