44 Thermalert GP Series Operator’s Manual
SPOT DIA. (in)SPOT DIA. (mm)
30 60 90
120
3000
2500
1520 2000
1000
0
0
DISTANCE: SENSOR TO OBJECT (mm)
DISTANCE: SENSOR TO OBJECT (in)
1.0
33
0.9
23
12
500
1.3
1.7
1.7" @ 60"
2.8
3.8
25
60
44
44mm @ 1520mm
77
94
GPR STANDARD FOCUS
35:1

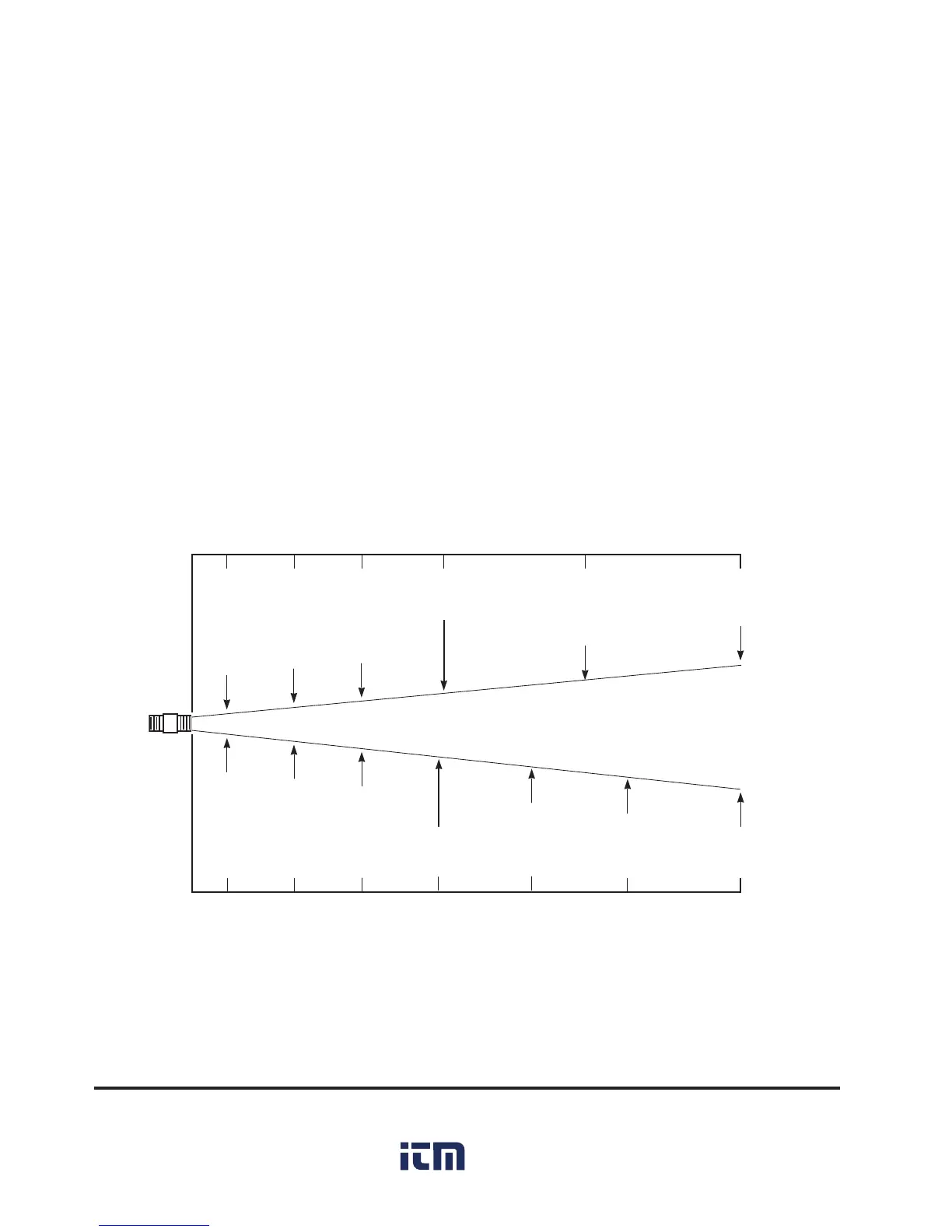

Figure B-12: GPR Standard Focus Optical Chart
B.5.8 GPR and GPS Head Specifications
The following sections contain optical, thermal, and physical specifications
for the GPR and GPS.
B.5.8.1 Optical
The optical charts indicate the nominal target spot diameter at any given dis-
tance from the sensing head. Information in the top half of each diagram is
in inches or feet, the bottom half is in metric units. All optical diagrams
within this manual assume 90% energy. Figure B-12 is for the GPR Standard
Focus model, Figure B-13 is for the GPR Close Focus model, Figure B-14 is
for the GPS Standard Focus model, and Figure B-15 is for the GPS Close
Focus model.
