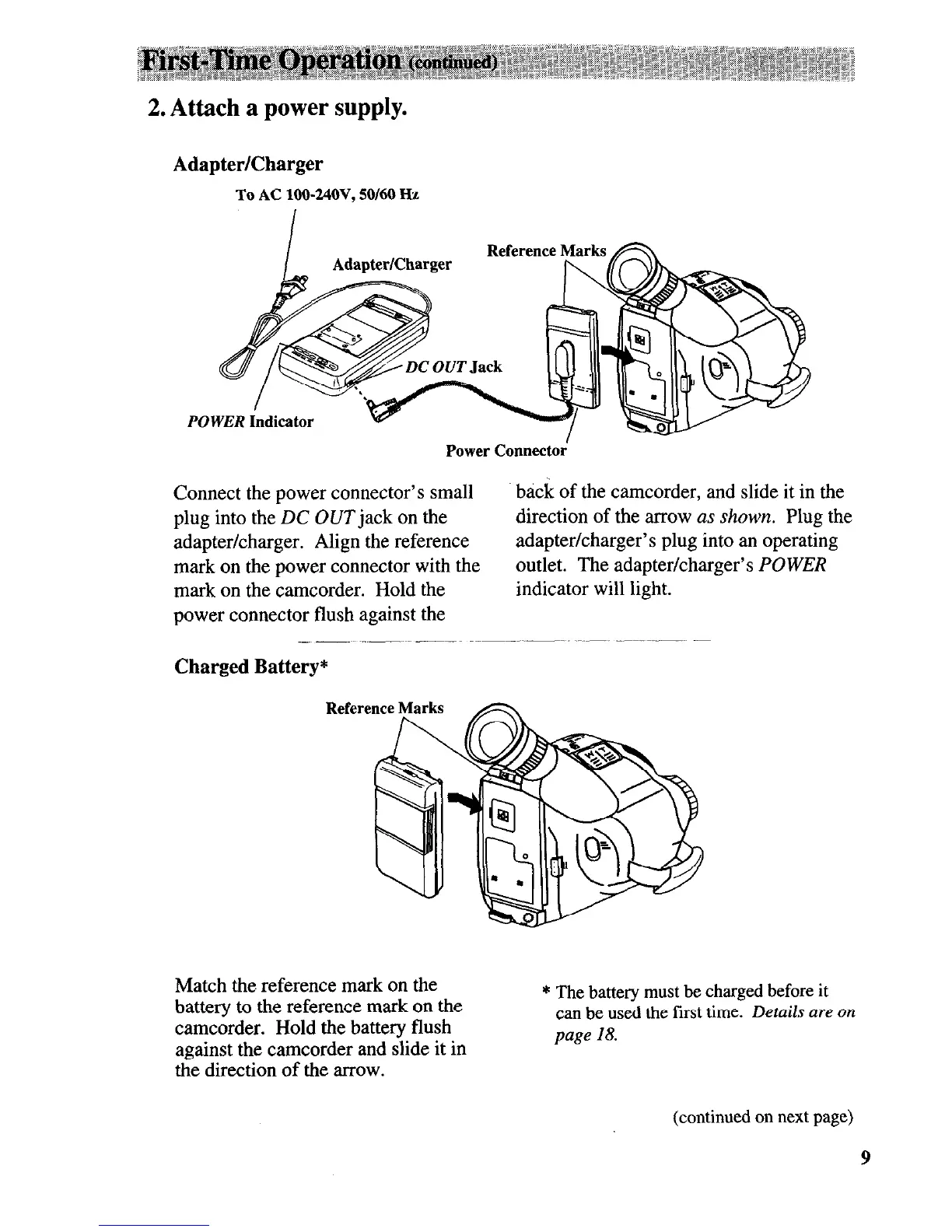

2. Attach a power supply.
Adapter/Charger
To AC 100-24OV, SO/60 Hz
Adapter/Charger
Reference Marks
Power Connector
Connect the power connector’s small
plug into the DC OUT jack on the
adapter/charger. Align the reference
mark on the power connector with the
mark on the camcorder. Hold the
power connector flush against the
back of the camcorder, and slide it in the
direction of the arrow as shown. Plug the
adapter/charger’s plug into an operating
outlet. The adapter/charger’s POWER
indicator will light.
.__~ -__~--.
Charged Battery*
Match the reference mark on the
battery to the reference mark on the
camcorder. Hold the battery flush
against the camcorder and slide it in
the direction of the arrow.
* The battery must be charged before it
can be used the first time. Details are on
page
18.
(continued on next page)
9
To Next Page
