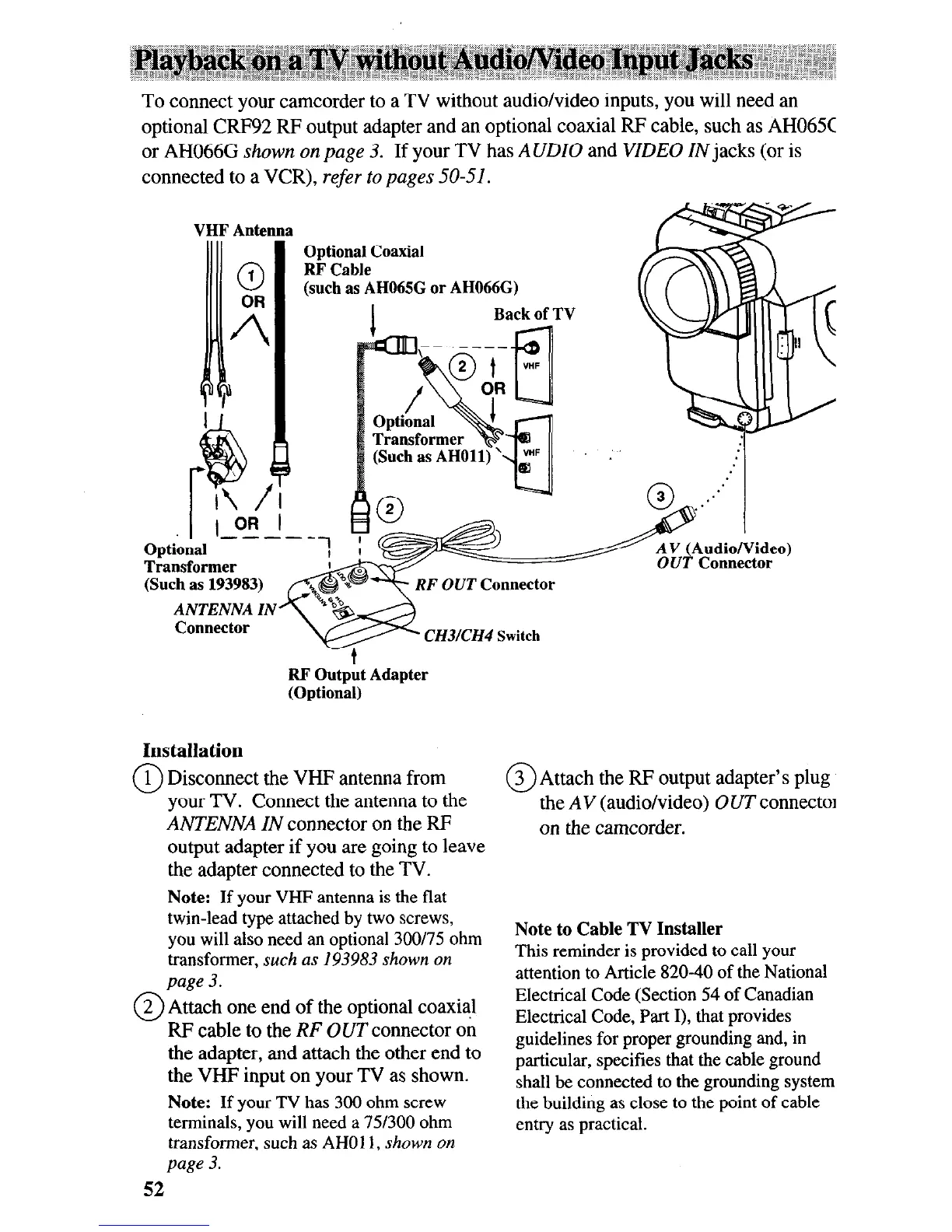

To connect your camcorder to a TV without audio/video inputs, you will need an
optional CRF92 RF output adapter and an optional coaxial RF cable, such as
AH065G
or AH066G shown on page 3. If your TV has AUDIO and VIDEO IN jacks (or is
connected to a VCR), refer to pages 50-51.
VHF Antenna
/I/ I
Optional Coaxial
0
RF Cable
OR
(such as AHO65G or AH066G)
A I
Back of TV
(Such as AHOllj‘\lr 11 .
.:I
Optiodal ’
-e-m-
Transformer
(Such as 193983)
ANTENNA IN
Connector
CH3/CH4 Switch
OUT Connector
RF Output Adapter
(Optional)
Installation
0
1 Disconnect the VHF antenna from
your TV. Connect the antenna to the
ANTENNA IN connector on the RF
output adapter if you are going to leave
the adapter connected to the TV.
Note: If your VHF antenna is the flat
twin-lead type attached by two screws,
you will also need an optional 300/75 ohm
transformer, such as 193983 shown on
page 3.
0
2 Attach one end of the optional coaxial
RF cable to the RF OUT connector on
the adapter, and attach the other end to
the VHF input on your TV as shown.
Note: If your TV has 300 ohm screw
terminals, you will need a 75/300 ohm
transformer, such as AH01 1, shown on
page 3.
52
0
3 Attach the RF output adapter’s plug
to
the AV (audio/video) OUT
connector
on the camcorder.
Note to Cable TV Installer
This reminder is provided to call your
attention to Article 820-40 of the National
Electrical Code (Section 54 of Canadian
Electrical Code, Part I), that provides
guidelines for proper grounding and, in
particular, specifies that the cable ground
shall be connected to the grounding
system
the building as close to the point of cable
entry as practical.
