5 Minute Guide
3 Connect your speakers.

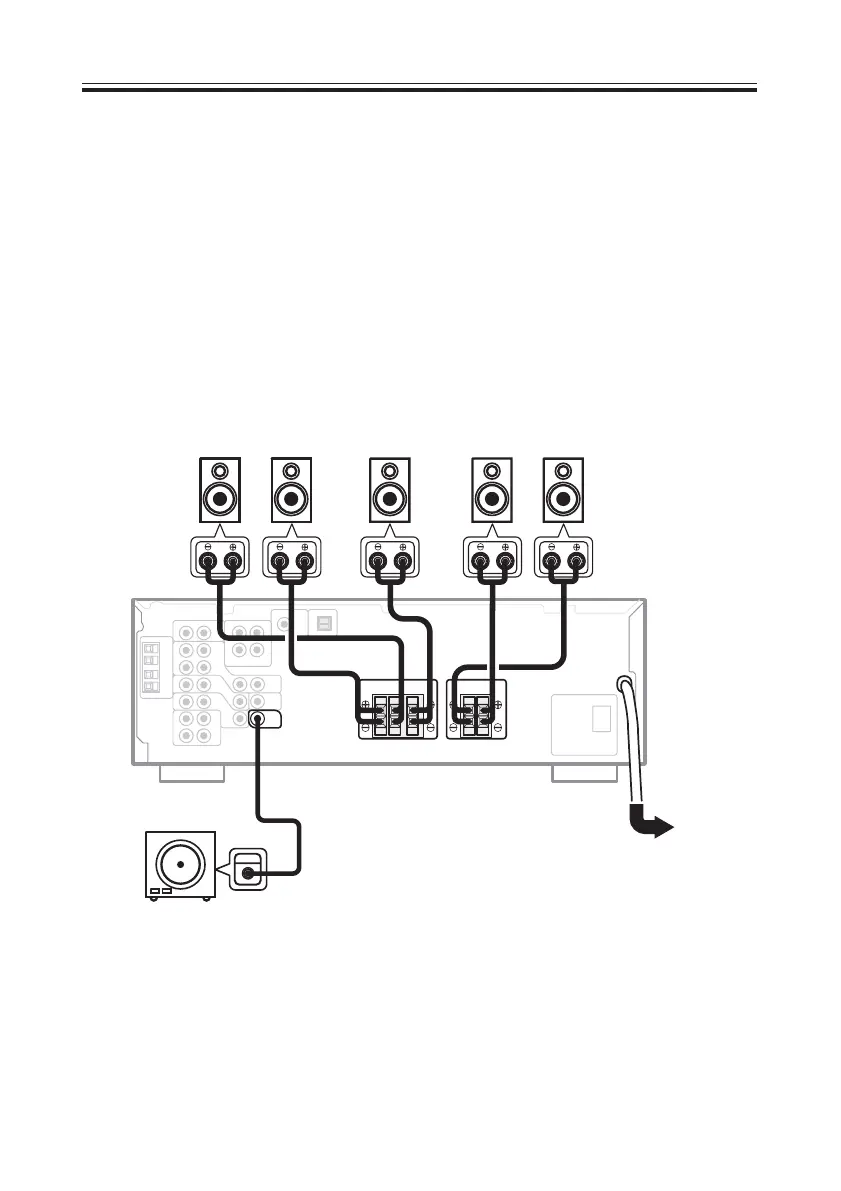

A complete setup of six speakers (including the subwoofer) is shown here, but actual home
setups may vary. Simply connect the speakers you have in the manner shown below. The
receiver will work with just two stereo speakers (the front speakers in the diagram) but using
at least three speakers is recommended, and a complete setup is best. If you are not using a
subwoofer, change the front speaker setting (see "Speaker Setting" on page 34) to large.
Make sure you connect the speaker on the right to the right terminal and the speaker on the
left to the left terminal. Also make sure the positive and negative (+/–) terminals on the
receiver match those on the speakers.
Note:
Use speakers with a nominal impedance of 8 Ω to 16 Ω.
INPUT
RL RL
Front Speakers
Center Speaker
Surround Speakers
Powered subwoofer
LR C SRSL
Note:
Be sure to complete all
connections before
connecting this unit to
the AC power source.
