RCA Professional series User Manual

19
Connecting Your Equipment
Speaker Terminals
1 Twist around 1/2 inch of bare wire strands together.
2 Unclip the speaker terminal and insert the wire.
3 Snap shut the speaker terminal to secure.
ª
·

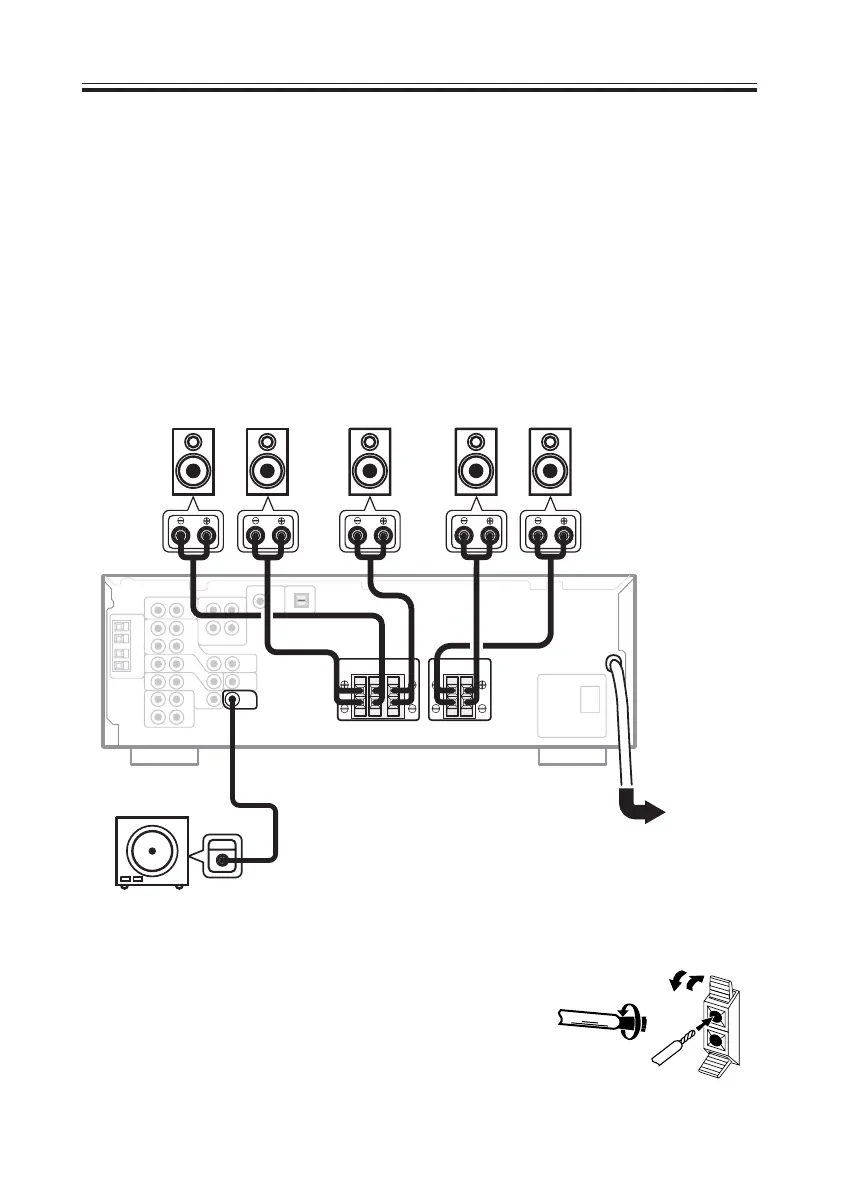

Connecting the Speakers
A complete setup of six speakers (including the subwoofer) is shown here, but actual home
setups may vary. Simply connect the speakers you have in the manner shown below. The
receiver will work with just two stereo speakers (the front speakers in the diagram) but using
at least three speakers is recommended, and a complete setup is best. If you are not using a
subwoofer, change the front speaker setting (see "Speaker Setting" on page 34) to large.
Make sure you connect the speaker on the right to the right terminal and the speaker on the
left to the left terminal. Also make sure the positive and negative (+/–) terminals on the
receiver match those on the speakers.
Be sure to complete all other
connections before connecting this
unit to the AC power source.
Front Speakers
Center Speaker Surround Speakers
Powered subwoofer
LR
CSRSL
INPUT
RL RL
Note:
Use speakers
with a nominal
impedance of 8
Ω to 16 Ω.
1/2 inches
31_5021.RCA.14.21 03.3.17, 8:25 PM19
