Connecting Your Equipment
Connecting Video Components

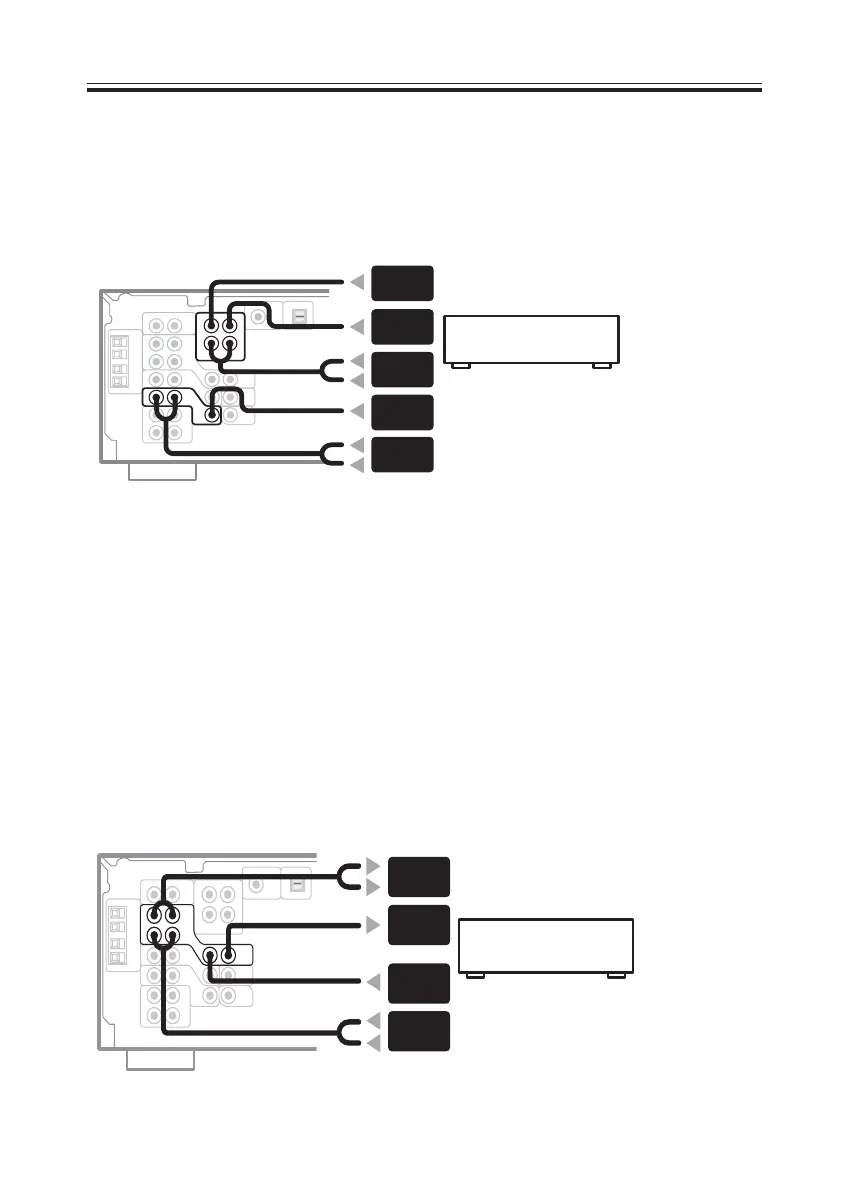

Connect your video components to the jacks as shown below. Regarding digital video
components (like a DVD player), you must use the connections pictured on this page for the
video signal, but in order to hear a digital source (like a DVD) you should connect the audio
to a digital input (see “Connecting Digital Components”, previous page). It is also a good idea
to connect your digital components with analog audio connections (see “Connecting Audio
Components”, previous page).
When connecting your equipment always make sure the power is turned off and the power
cord is disconnected from the wall outlet.
AUDIO
INPUT
VIDEO
INPUT
VIDEO
OUTPUT
AUDIO
OUTPUT
Video deck
Connecting DVD 5.1 Channel Components
If you have a DVD player with multi-channel analog outputs, or prefer to use an external
decoder, you can connect it to this receiver’s multi-channel analog inputs.
When connecting your equipment, always make sure the power is turned off and the power
cord is disconnected from the AC outlet.
Note:
The 5.1 channel input can only be used when DVD 5.1 CH is selected (see “Selecting the
Multi-Channel Analog Inputs” on page 32).
SURROUND
OUTPUT
SUBWOOFER
OUTPUT
CENTER
OUTPUT
VIDEO
OUTPUT
FRONT
OUTPUT
DVD/multi-channel decoder
with 5.1 channel analog
output jacks
Note:
The arrows
indicate the
direction of
the signal.
Note:
The arrows
indicate the
direction of
the signal.
