RCA Professional series User Manual

24
Controls and Displays

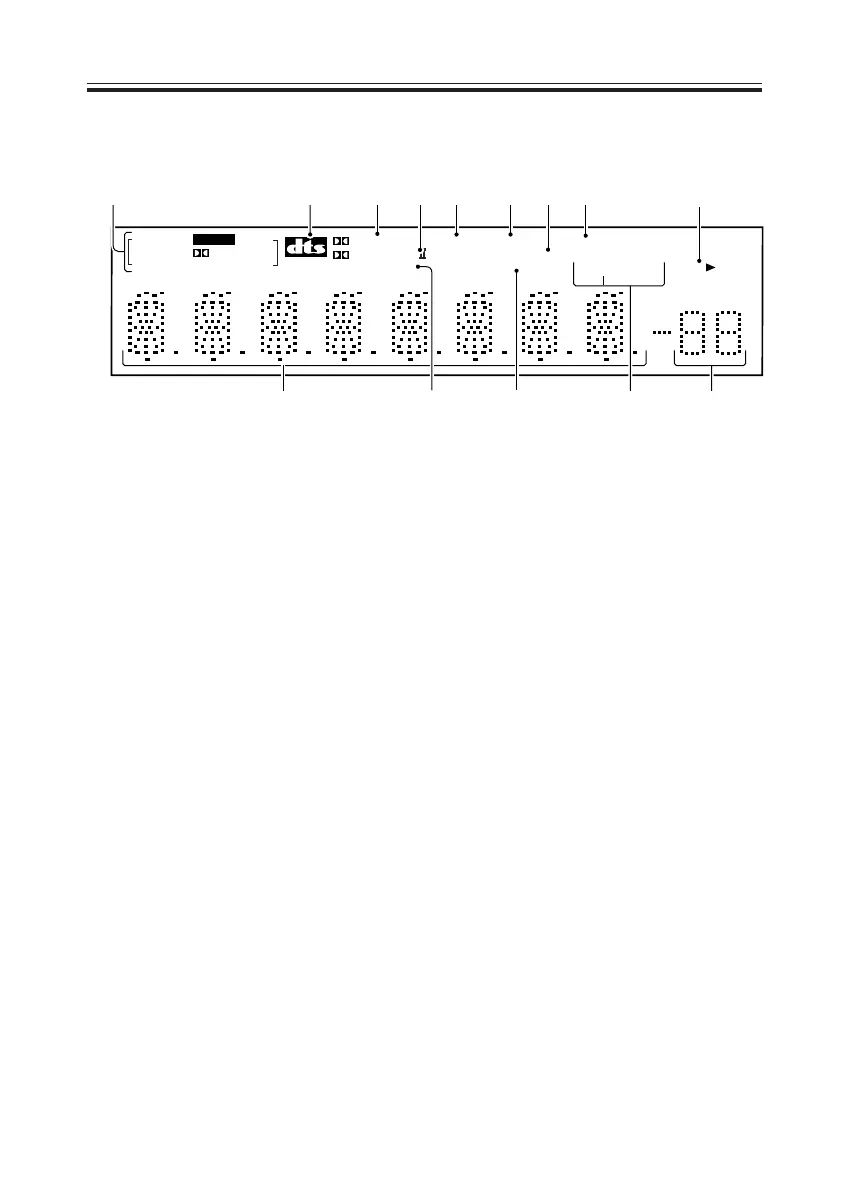

1 SIGNAL SELECT indicators
Lights to indicate the type of input signal
assigned for the current component:
AUTO : Lights when AUTO signal select
is on.
DIGITAL : Lights when a digital audio
signal is detected.
22
22
2 DIGITAL : Lights when a Dolby
Digital signal is detected.
ANALOG : Lights when an analog signal
is detected.
DTS : Lights when a source with DTS
audio signal is detected.
2 DTS
When the Standard mode of the receiver
is on, this lights to indicate decoding of a
DTS signal.
3 2 DIGITAL
When the Standard mode of the receiver
is on, this lights to indicate decoding of a
Dolby Digital signal.
4 2 PRO LOGIC II
When the Standard mode of the receiver
is on, this lights to indicate Prologic II
decoding.
5ATT
Lights when
INPUT ATT is used to
attenuate (reduce) the level of the input
signal (can only be used with an analog
signal).
6 DIRECT
Lights when source direct playback is in
use. This function bypasses all tone,
balance, DSP and Dolby Surround
effects.
7 MIDNIGHT
Lights during Midnight listening.
8 MONITOR
Lights when
MONITOR is selected.
9 Speaker indicator
Shows if the speaker system is on or not.
SP
 
 
 A means speakers are switched on.
SP


 means the headphones are
connected.
10 Character display
11 ADV. SURR (Advanced Surround)
Lights when one of the Advanced
Surround listening modes of the receiver
is selected.
dB
SIGNAL
DIGITAL DIGITAL
ANALOG DTS
DIGITAL ATT DIRECT
MIDNIGHT
LOUDNESS MONO SP A
STEREO
TUNED
MONITOR
PROLOGIC
ADV.SURR.
AUTO
1
2
3
4
5
6
78
9
10
14
12
11 13
Display
