Connecting Your Equipment

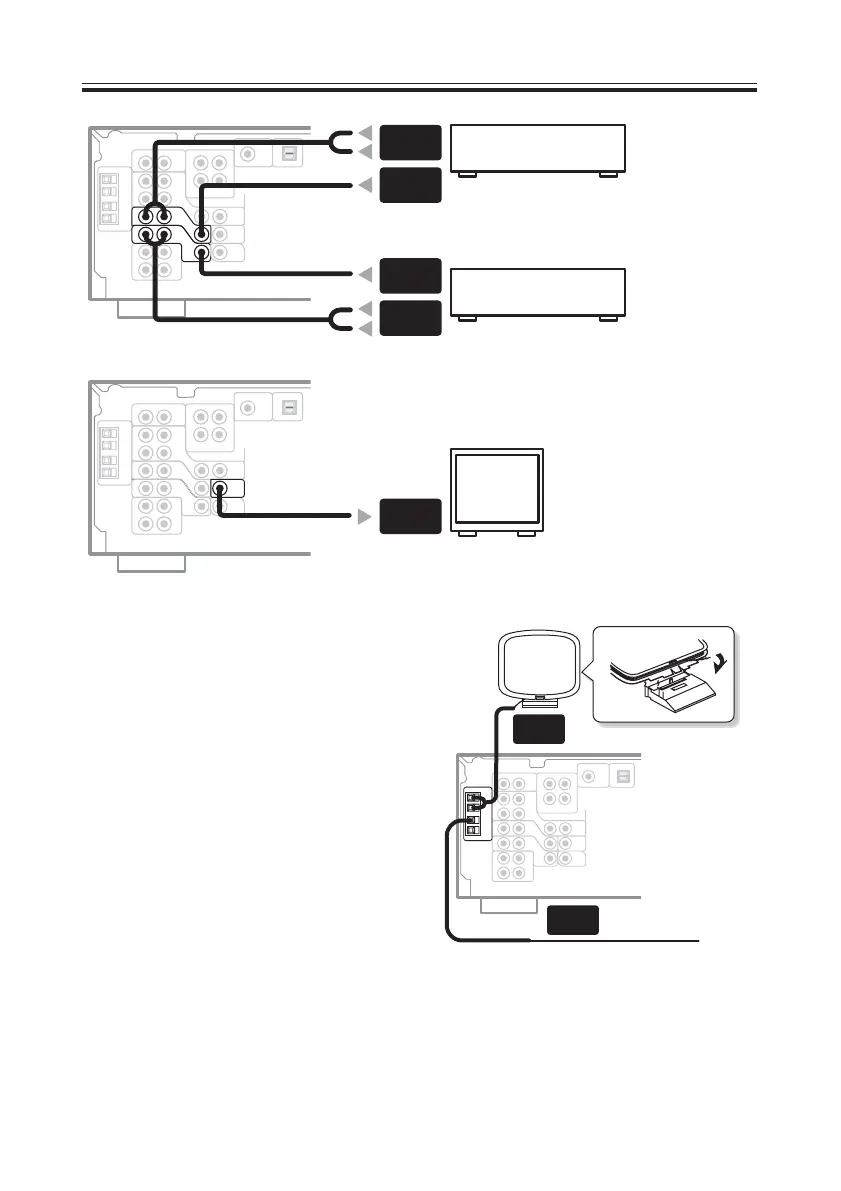

Connecting Antennas
Connect the AM loop antenna and the FM
wire antenna as shown at right. To improve
reception and sound quality, connect external
antennas (see "Using External Antennas", next
page). Always make sure that the receiver is
switched off and unplugged from the wall
outlet before making or changing any
connections.
FM Wire Antenna
Connect the FM wire antenna and fully
extend vertically along a window frame or
other suitable area.
AM LOOP
ANTENNA
FM WIRE
ANTENNA
AUDIO
OUTPUT
VIDEO
OUTPUT
VIDEO
OUTPUT
AUDIO
OUTPUT
DVD player (or LD player)
TV tuner (or Satellite tuner)
VIDEO
INPUT
TV (monitor)
Note:
The arrows
indicate the
direction of
the signal.
Note:
The arrows
indicate the
direction of
the signal.
