Connecting Your Equipment

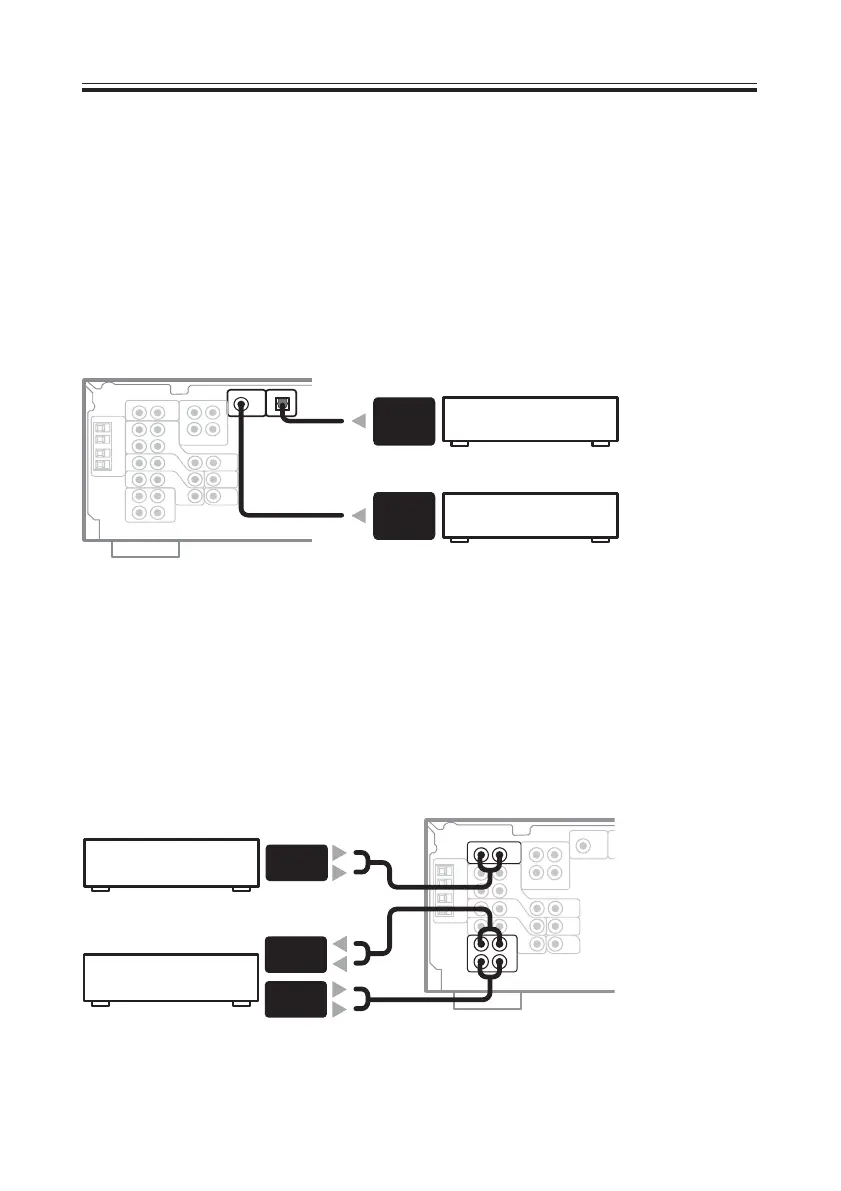

Connecting Digital Components
The easiest way to connect this receiver for surround sound is to use a digital input. You can
do this by either coaxial or optical connections (you do not need to do both). The quality of
these two types of connections is the same but since some digital components only have one
type of digital terminal, it is a matter of matching like terminals (for example, the coaxial
output from the component to coaxial input on the receiver). This receiver has two digital
inputs on the rear panel (one coaxial and one optical). Connect your digital components as
shown below.
When connecting your equipment, always make sure the power is turned off and the power
cord is disconnected from the wall outlet.
DIGITAL
OUT
(OPTICAL)
DIGITAL
OUT
(COAXIAL)
CD player
DVD player
Connecting Audio Components
For components you want to use to record, you must connect four plugs to the receiver (a set
of stereo ins and a set of stereo outs). For components that only play, you only need to
connect one set of stereo plugs. You must also connect your digital components to analog
audio jacks if you want to record to/from digital components (like an MD) to/from analog
components. See above for more on digital connections.
When connecting your equipment, always make sure the power is turned off and the power
cord is disconnected from the wall outlet.
ANALOG
OUT (PLAY)
ANALOG
IN (REC)
ANALOG
OUT
CD player
CD-R/Tape/MD Deck
Note:
The arrows
indicate the
direction of
the audio
signal.
Note:
The arrows
indicate the
direction of
the audio
signal.
