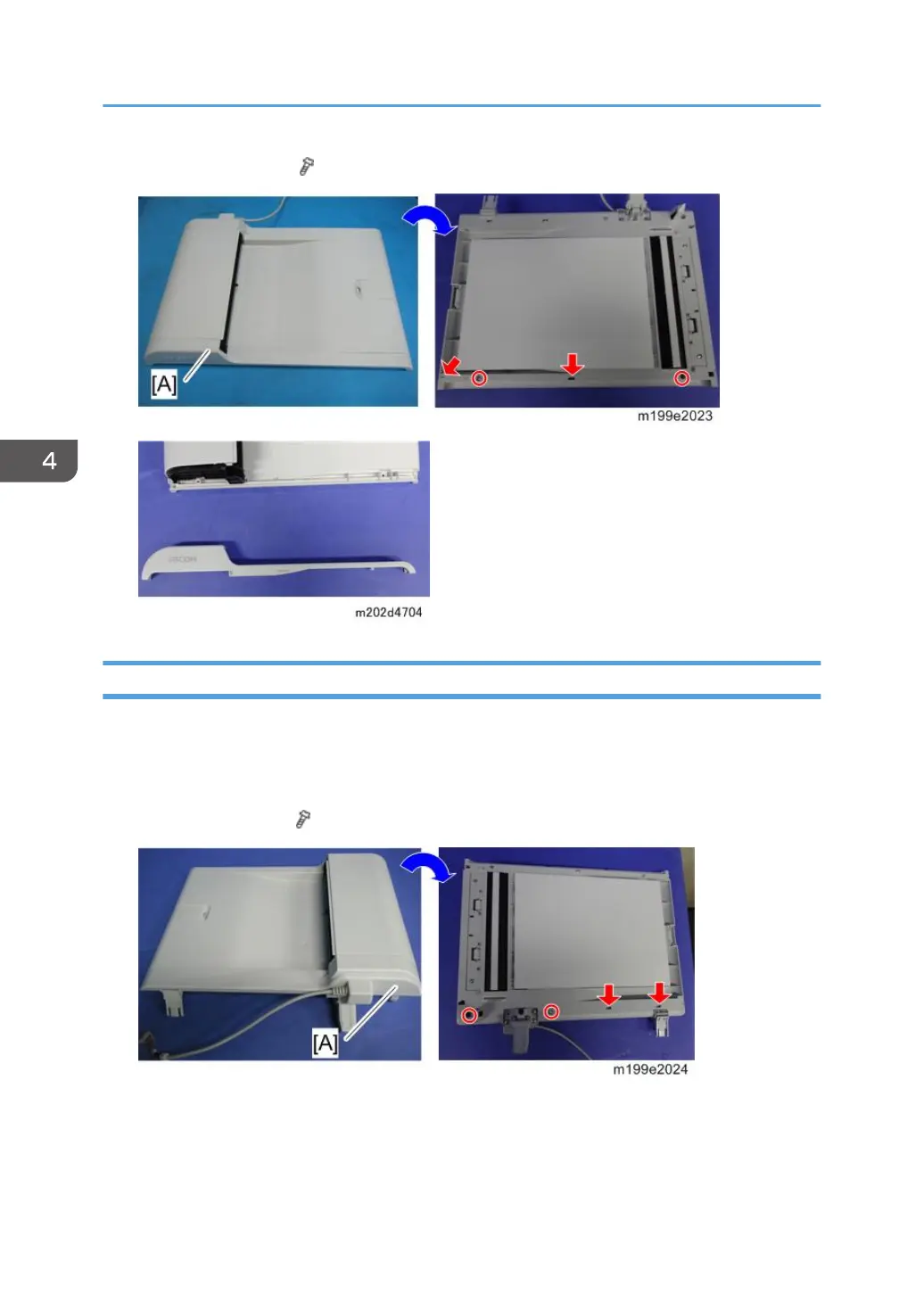

4.
ADF front cover [A] (
× 2, 2hooks)
ADF Rear Cover
1.
ADF unit (
page 42 "ADF Unit"
)
2.
Original tray (
page 43 "Original Tray"
)
3.
Turn the ADF unit over.
4.
ADF rear cover [A] (
× 2, 2hooks)
4. Replacement and Adjustment
46
47
49
Table of Contents
