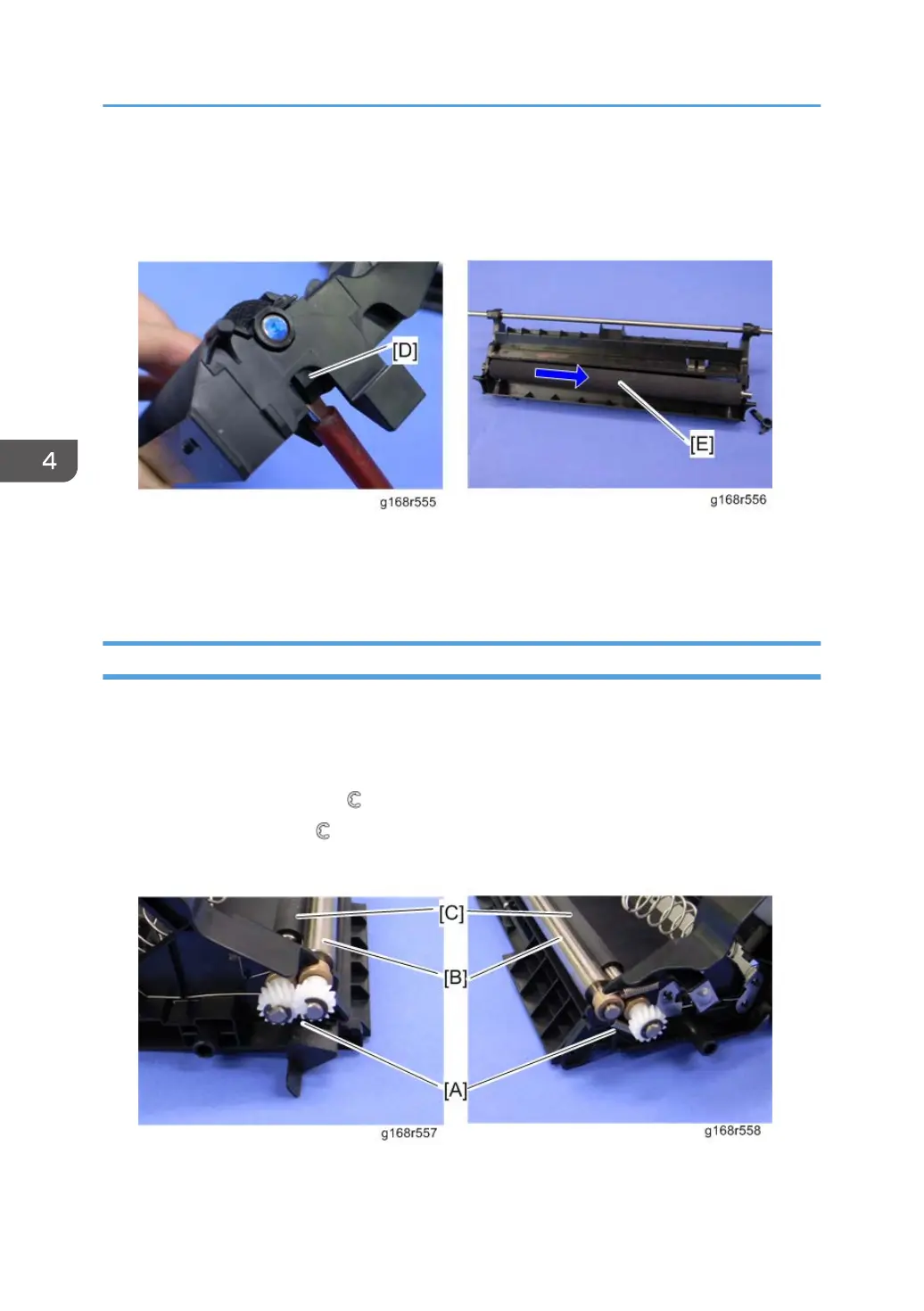

5. Release the holder [D] at the left side of the transfer roller unit (hook).
6. Transfer roller [E]
7. Execute "Reset 2nd Transfer Unit" with the "Engine Maintenance" menu (page 130
"Maintenance Mode Menu (MF Models)" or page 142 "Service Mode (Printer Models)").
Registration Roller
1. Transfer unit (page 78 "Transfer Unit")
2. Transfer roller unit (page 78 "Transfer Roller")
3. Tension springs [A] (both sides)
4. Registration idle roller [B] ( × 2, gear × 1, bushing × 2)
5. Registration roller [C] ( × 2, gear × 2, bushing × 2)
4. Replacement and Adjustment
80
