RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
3-1
Chapter 3 Application & Examples
To help the User grasping how to use the Function/ Arbitrary Waveform Generator
more efficiently, here we will giver some examples in detail.
Example 1: To Generate a Sine Wave
How to generate a Sine Waveform with 20 kHz frequency, 2.5 Vpp Amplitude and 0 Vdc
Offset.
The operation steps:
1. Set the Frequency.
(1) Press Sine Æ Freq/Period and choose Freq which will display in
reverse color;
(2) Enter “20” from the keypad and choose the unit “kHz”. The Frequency is set
as 20 kHz.
2. Set the Amplitude.
(1) Press Ampl/ HiLev to choose Ampl which will display in reverse color.
(2) Enter “2.5” from the keypad and choose the unit “V
pp”. The Amplitude is set
as 2.5V
pp.
3. Set the Offset.
(1) Press Offset /LoLev to choose Offset which will display in reverse
color.
(2) Enter “0” from the keypad and choose the unit “V
dc”, The Offset is set to be 0
V
dc.

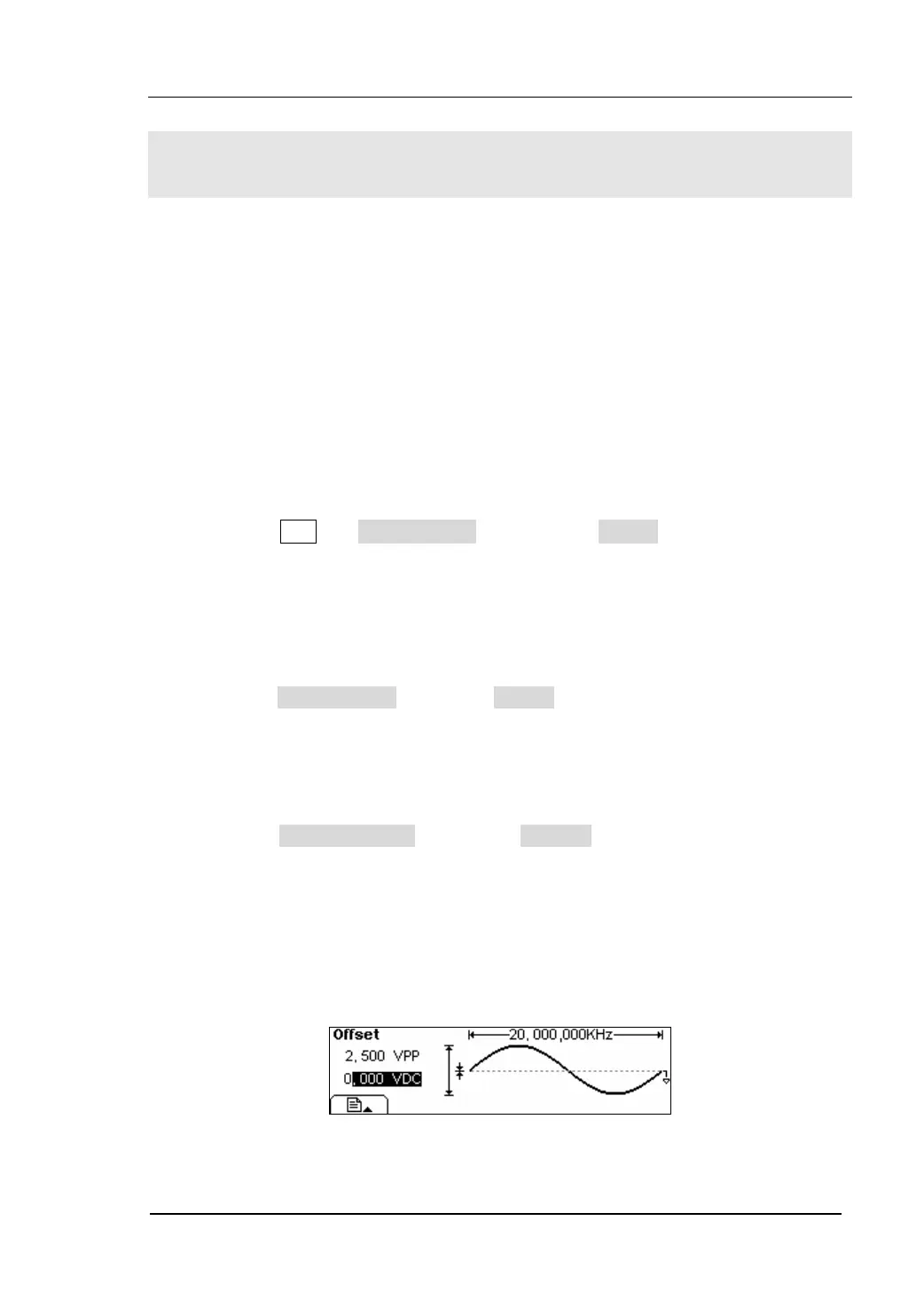

When the Frequency, Amplitude and Offset were set, the generated waveform is
shown in figure 3-1.
Figure 3-1 The Sine Waveform
