RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
3-8
Example 7: To Create an Arbitrary Waveform
How to create an arbitrary Waveform as the below figure (the Self-Defined Waveform
is Ramp).

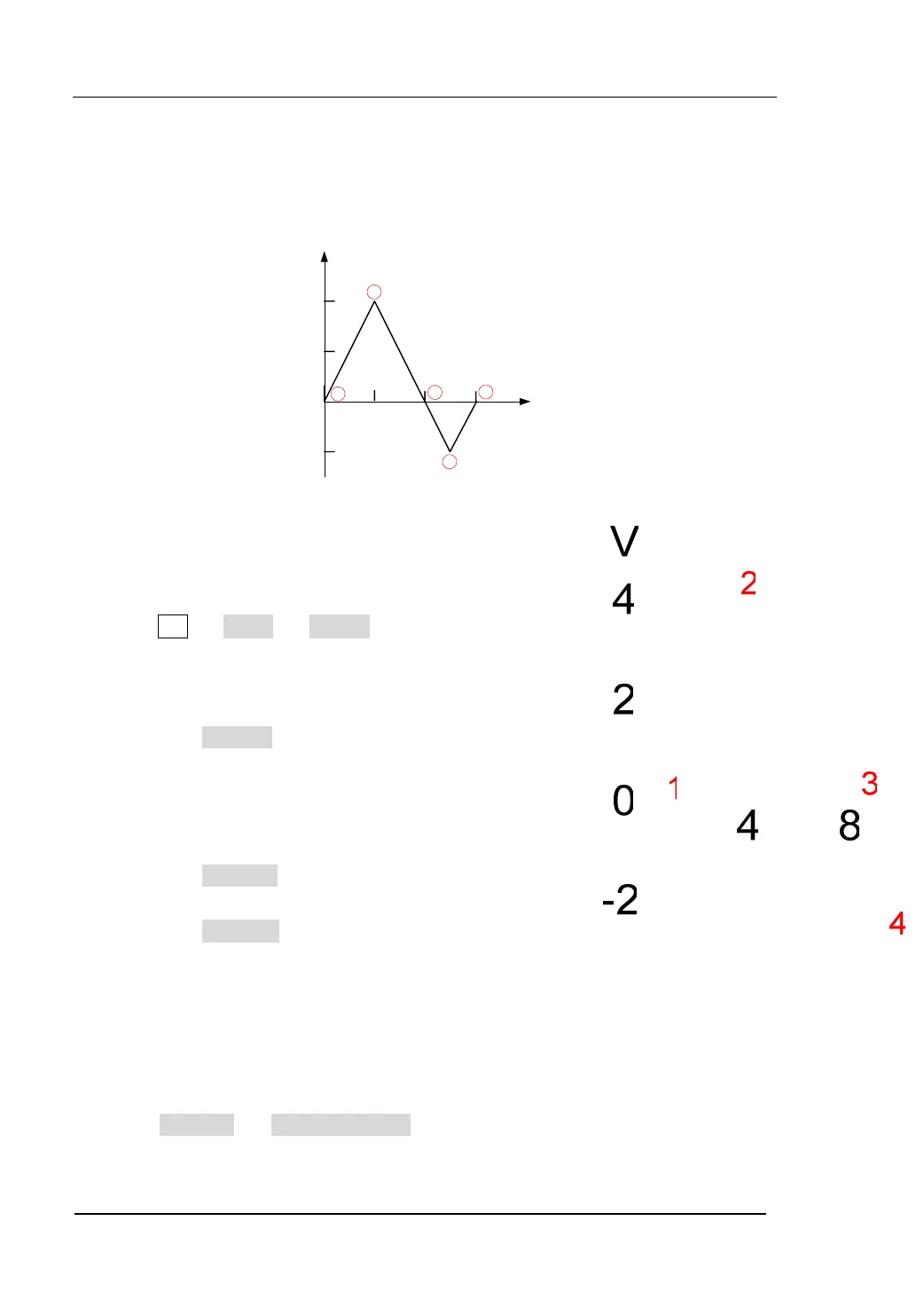

Figure 3-7 The Arbitrary Waveform
The operation steps:
1. Create a new Waveform:
Press Arb Æ Edit Æ Creat , to activate the waveform editing function. The
waveform is defined by setting the time and voltage of the points.
2. Set the period.
(1) Press Period which will display in reverse color.
(2) Input “12” from the keypad and choose the unit “μs” to set the Period as
12μs.
3. Set the Voltage Limit.
(1) Press LevelHi , and enter “4” from the keypad, choose the unit “V”, to set
the High Level as 4V.
(2) Press LevelLo , and enter “-2” from the keypad, choose the unit “V”, to set
the low Level as -2V.
4. Set the Number of the initializing Points
Set the Initializing Point Number as “4”.
5. Choose the Interpolation Method.
Press Interp. Æ Interpation On , to perform linear connection between the
points.
To Next Page
