The Menu/Graph Mode
To activate the Graph Mode
Press / A to enter the Graph Mode. The name of the current selection parameter is
shown on the top left corner of the screen, and its value is shown in inverse color. See
figure 2-1.

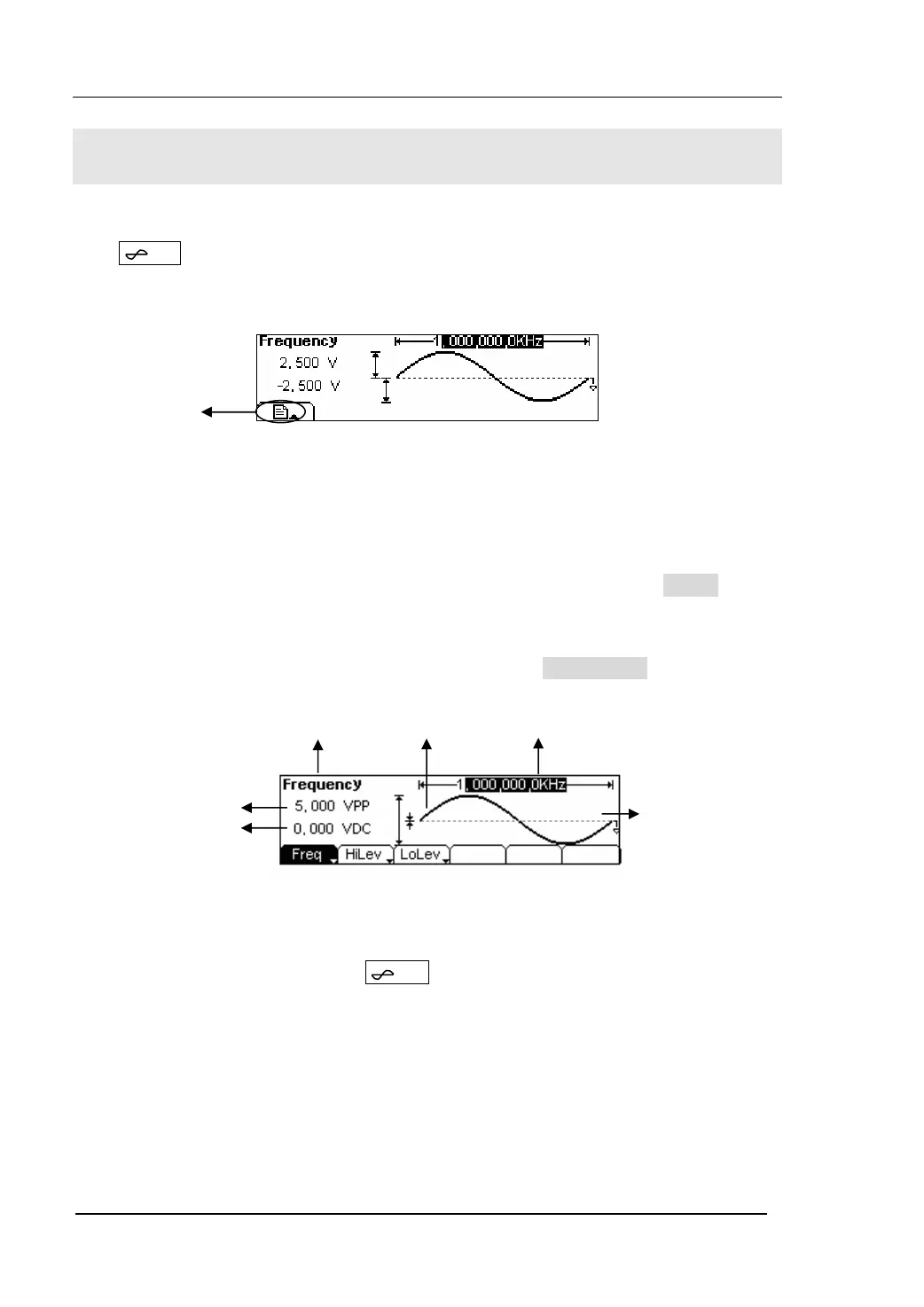

Figure 2-1 The Graph Mode Interface
To Select the Desired Parameter
To select the specific parameters, please press any menu button and the operation
menu will pop out. Press the corresponding button to set the parameter. For example,
if you want to change the frequency, press any menu button and select Freq menu.
The direction button will help you find your desired parameter and change its value
with the knob or the keypad, see figure 2-2. Under the Graph Mode, the parameters
will still switch at a second press on the button, such as Amp/HiLev .
Figure 2-2 Setting the parameters in the Graph Mode
To Quit the Graph Mode
To quit the Graph Mode, press the / A again and return the Menu Mode.
Display Menu
Button
Amp
Offset
Frequency
Output
Operation
Menu
Current
Parameter
