User’s Guide for DG2000 Series
2-3

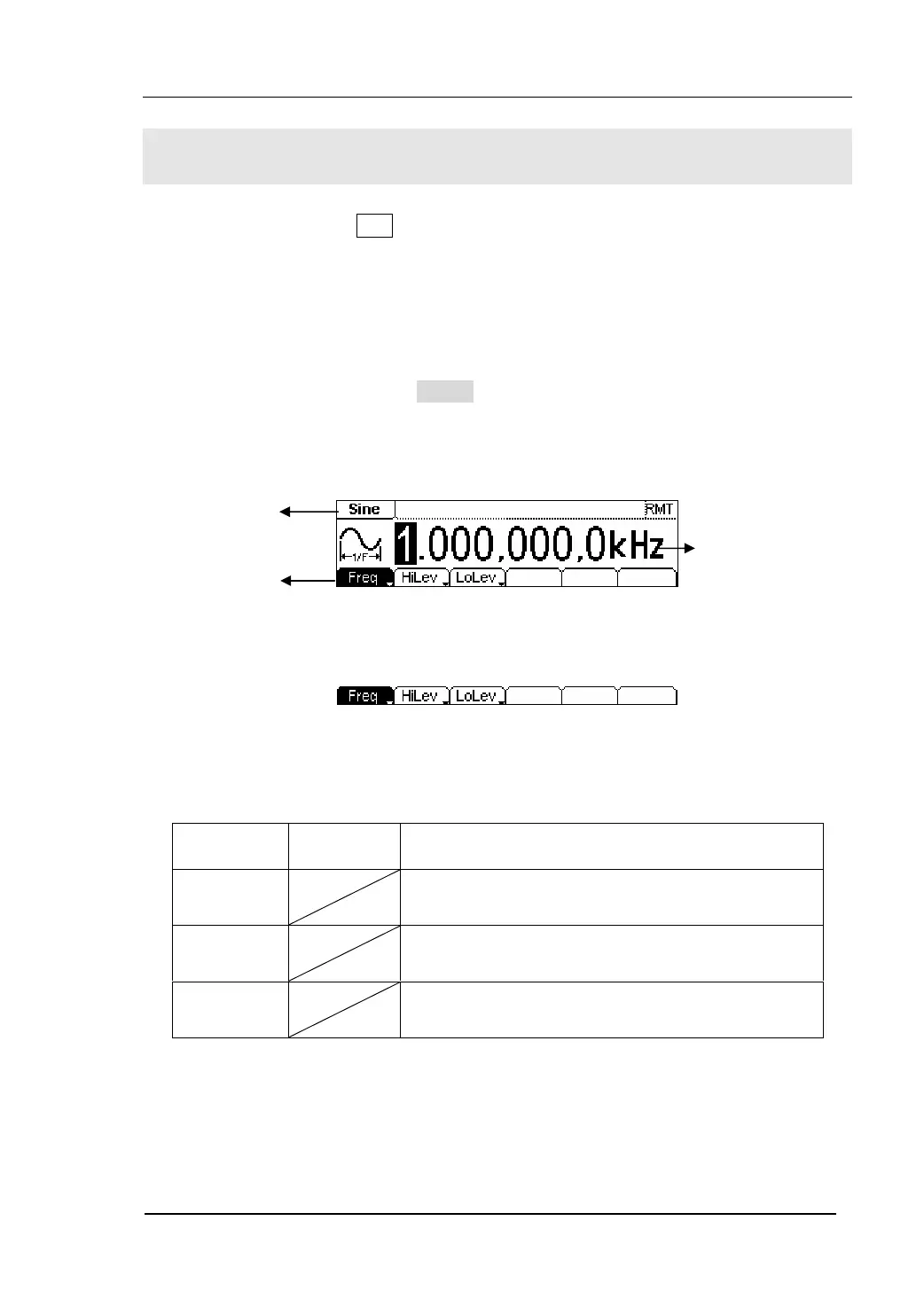

To Set Sine Signals
In the Menu Mode, press Sine button to call the Sine operation. The top left corner of
the screen will show the name of the current waveform, see figure 2-3. The output
Sine waveform parameters are set by using the Sine operation menu.
The parameters for Sine waveforms are: Frequency/ Period, Amplitude/ High Level,
Offset/ Low Level. Different Sine Signals are generated by setting these parameters. As
is shown in figure 2-4, select Freq in the operation menu and the frequency
parameter will show in the parameter area. then Users can change the frequency value
by using the direction button and the knob or the keypad.
Figure 2-3 The Setting Interface of Sine Signal Parameter
Figure 2-4 The Operation Menu
Table 2-1 The Menu Explanations of Sine Signal
Function
Menu
Settings Explanation
Frequency/
Period
Setting the signal frequency or period; the
current parameter will switch at a second press.
Amplitude/
High Level
Setting the signal Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal Offset or Low Level; the current
parameter will switch at a second press
Output
Waveform
Operation Menu:
Controlled and
Operated by
menu button
Current
Parameter
