To Set Arbitrary Signals
Press Arb button, in the Normal Mode, the operation menu will appear at the bottom of
the screen, see figure 2-25. Set the Arbitrary Waveform parameters by using the
operation menu.
Arbitrary Signals are divided into two categories: the built-in optional system
waveforms and the user-defined arbitrary waveforms. The parameters for Arbitrary
Waveforms are: Frequency/ Period, Amplitude/ High Level and Offset/ Low Level. See
figure 2-26. In the operation menu, select Freq , and the corresponding frequency
will be displayed in inverse color for which users can make a change.

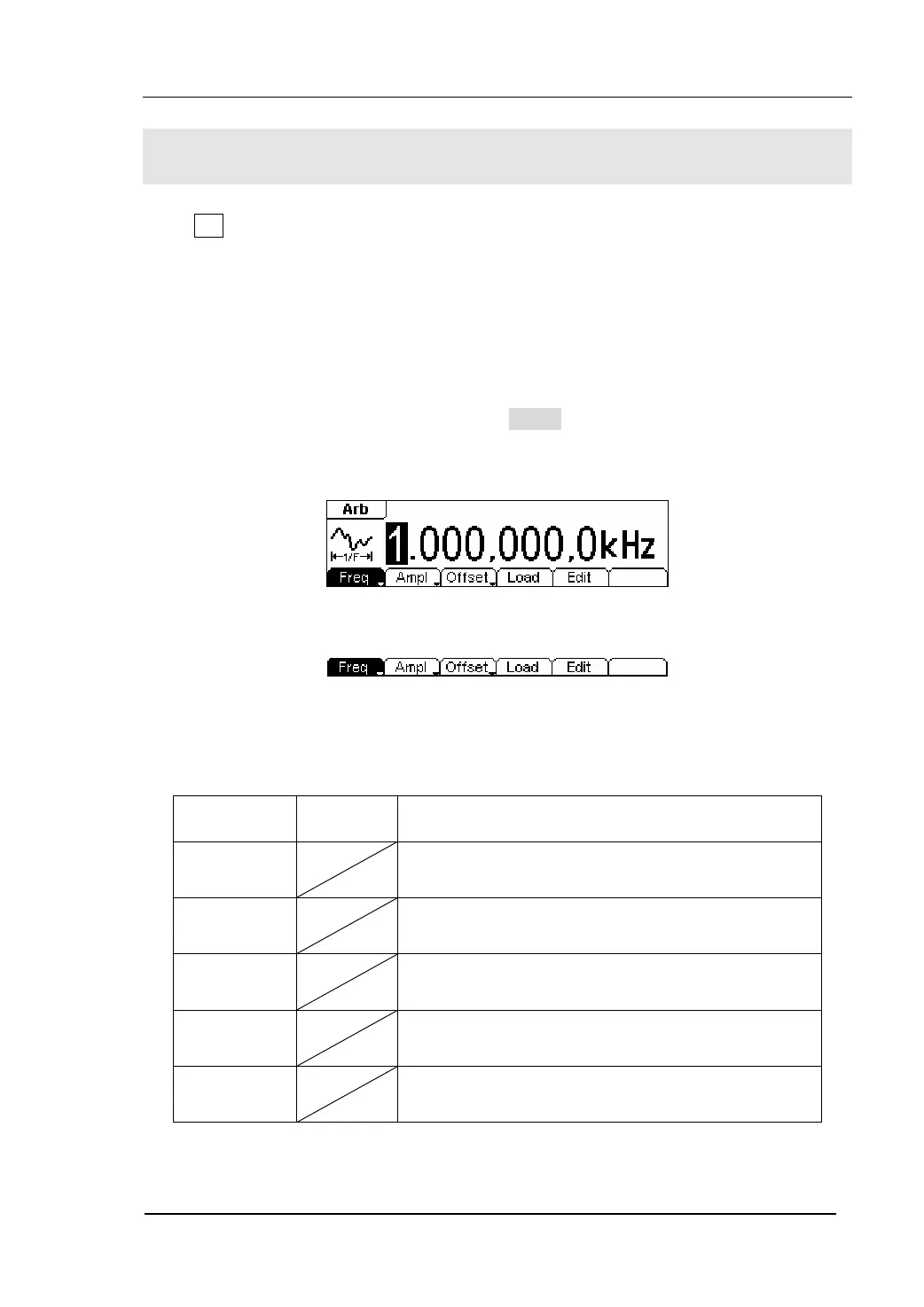

Figure 2-25 The Setting Interface of Arbitrary Signal
Figure 2-26 The Operation Menu
Table 2-6 The Menu Explanations of Arbitrary Signal
Function
Menu
Settings Explanation
Frequency/
Period
Setting the signal frequency or period; the current
parameter will switch at a second press.
Amplitude/
High Level
Setting the signal Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal Offset or Low Level; the current
parameter will switch at a second press.
Load Select the built-in Arbitrary Signal for Output.
Edit Create and Edit Arbitrary Waveform.
