User’s Guide for DG2000 Series
3-6
Example 5: To Generate a Noise Wave
How to generate a Noise waveform with 30mVpp Amplitude (50Ω) and 10mVdc Offset.
The operation steps:
1. Set the Output Load.
Press Utility Æ Output Æ Load/High Z Æ Load , set the output load as 50Ω.
2. Set the Amplitude.
(1) Press Ampl/ HiLev and choose Ampl which will display in reverse color.
(2) Enter “30” from the keypad and choose the unit “mV
pp” to set the Amplitude
as 30mV
pp.
3. Set the Offset.
(1) Press Offset/ LoLev to choose Offset which will display in reverse
color.
(2) Enter “10” from the keypad and choose the unit” mV
dc” to set the Offset as
10mV
dc .

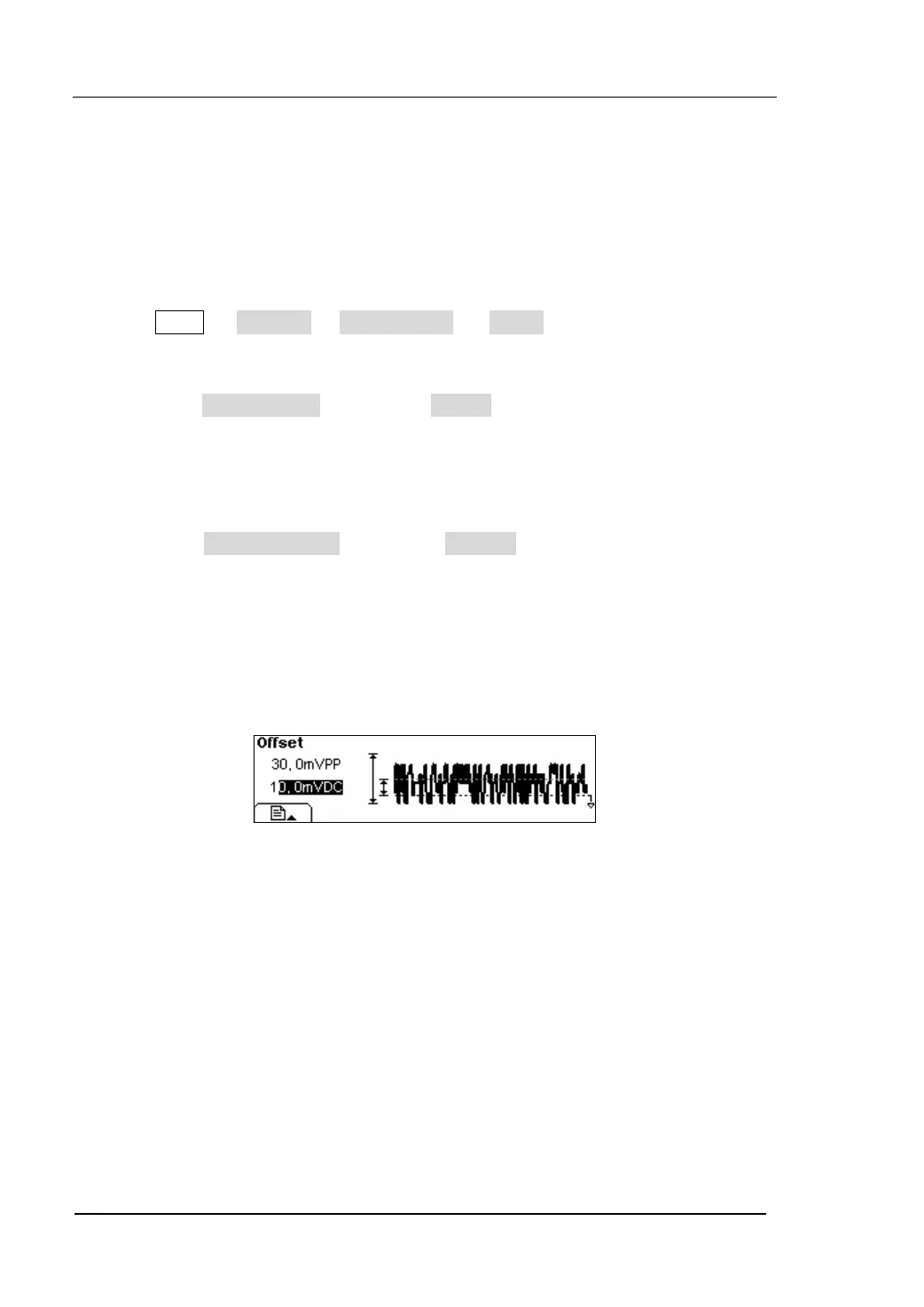

When the Amplitude and Offset were set, the generated waveform is shown in figure
3-5.
Figure 3-5 The Noise Waveform
