RIGOL
© 2006 RIGOL Technologies, Inc
User’s Guide for DG2000 Series
3-7
Example 6: To generate Arbitrary Waveform
How to generate an arbitrary waveform (Sinc) with 8MHz Frequency, 5Vrms Amplitude
and 0 V
dc Offset.
The operation steps:
1. Set the Type of the Arbitrary Waveform.
(1) Press Arb Æ Load , to choose the built-in waveform.
(2) Press BuiltIn Æ Sinc , there are five built-in arbitrary waveforms.
Choose Sinc, and press any key to return the Main Menu of Arb.
2. Set the Frequency.
(1) Press Freq/Period and choose Freq which will display in reverse color.
(2) Input “8” from the keypad and choose the unit “MHz” to set the Frequency as
8MHz.
3. Set the Amplitude.
(1) Press Ampl/ HiLev and choose Ampl which will display in reverse color.
(2) Enter “5” from the keypad and choose the unit “V
rms ” to set the Amplitude as
5 V
rms .
4. Set the Offset.
(1) Press Offset /LoLev to choose Offset which will display in reverse
color.
(2) Enter “0” from the keypad and choose the unit “V
dc” to set the Offset as 0
V
dc.
When the Type of the Arbitrary Waveform, Frequency, Amplitude and Offset were set,
the generated waveform is shown in figure 3-6.

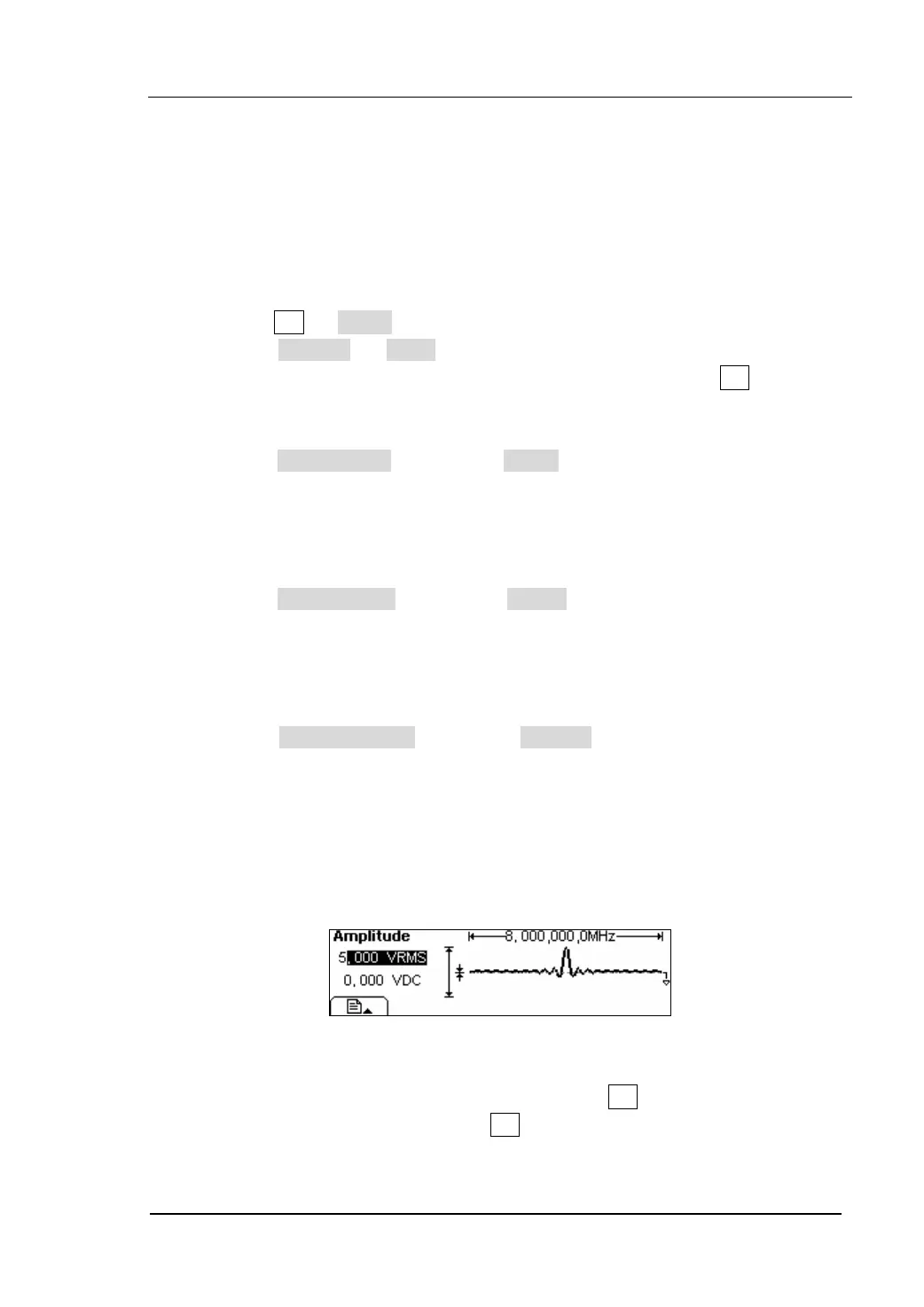

Figure 3-6 The Sinc Waveform
Right now, the selected waveform is appointed to Arb. This waveform will be
generated once the key is pressed. Press Arb to make sure which kind of waveform is
selected.
