User’s Guide for DG2000 Series
2-10

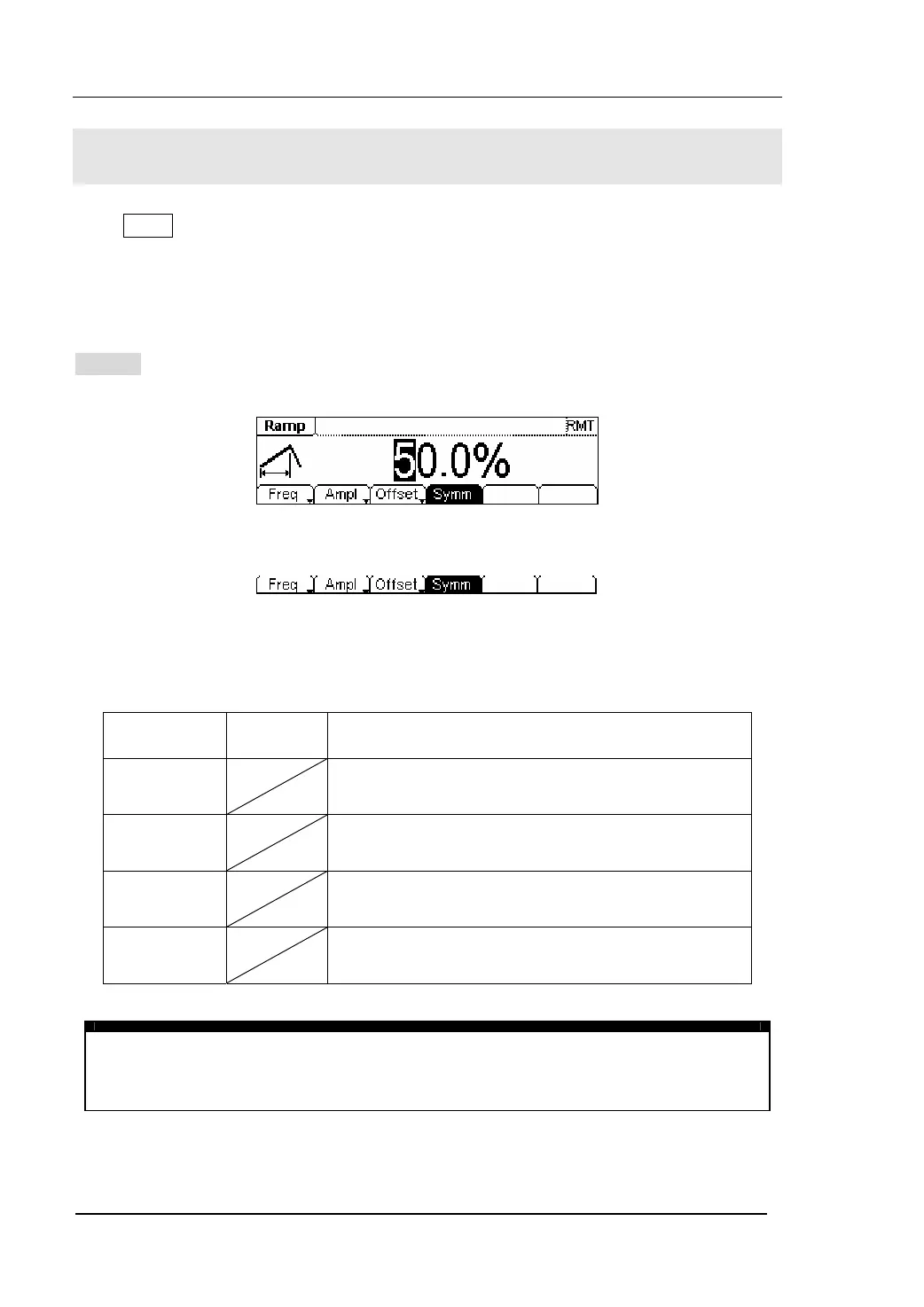

To Set Ramp Signals
Press Ramp button, in the Normal Mode, the operation menu will appear at the bottom
of the screen, see figure 2-13. Set the Ramp parameters by using the operation menu.
The parameters for Ramp waveforms are: Frequency/ Period, Amplitude/ High Level,
Offset/ Low Level and Symmetry. See figure 2-14. In the operation menu, select
Symm , and the corresponding parameter will be displayed in inverse color for which
users can make a change.
Figure 2-13 The Setting Interface of Ramp Signal
Figure 2-14 The Operation Menu
Table 2-3 The Menu Explanations of Ramp Signal
Function
Menu
Settings Explanation
Frequency/
Period
Setting the signal frequency or period; the current
parameter will switch at a second press.
Amplitude/
High Level
Setting the signal Amplitude or High Level; the
current parameter will switch at a second press.
Offset/Low
Level
Setting the signal Offset or Low Level; the current
parameter will switch at a second press
Symmetry Setting the Symmetry for Ramp Waveform
Term Explanation:
Symmetry: The percentage that the Rising Period takes up in the whole Period.
Input Range: 0~100%
