2.4.2.3 Chan Pwr

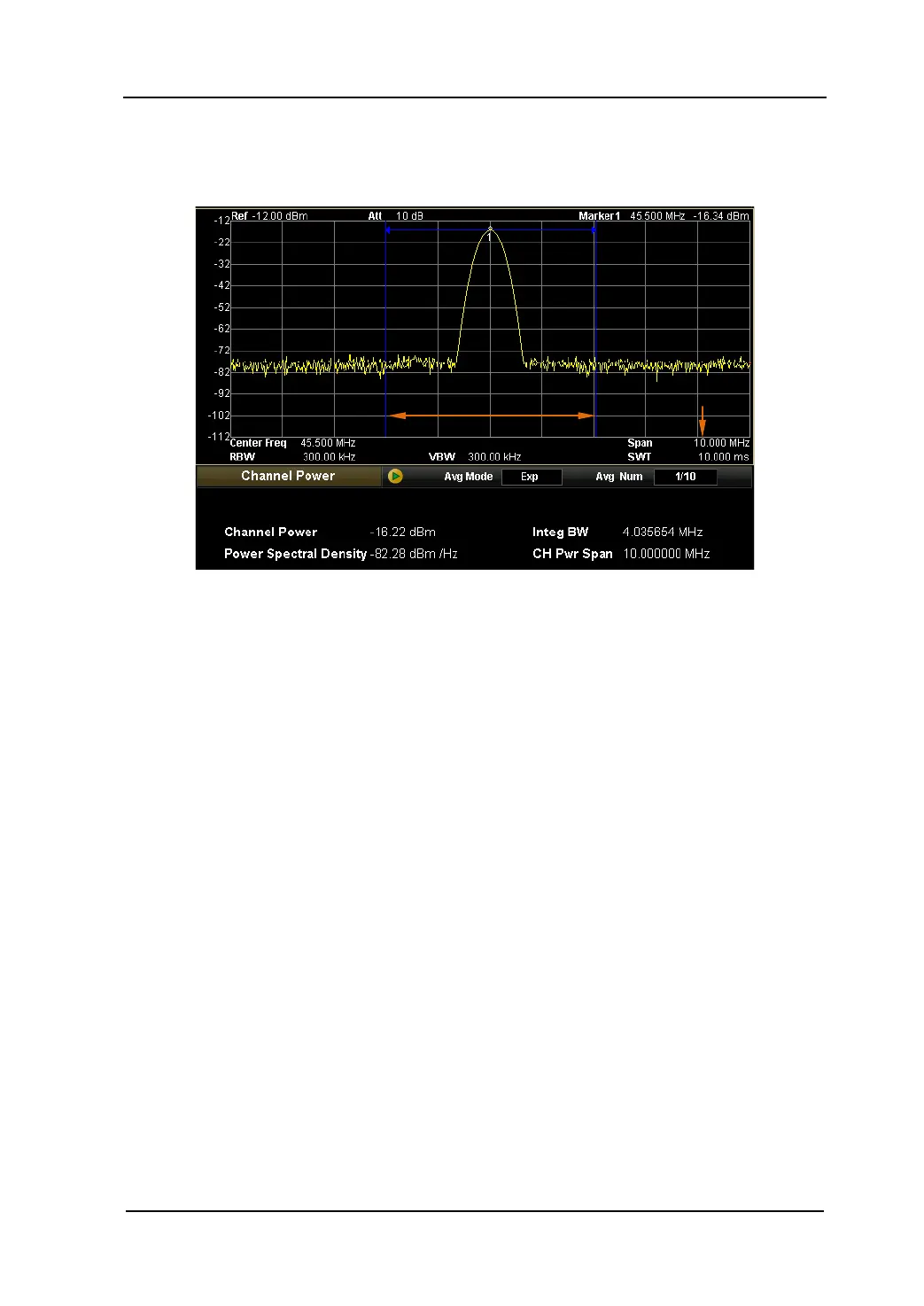

Figure 2-17 Interface of Chan Pwr measurement
Result:
The results under Chan Pwr measurement contain Channel Power and Power Spectral
Density.
 Channel Power: the power within the integral bandwidth.
 Power Spectral Density: the power which is normalized to 1 Hz within the integral
bandwidth (Unit is dBm/Hz).
Parameters:
In this mode, setting parameters are Avg Num, Avg Mode, Integ BW and Ch Pwr Span.
1. Avg Num
Sets the average number for the measurement, the default is Off.
You can use the numeric keys, knob or direction keys to modify this parameter.
For more details, please refer to “Parameter Input”.
Integ BW CH Pwr Span
