RIGOL Quick Start
1-8 User’s Guide for DSA1000 Series
1.1.3 Front Panel Connector

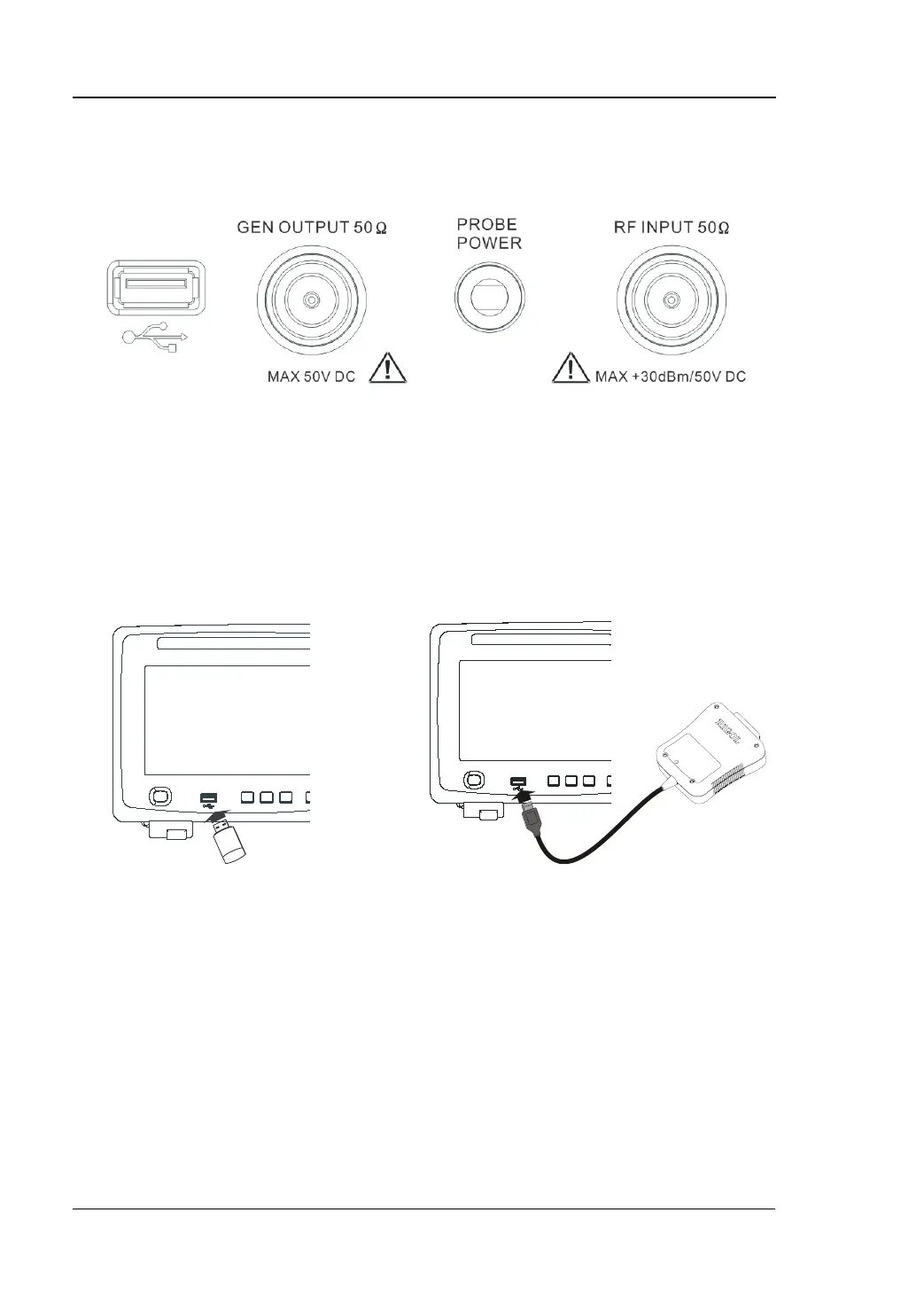

Figure 1-3 Front Panel Connectors
1. USB Host
The analyzer may serve as a “host” device to connect to external USB devices.
This interface is available for USB storage devices and the USB-GPIB module. See
the following connections:
USB storage device connection GPIB extended connection
Figure 1-4 USB Host interface connections
2. GEN OUTPUT 50Ω
The output of the tracking generator can be connected to a receiver through an N
male connector, see figure below. Note that the tracking generator is valid only
when the instrument is DSA1030-TG.
