RIGOL Chapter 6 Operations and Measurements
6-36 MSO5000-E User Guide
reference is negative. The area measured is the algebraic sum of the whole
period area.
Measurement Settings
1． Measurement Category

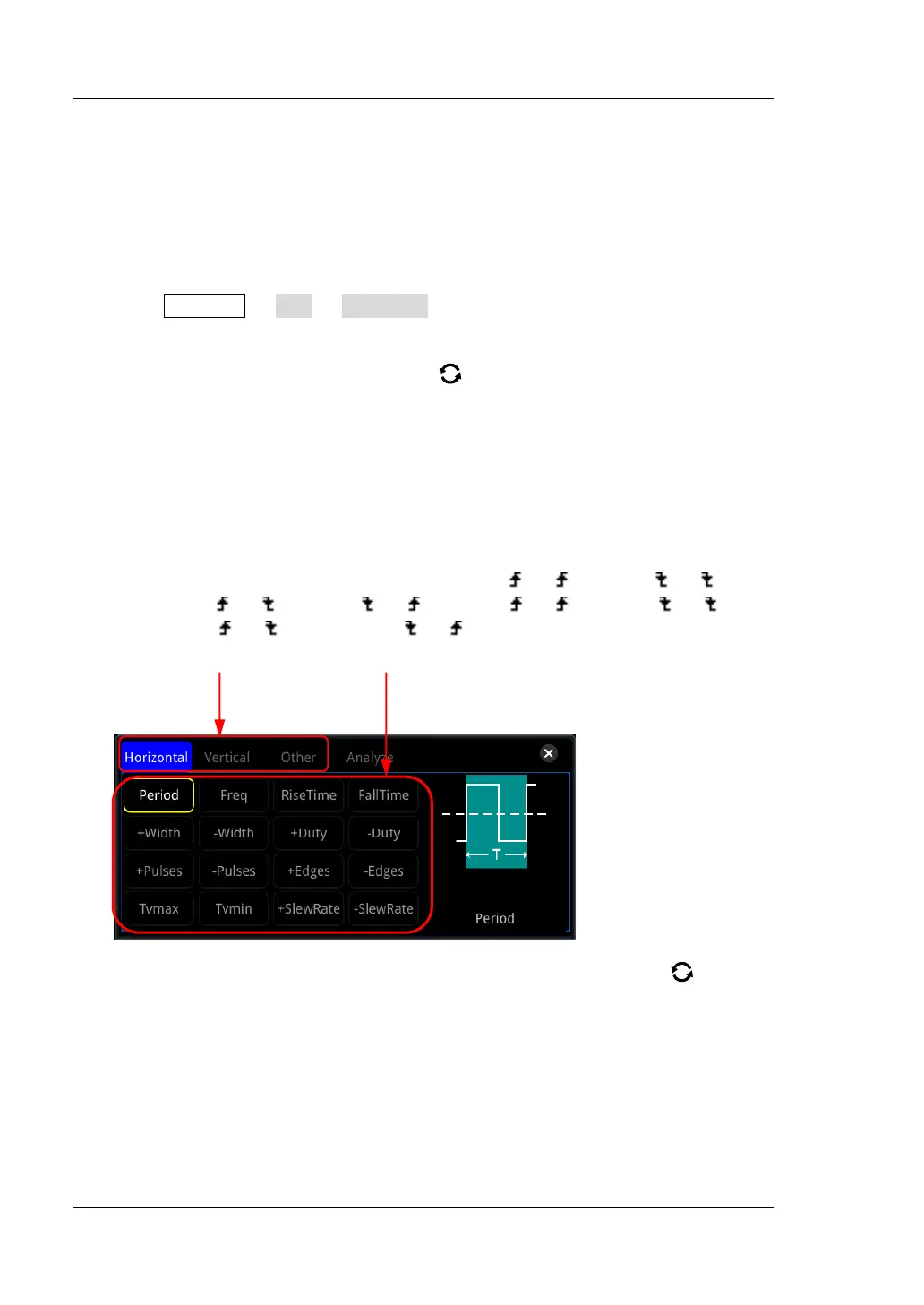

Press Measure → Add → Category to select "Horizontal", "Vertical", or
"Other". Meanwhile, the specific measurement parameters are displayed on the
screen, as shown in the figure below. In the measurement category area, you
can also rotate the multifunction knob to select "Horizontal", "Vertical", or
"Other". Then press down the knob to switch to the desired measurement
category.
âš« "Horizontal" measurement parameters: Period, Freq, RiseTime, FallTime,
+Width, -Width, +Duty, -Duty, +Pulses, -Pulses, +Edges, -Edges, Tvmax,
Tvmin, +SlewRate, and –SlewRate.
âš« "Vertical" measurement parameters: Vmax, Vmin, Vpp, Vtop, Vbase, Vamp,
Vmid, Vlower, Vavg, VRMS, Per.VRMS, Overshot, Preshoot, Area, Per.Area,
and Variance.
⚫ "Other" measurement parameters: Delay(A →B ), Delay(A →B ),
Delay(A →B ), Delay(A →B ), Phase(A →B ), Phase(A →B ),
Phase(A →B ), and Phase(A →B ).
In the measurement parameter area, rotate the multifunction knob to select
a measurement item and then press down the knob to select it. Then the
measurement results of the item are displayed at the bottom of the screen
(measurement results of up to 10 items can be displayed at most). When you
add a new measurement item, its measurement result will be displayed as the
first, with the original items moving right in sequence. If the number of
measurement items added exceeds 10, then when you add one item, the
rightmost item at the bottom of the screen will be disabled. You can also enable
the touch screen to select the measurement category and the measurement
To Next Page
